SMI晶振,86M0368 -16,86SMX進口晶振,6G相關設備晶振,SMI晶振,86SMX進口晶振,86M0368-16晶振,無源晶振,石英貼片晶振,頻率3.6864MHz,負載16pF,工作溫度-20~70°C,頻率容差50ppm,低成本晶振,無鉛環保晶振,6G相關設備晶振,藍牙音響晶振,千兆以太網晶振,攝像機和視頻設備晶振.

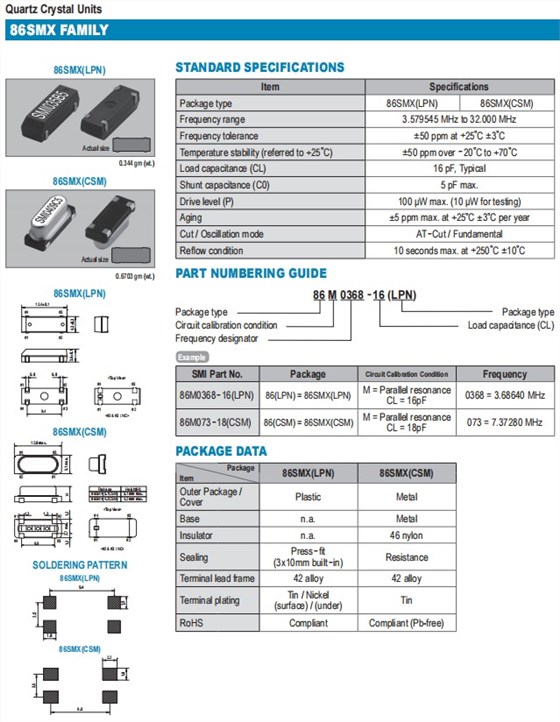

SMI晶振,86M0368-16,86SMX進口晶振,6G相關設備晶振規格表
參數
數值
封裝
86SMX
頻率
3.6864MHz
頻率容差@ 25°C ± 3°C
±50ppm
頻率穩定度
±50ppm
工作溫度
-20~70°C
負載
16pF
并聯電容
5pF Max
驅動電平
老化@ 25°C ± 3°C

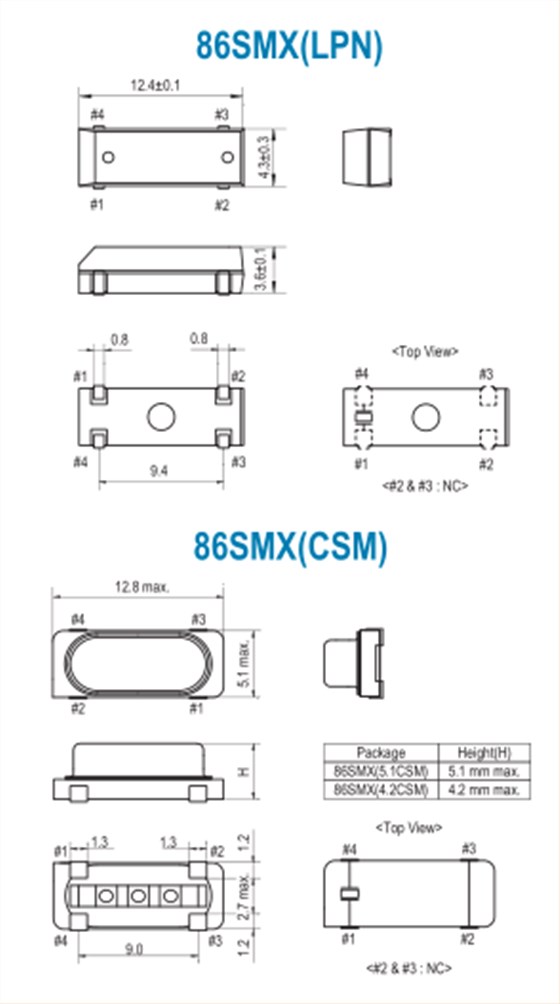

SMI晶振,86M0368-16,86SMX進口晶振,6G相關設備晶振尺寸圖
