SG7050VAN 650.000000M-KCBAB日本進口LVDS差分晶振,愛普生6G通訊基站晶振
頻率：650MHZ
尺寸：7050
SG7050VAN 650.000000M-KCBAB日本進口LVDS差分晶振,愛普生6G通訊基站晶振,日本進口石英晶體振蕩器,SG7050VAN晶振,SG7050VAN 650.000000M-KCBAB晶振，7050晶振，六腳晶振，EPSON晶振，高頻晶振，高精度晶振，6G通訊基晶振，光模塊晶振，工業級差分晶振，交換機晶振，6G室外設備晶振
訂購熱線：0755-27876565
SG7050VAN 650.000000M-KCBAB日本進口LVDS差分晶振,愛普生6G通訊基站晶振,日本進口石英晶體振蕩器,SG7050VAN晶振,SG7050VAN 650.000000M-KCBAB晶振，EPSON晶振，7050晶振，六腳晶振，高頻晶振，高精度晶振，6G通訊基晶振，光模塊晶振，工業級差分晶振，交換機晶振，6G室外設備晶振
SG7050VAN 650.000000M-KCBAB日本進口LVDS差分晶振,愛普生6G通訊基站晶振

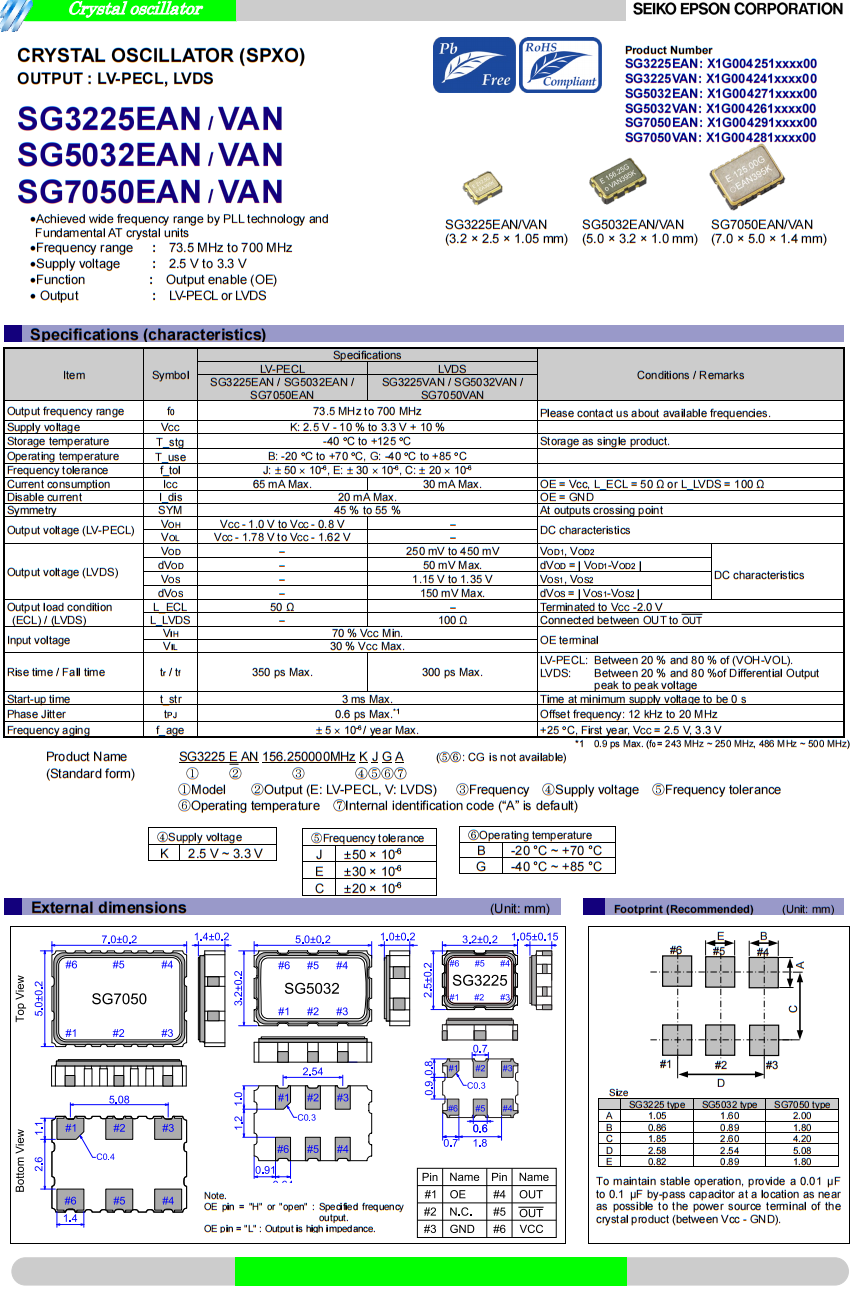

| 參數 | 符號 | 規格說明 | 條件 | ||
| LV-PECL | LVDS | ||||
|
SG3225EAN / SG5032EAN / SG7050EAN |
SG3225VAN / SG5032VAN / SG7050VAN |
||||
| 輸出頻率范圍 | 0 |
 73.5MHz ~ 700 MHz
|
請聯系我們以便獲取其它可用頻率的相關信息 | ||
| 電源電壓 | VCC | K: 2.5V ~ 3.3V | VCC= 10% | ||
| 儲存溫度范圍 | T_stg | -40 oC ~ +125 oC | 裸存 | ||
| 工作溫度范圍 | T_use | B: -20 oC ~ +70 oC, G: -40 oC ~ +85 oC | |||
| 頻率穩定度 | f_tol |
    J: 50 10-6 , E: 30 10-6 , C: 20 10-6
|
|||
| 功耗 | ICC | 65 mA Max. | 30 mA Max. | OE=Vcc, L_ECL=50 or L_LVDS=100 | |
| 輸出禁用電流 | I_dis | 20 mA Max. | OE=GND | ||
| 占空比 | SYM | 45 % ~ 55 % | 在輸出交叉點 | ||
| 輸出電壓(LV-PECL) | VOH | VCC-1.0 V ~ VCC-0.8 V | 一 | DC 特征 | |
| VOL | VCC-1.78 V ~ VCC-1.62 V | 一 | |||
| 輸出電壓(LVDS) | VOD | 一 | 250 mV ~ 450mV | VOD1 , VOD2 | DC 特征 |
| dVOD | 一 | 50 mV Max. | dVOD = VOD1-VOD2 | ||
| VOS | 一 | 1.15 V ~ 1.35 V | VOS1 , VOS2 | ||
| dVOS | 一 | 150 mV Max. | dVOS = VOS1-VOS2 | ||
|
輸出負載條件 (ECL) / (LVDS) |
L_ECL | 50 | 一 | 終止于 VCC -2.0 V | |
| L_LVDS | 一 | 100 | 連接到 OUT 與 OUT 之間 | ||
| 輸入電壓 | VIH | 70 % VCC Min. | OE 終端 | ||
| VIL | 30 % VCC Max. | ||||
| 上升/下降時間 | tr / tf | 350 ps Max. | 300 ps Max. |
20% ~ 80% (VOH-VOL). 20% ~ 80% 微分輸出 峰-峰值 |
|
| 振蕩啟動時間 | t_str |
 3 ms Max.
|
在電源電壓最低時，所需時間為 0 秒 | ||
| 相位抖動 |
 PJ
|
0.6 ps Max.*1 | 抵消頻率: 12 kHz ~ 20 MHz | ||
| 頻率老化 | f_aging | 5 10-6 / year Max. | +25 oC, 第一年, VCC=2.5 V,3.3 V | ||
SG7050VAN 650.000000M-KCBAB日本進口LVDS差分晶振,愛普生6G通訊基站晶振
| 愛普生原廠編碼 | 生產商品牌 | 型號 | 類型 | 頻率 | 輸出類型 | 電壓 | 頻率偏差度 |
| SG7050EEN 156.2500M-CJGA3 | EPSON | SG7050EEN | XO (Standard) | 156.25 MHz | LVPECL | 3.3V | ±50ppm |
| SG7050EEN 156.2500M-CDGA3 | EPSON | SG7050EEN | XO (Standard) | 156.25 MHz | LVPECL | 3.3V | ±25ppm |
| SG7050EAN 125.000000M-KEGA3 | EPSON | SG7050 | XO (Standard) | 125 MHz | LVPECL | 2.5V ~ 3.3V | ±30ppm |
| SG7050EAN 250.000000M-KEGA3 | EPSON | SG7050 | XO (Standard) | 250 MHz | LVPECL | 2.5V ~ 3.3V | ±30ppm |
| SG7050EAN 200.000000M-KEGA3 | EPSON | SG7050 | XO (Standard) | 200 MHz | LVPECL | 2.5V ~ 3.3V | ±30ppm |
| SG7050EEN 100.0000M-DJGA | EPSON | SG7050EEN | XO (Standard) | 100 MHz | LVPECL | 2.5V | ±50ppm |
| SG7050EAN 150.000000M-KEGA3 | EPSON | SG7050 | XO (Standard) | 150 MHz | LVPECL | 2.5V ~ 3.3V | ±30ppm |
| SG7050EAN 156.250000M-KJGA0 | EPSON | SG7050EAN | XO (Standard) | 156.25 MHz | LVPECL | 2.5V ~ 3.3V | ±50ppm |
| SG7050EAN 50.000000M-KJGBB | EPSON | SG7050EAN | XO (Standard) | 50 MHz | LVPECL | 2.5V ~ 3.3V | ±50ppm |
| SG7050EAN 61.440000M-KJGBB | EPSON | SG7050EAN | XO (Standard) | 61.44 MHz | LVPECL | 2.5V ~ 3.3V | ±50ppm |
| SG7050EBN 100.000000M-CJGAB | EPSON | SG7050EBN | XO (Standard) | 100 MHz | LVPECL | 3.3V | ±50ppm |
| SG7050EBN 100.000000M-DJGAB | EPSON | SG7050EBN | XO (Standard) | 100 MHz | LVPECL | 2.5V | ±50ppm |
| SG7050EBN 106.250000M-CJGA3 | EPSON | SG7050EBN | XO (Standard) | 106.25 MHz | LVPECL | 3.3V | ±50ppm |
| SG7050EBN 114.285000M-CJGAB | EPSON | SG7050EBN | XO (Standard) | 114.285 MHz | LVPECL | 3.3V | ±50ppm |
| SG7050EBN 122.880000M-CJGAB | EPSON | SG7050EBN | XO (Standard) | 122.88 MHz | LVPECL | 3.3V | ±50ppm |
| SG7050EBN 125.000000M-CJGAB | EPSON | SG7050EBN | XO (Standard) | 125 MHz | LVPECL | 3.3V | ±50ppm |
| SG7050EBN 125.000000M-DJGAB | EPSON | SG7050EBN | XO (Standard) | 125 MHz | LVPECL | 2.5V | ±50ppm |
| SG7050EBN 150.000000M-CJGA3 | EPSON | SG7050EBN | XO (Standard) | 150 MHz | LVPECL | 3.3V | ±50ppm |
| SG7050EBN 155.520000M-CJGA3 | EPSON | SG7050EBN | XO (Standard) | 155.52 MHz | LVPECL | 3.3V | ±50ppm |
| SG7050EBN 156.250000M-CJGA0 | EPSON | SG7050EBN | XO (Standard) | 156.25 MHz | LVPECL | 3.3V | ±50ppm |
| SG7050EBN 156.250000M-CJGAB | EPSON | SG7050EBN | XO (Standard) | 156.25 MHz | LVPECL | 3.3V | ±50ppm |
| SG7050VAN 50.000000M-KEGBB | EPSON | SG7050VAN | XO (Standard) | 50 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG7050VAN 50.000000M-KJGB3 | EPSON | SG7050VAN | XO (Standard) | 50 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG7050VAN 50.000000M-KJGBB | EPSON | SG7050VAN | XO (Standard) | 50 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG7050EBN 100.000000M-CJGA3 | EPSON | SG7050EBN | XO (Standard) | 100 MHz | LVPECL | 3.3V | ±50ppm |
| SG7050EBN 100.000000M-DJGA3 | EPSON | SG7050EBN | XO (Standard) | 100 MHz | LVPECL | 2.5V | ±50ppm |
| SG7050EBN 114.285000M-CJGA3 | EPSON | SG7050EBN | XO (Standard) | 114.285 MHz | LVPECL | 3.3V | ±50ppm |
| SG7050EBN 125.000000M-CJGA3 | EPSON | SG7050EBN | XO (Standard) | 125 MHz | LVPECL | 3.3V | ±50ppm |
| SG7050EBN 125.000000M-DJGA3 | EPSON | SG7050EBN | XO (Standard) | 125 MHz | LVPECL | 2.5V | ±50ppm |
| SG7050EBN 156.250000M-CJGA3 | EPSON | SG7050EBN | XO (Standard) | 156.25 MHz | LVPECL | 3.3V | ±50ppm |
| SG7050EEN 100.0000M-DJGA3 | EPSON | SG7050EEN | XO (Standard) | 100 MHz | LVPECL | 2.5V | ±50ppm |
| SG7050EEN 156.2500M-CJGAB | EPSON | SG7050EEN | XO (Standard) | 156.25 MHz | LVPECL | 3.3V | ±50ppm |
| SG7050EEN 125.0000M-CJGAB | EPSON | SG7050EEN | XO (Standard) | 125 MHz | LVPECL | 3.3V | ±50ppm |
| SG7050EEN 100.0000M-CJGAB | EPSON | SG7050EEN | XO (Standard) | 100 MHz | LVPECL | 3.3V | ±50ppm |
| SG7050EEN 122.8800M-CJGAB | EPSON | SG7050EEN | XO (Standard) | 122.88 MHz | LVPECL | 3.3V | ±50ppm |
| SG7050EEN 156.253906M-CJGAB | EPSON | SG7050EEN | XO (Standard) | 156.253906 MHz | LVPECL | 3.3V | ±50ppm |
| SG7050EEN 100.0000M-DJGAB | EPSON | SG7050EEN | XO (Standard) | 100 MHz | LVPECL | 2.5V | ±50ppm |
| SG7050EEN 50.0000M-DJGA | EPSON | SG7050EEN | XO (Standard) | 50 MHz | LVPECL | 2.5V | ±50ppm |
| SG7050EEN 50.000000M-CJGAB | EPSON | SG7050EEN | XO (Standard) | 50 MHz | LVPECL | 3.3V | ±50ppm |
| SG7050VEN 125.0000M-CJGAB | EPSON | SG7050VEN | XO (Standard) | 125 MHz | LVDS | 3.3V | ±50ppm |
| SG7050VEN 156.2500M-CJHAB | EPSON | SG7050VEN | XO (Standard) | 156.25 MHz | LVDS | 3.3V | ±50ppm |
| SG7050VEN 50.0000M-CJGAB | EPSON | SG7050VEN | XO (Standard) | 50 MHz | LVDS | 3.3V | ±50ppm |
| SG7050VEN 156.2500M-CJGAB | EPSON | SG7050VEN | XO (Standard) | 156.25 MHz | LVDS | 3.3V | ±50ppm |
| SG7050VEN 156.2500M-CJGA3 | EPSON | SG7050VEN | XO (Standard) | 156.25 MHz | LVDS | 3.3V | ±50ppm |
| SG7050VEN 125.0000M-CDGA3 | EPSON | SG7050VEN | XO (Standard) | 125 MHz | LVDS | 3.3V | ±25ppm |
| SG7050VEN 125.0000M-DDGAB | EPSON | SG7050VEN | XO (Standard) | 125 MHz | LVDS | 2.5V | ±25ppm |
| SG7050VEN 100.0000M-CDGAB | EPSON | SG7050VEN | XO (Standard) | 100 MHz | LVDS | 3.3V | ±25ppm |
| SG7050VEN 125.0000M-CDGAB | EPSON | SG7050VEN | XO (Standard) | 125 MHz | LVDS | 3.3V | ±25ppm |
| SG7050VEN 156.2500M-CDGAB | EPSON | SG7050VEN | XO (Standard) | 156.25 MHz | LVDS | 3.3V | ±25ppm |
| SG7050VEN 156.2500M-DDGAB | EPSON | SG7050VEN | XO (Standard) | 156.25 MHz | LVDS | 2.5V | ±25ppm |
| SG7050EEN 156.2500M-CDGAB | EPSON | SG7050EEN | XO (Standard) | 156.25 MHz | LVPECL | 3.3V | ±25ppm |
| SG7050EEN 156.2500M-DDGAB | EPSON | SG7050EEN | XO (Standard) | 156.25 MHz | LVPECL | 2.5V | ±25ppm |
| SG7050EEN 125.0000M-CDGAB | EPSON | SG7050EEN | XO (Standard) | 125 MHz | LVPECL | 3.3V | ±25ppm |
| SG7050VEN 125.0000M-CDGA0 | EPSON | SG7050VEN | XO (Standard) | 125 MHz | LVDS | 3.3V | ±25ppm |
| SG7050VEN 125.0000M-DDGA0 | EPSON | SG7050VEN | XO (Standard) | 125 MHz | LVDS | 2.5V | ±25ppm |
| SG7050VEN 156.2500M-DDGA0 | EPSON | SG7050VEN | XO (Standard) | 156.25 MHz | LVDS | 2.5V | ±25ppm |
| SG7050EEN 156.2500M-CDGA0 | EPSON | SG7050EEN | XO (Standard) | 156.25 MHz | LVPECL | 3.3V | ±25ppm |
| SG7050EEN 156.2500M-DDGA0 | EPSON | SG7050EEN | XO (Standard) | 156.25 MHz | LVPECL | 2.5V | ±25ppm |
| SG7050EEN 100.0000M-CJGA0 | EPSON | SG7050EEN | XO (Standard) | 100 MHz | LVPECL | 3.3V | ±50ppm |
| SG7050EAN 114.285000M-KEGA3 | EPSON | SG7050 | XO (Standard) | 114.285 MHz | LVPECL | 2.5V ~ 3.3V | ±30ppm |
| SG7050EAN 155.520000M-KEGA3 | EPSON | SG7050 | XO (Standard) | 155.52 MHz | LVPECL | 2.5V ~ 3.3V | ±30ppm |
| SG7050EAN 156.250000M-KEGA3 | EPSON | SG7050 | XO (Standard) | 156.25 MHz | LVPECL | 2.5V ~ 3.3V | ±30ppm |
| SG7050EAN 212.500000M-KEGA3 | EPSON | SG7050 | XO (Standard) | 212.5 MHz | LVPECL | 2.5V ~ 3.3V | ±30ppm |
| SG7050EAN 312.500000M-KEGA3 | EPSON | SG7050 | XO (Standard) | 312.5 MHz | LVPECL | 2.5V ~ 3.3V | ±30ppm |
| SG7050EAN 350.000000M-KEGA3 | EPSON | SG7050 | XO (Standard) | 350 MHz | LVPECL | 2.5V ~ 3.3V | ±30ppm |
| SG7050EAN 80.000000M-KEGA3 | EPSON | SG7050 | XO (Standard) | 80 MHz | LVPECL | 2.5V ~ 3.3V | ±30ppm |
| SG7050EAN 98.304000M-KEGA3 | EPSON | SG7050 | XO (Standard) | 98.304 MHz | LVPECL | 2.5V ~ 3.3V | ±30ppm |
| SG7050EAN 100.000000M-KEGA3 | EPSON | SG7050 | XO (Standard) | 100 MHz | LVPECL | 2.5V ~ 3.3V | ±30ppm |
| SG7050EAN 106.250000M-KEGA3 | EPSON | SG7050 | XO (Standard) | 106.25 MHz | LVPECL | 2.5V ~ 3.3V | ±30ppm |
| SG7050EAN 400.000000M-KEGA3 | EPSON | SG7050 | XO (Standard) | 400 MHz | LVPECL | 2.5V ~ 3.3V | ±30ppm |
| SG7050EAN 100.000000M-KJGA3 | EPSON | SG7050EAN | XO (Standard) | 100 MHz | LVPECL | 2.5V ~ 3.3V | ±50ppm |
| SG7050EAN 233.372000M-KEGA3 | EPSON | SG7050EAN | XO (Standard) | 233.372 MHz | LVPECL | 2.5V ~ 3.3V | ±30ppm |
| SG7050EAN 156.250000M-KJGA3 | EPSON | SG7050EAN | XO (Standard) | 156.25 MHz | LVPECL | 2.5V ~ 3.3V | ±50ppm |
| SG7050EAN 100.000000M-KEGAB | EPSON | SG7050EAN | XO (Standard) | 100 MHz | LVPECL | 2.5V ~ 3.3V | ±30ppm |
| SG7050EAN 100.000000M-KJGAB | EPSON | SG7050EAN | XO (Standard) | 100 MHz | LVPECL | 2.5V ~ 3.3V | ±50ppm |
| SG7050EAN 125.000000M-KJGAB | EPSON | SG7050EAN | XO (Standard) | 125 MHz | LVPECL | 2.5V ~ 3.3V | ±50ppm |
| SG7050EAN 133.330000M-KJGAB | EPSON | SG7050EAN | XO (Standard) | 133.33 MHz | LVPECL | 2.5V ~ 3.3V | ±50ppm |
| SG7050EAN 150.000000M-KJGAB | EPSON | SG7050EAN | XO (Standard) | 150 MHz | LVPECL | 2.5V ~ 3.3V | ±50ppm |
| SG7050EAN 156.250000M-KJGAB | EPSON | SG7050EAN | XO (Standard) | 156.25 MHz | LVPECL | 2.5V ~ 3.3V | ±50ppm |
| SG7050EAN 212.500000M-KEGAB | EPSON | SG7050EAN | XO (Standard) | 212.5 MHz | LVPECL | 2.5V ~ 3.3V | ±30ppm |
| SG7050EAN 233.372000M-KEGAB | EPSON | SG7050EAN | XO (Standard) | 233.372 MHz | LVPECL | 2.5V ~ 3.3V | ±30ppm |
| SG7050EAN 250.000000M-KEGAB | EPSON | SG7050EAN | XO (Standard) | 250 MHz | LVPECL | 2.5V ~ 3.3V | ±30ppm |
| SG7050EAN 300.000000M-KJGAB | EPSON | SG7050EAN | XO (Standard) | 300 MHz | LVPECL | 2.5V ~ 3.3V | ±50ppm |
| SG7050EAN 322.265625M-KEBEB | EPSON | SG7050EAN | XO (Standard) | 322.265625 MHz | LVPECL | 2.5V ~ 3.3V | ±30ppm |
| SG7050EAN 80.000000M-KEGAB | EPSON | SG7050EAN | XO (Standard) | 80 MHz | LVPECL | 2.5V ~ 3.3V | ±30ppm |
| SG7050EAN 200.000000M-KEGAB | EPSON | SG7050EAN | XO (Standard) | 200 MHz | LVPECL | 2.5V ~ 3.3V | ±30ppm |
| SG7050EAN 155.520000M-KEGAB | EPSON | SG7050EAN | XO (Standard) | 155.52 MHz | LVPECL | 2.5V ~ 3.3V | ±30ppm |
| SG7050EAN 75.0000M-KEGAB | EPSON | SG7050EAN | XO (Standard) | 75 MHz | LVPECL | 2.5V ~ 3.3V | ±30ppm |
| SG7050EAN 301.386000M-KEGAB | EPSON | SG7050EAN | XO (Standard) | 301.386 MHz | LVPECL | 2.5V ~ 3.3V | ±30ppm |
| SG7050VAN 100.000000M-KCBAB | EPSON | SG7050VAN | XO (Standard) | 100 MHz | LVDS | 2.5V ~ 3.3V | ±20ppm |
| SG7050VAN 100.000000M-KJGAB | EPSON | SG7050VAN | XO (Standard) | 100 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG7050VAN 125.000000M-KEGAB | EPSON | SG7050VAN | XO (Standard) | 125 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG7050VAN 156.250000M-KEGAB | EPSON | SG7050VAN | XO (Standard) | 156.25 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG7050VAN 156.250000M-KJGAB | EPSON | SG7050VAN | XO (Standard) | 156.25 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG7050VAN 200.000000M-KJBAB | EPSON | SG7050VAN | XO (Standard) | 200 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG7050VAN 312.500000M-KEGAB | EPSON | SG7050VAN | XO (Standard) | 312.5 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG7050VAN 312.500000M-KCBAB | EPSON | SG7050VAN | XO (Standard) | 312.5 MHz | LVDS | 2.5V ~ 3.3V | ±20ppm |
| SG7050VAN 200.000000M-KCBAB | EPSON | SG7050VAN | XO (Standard) | 200 MHz | LVDS | 2.5V ~ 3.3V | ±20ppm |
| SG7050VAN 250.000000M-KJGAB | EPSON | SG7050VAN | XO (Standard) | 250 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG7050VAN 200.000000M-KEGAB | EPSON | SG7050VAN | XO (Standard) | 200 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG7050VAN 125.000000M-KJGAB | EPSON | SG7050VAN | XO (Standard) | 125 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG7050VAN 66.000000M-KJGAB | EPSON | SG7050VAN | XO (Standard) | 66 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG7050VAN 296.703000M-KEGAB | EPSON | SG7050VAN | XO (Standard) | 296.703 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG7050VAN 650.000000M-KCBAB | EPSON | SG7050VAN | XO (Standard) | 650 MHz | LVDS | 2.5V ~ 3.3V | ±20ppm |
| SG7050VAN 125.000000M-KCBAB | EPSON | SG7050VAN | XO (Standard) | 125 MHz | LVDS | 2.5V ~ 3.3V | ±20ppm |
| SG7050VAN 125.000000M-KJBAB | EPSON | SG7050VAN | XO (Standard) | 125 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG7050VAN 100.000000M-KEGA3 | EPSON | SG7050 | XO (Standard) | 100 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG7050VAN 106.250000M-KEGA3 | EPSON | SG7050 | XO (Standard) | 106.25 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG7050VAN 114.285000M-KEGA3 | EPSON | SG7050 | XO (Standard) | 114.285 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG7050VAN 125.000000M-KEGA3 | EPSON | SG7050 | XO (Standard) | 125 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG7050VAN 150.000000M-KEGA3 | EPSON | SG7050 | XO (Standard) | 150 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG7050VAN 155.520000M-KEGA3 | EPSON | SG7050 | XO (Standard) | 155.52 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG7050VAN 156.250000M-KEGA3 | EPSON | SG7050 | XO (Standard) | 156.25 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG7050VAN 200.000000M-KEGA3 | EPSON | SG7050 | XO (Standard) | 200 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG7050VAN 212.500000M-KEGA3 | EPSON | SG7050 | XO (Standard) | 212.5 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG7050VAN 250.000000M-KEGA3 | EPSON | SG7050 | XO (Standard) | 250 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG7050VAN 312.500000M-KEGA3 | EPSON | SG7050 | XO (Standard) | 312.5 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG7050VAN 350.000000M-KEGA3 | EPSON | SG7050 | XO (Standard) | 350 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG7050VAN 400.000000M-KEGA3 | EPSON | SG7050 | XO (Standard) | 400 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG7050VAN 80.000000M-KEGA3 | EPSON | SG7050 | XO (Standard) | 80 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG7050VAN 98.304000M-KEGA3 | EPSON | SG7050 | XO (Standard) | 98.304 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG7050VAN 100.000000M-KCBA3 | EPSON | SG7050 | XO (Standard) | 100 MHz | LVDS | 2.5V ~ 3.3V | - |
| SG7050VAN 200.000000M-KJBA3 | EPSON | SG7050VAN | XO (Standard) | 200 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG7050VAN 125.000000M-KJGA3 | EPSON | SG7050VAN | XO (Standard) | 125 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG7050VAN 66.000000M-KJGA3 | EPSON | SG7050VAN | XO (Standard) | 66 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG7050VAN 100.000000M-KCBA0 | EPSON | SG7050VAN | XO (Standard) | 100 MHz | LVDS | 2.5V ~ 3.3V | ±20ppm |
| SG7050VAN 200.000000M-KJBA0 | EPSON | SG7050VAN | XO (Standard) | 200 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG7050VAN 100.000000M-KJGA0 | EPSON | SG7050VAN | XO (Standard) | 100 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG7050VAN 125.000000M-KEGA0 | EPSON | SG7050VAN | XO (Standard) | 125 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
深圳市億金電子有限公司 SHENZHEN YIJIN ELECTRONICS CO;LTD
聯系人黃娜：18924600166
工作QQ:857950243
貿易通：yijindz2014
座機：0755-27876565
郵箱:yijindz@163.com
網址：
微信：yijindz，公眾號：NDKcrystal
地址：廣東省深圳市寶安區107國道旁甲岸路
跟此產品相關的產品 / Related Products
- 亞陶5032晶振,臺產SQ晶振,HCSL輸出晶振,SQF620001差分晶振,服務器晶振
- SQF620001作為臺產亞陶的5032晶振，憑借其緊湊的5032封裝，完美適配服務器內部高密度的電路板布局。這種封裝不僅節省空間，還具備良好的散熱與機械穩定性，確保晶振在服務器長時間運行產生的高溫與振動環境中，依舊能保持穩定性能。其HCSL輸出特性，使該晶振在服務器復雜電磁環境下優勢盡顯。HCSL差分輸出通過傳輸一對相位相反的信號，極大地增強了抗干擾能力，有效抑制共模干擾，保障時鐘信號在服務器內部長距離傳輸時的準確性與完整性。這對于服務器內CPU、內存、存儲設備及網絡接口等組件間的高速數據交互尤為關鍵，確保數據傳輸的精準無誤。
- QL4444LEV-100.0M,LVDS輸出晶振,3225振蕩器,QL44L差分晶振,Pletronics貼片晶振
- QL4444LEV-100.0M,LVDS輸出晶振,3225振蕩器,QL44L差分晶振,Pletronics貼片晶振 QL4444LEV-100.0M 是 Pletronics 的 3225 貼片式 LVDS 輸出差分晶振。它可輸出精準的 100.0MHz 頻率，為電子設備提供穩定的時鐘基準。LVDS 輸出方式使其具備出色的抗干擾能力，能有效抑制共模干擾，保證信號穩定傳輸。貼片封裝便于安裝和集成。廣泛應用于高速數據接口、網絡通信等領域，有助于提升設備的數據傳輸速度和穩定性，是高速數據傳輸系統的理想選擇。
- 4HF100000Z4AACUGI,Renesas差分貼片晶振,7050mm,以太網應用晶振
- 4HF100000Z4AACUGI,Renesas差分貼片晶振,7050mm,以太網應用晶振，美國Renesas晶振，瑞薩電子晶振，型號：4HF系列晶振，編碼為：4HF100000Z4AACUGI，頻率為：1000MHz，電源電壓：3.3V，頻率穩定性：±50ppm，工作溫度范圍：-40℃至+85℃，小體積尺寸：7.0x5.0mm封裝，六腳貼片晶振，LVDS輸出有源差分晶體振蕩器，MEMS振蕩器，石英晶振，差分晶振，有源晶振，石英晶體振蕩器。具有超小型，輕薄型，高性能，低抖動，低相位噪聲，低電源電壓，低耗能，低功耗等特點。應用于：以太網晶振，路由器晶振，GPS定位，光纖通道晶振，物聯網等應用。
億金電子產品中心
Product Center
晶振系列
日本進口晶振
- 京瓷晶振
- 精工晶振
- 西鐵城晶振
- 村田晶振
- 大河晶振
- KDS Quartz crystal
- NDK Quartz crystal
- EPSON Quartz crystal
- 富士晶振
- NAKA晶振
- SMI晶振
- NJR晶振
臺產晶振
歐美晶振
- CTS晶振
- 微晶晶振
- 瑞康晶振
- 康納溫菲爾德晶振
- 高利奇晶振
- Jauch晶振
- AbraconCrystal晶振
- 維管晶振
- ECScrystal晶振
- 日蝕晶振
- 拉隆晶振
- 格林雷晶振
- SiTimeCrystal晶振
- IDTcrystal晶振
- PletronicsCrystal晶振
- StatekCrystal晶振
- AEK晶振
- AEL晶振
- Cardinal晶振
- Crystek晶振
- Euroquartz晶振
- 福克斯晶振
- Frequency晶振
- GEYER晶振
- ILSI晶振
- KVG晶振
- MMDCOMP晶振
- MtronPTI晶振
- QANTEK晶振
- QuartzCom晶振
- QuartzChnik晶振
- SUNTSU晶振
- Transko晶振
- WI2WI晶振
- 韓國三呢晶振
- ITTI晶振
- ACT晶振
- Milliren晶振
- Lihom晶振
- rubyquartz晶振
- Oscilent晶振
- SHINSUNG晶振
- PDI晶振
- C-TECH晶振
- IQD晶振
- Microchip晶振
- Silicon晶振
- Fortiming晶振
- CORE晶振
- NIPPON晶振
- NIC晶振
- QVS晶振
- Bomar晶振
- Bliley晶振
- GED晶振
- FILTRONETICS晶振
- STD晶振
- Q-Tech晶振
- Anderson晶振
- Wenzel晶振
- NEL晶振
- EM晶振
- PETERMANN晶振
- FCD-Tech晶振
- HEC晶振
- FMI晶振
- Macrobizes晶振
- AXTAL晶振
- 瑞薩renesas晶振
- Skyworks晶振
有源晶振
霧化片
貼片晶振
32.768K
- 32.768K有源晶振
- 8.0x3.8晶振
- 7.1x3.3晶振
- 7.0x1.5晶振
- 5.0x1.8晶振
- 4.1x1.5晶振
- 3.2x1.5晶振
- 2.0x1.2晶振
- 1.6x1.0晶振
- 1.2x1.0晶振
- 圓柱晶振
聲表面濾波器
石英晶振
KDS晶振
愛普生晶振
- EPSON 32.768K晶振
- EPSON無源晶振
- EPSON普通有源晶振
- EPSON壓控晶振
- EPSON溫補晶振
- EPSON壓控溫補晶振
- EPSON恒溫晶振
- EPSON差分晶振
- EPSON可編程晶振
NDK晶振
溫補晶振
聯系億金電子Contact us
億金公眾號
億金微信號
