Jauch品牌|O 32.0-JTP32CSV-D-K-3.0-1510-0510-LF|6G路由器晶振

頻率：50MHz

尺寸：3.2mm×2.5mm

Jauch品牌|O 50.0-JTP32CSV-E-G-3.3-1515-0510-LF|6G低成本晶振,歐美進口晶振,Jauch晶振,JTP32CSV有源晶體振蕩器,O 50.0-JTP32CSV-E-G-3.3-1515-0510-LF晶振,3.2×2.5mm石英貼片晶振,壓控溫補晶振,頻率50MHz,電壓3.3V,頻率穩定性0.5ppm,工作溫度-30~75°C,高可靠性晶振,抗沖擊晶振,6G低成本晶振,家庭醫療保健晶振,調制解調器晶振,掃描儀晶振.

訂購熱線：0755-27876565

yijin-1

Jauch品牌|O 50.0-JTP32CSV-E-G-3.3-1515-0510-LF|6G低成本晶振,歐美進口晶振,Jauch晶振,JTP32CSV有源晶體振蕩器,O 50.0-JTP32CSV-E-G-3.3-1515-0510-LF晶振,3.2×2.5mm石英貼片晶振,壓控溫補晶振,頻率50MHz,電壓3.3V,頻率穩定性0.5ppm,工作溫度-30~75°C,高可靠性晶振,抗沖擊晶振,6G低成本晶振,家庭醫療保健晶振,調制解調器晶振,掃描儀晶振.

Jauch品牌|O 50.0-JTP32CSV-E-G-3.3-1515-0510-LF|6G低成本晶振特點：

- 精密溫度補償晶體振蕩器，3.2 x 2.5 mm

-頻率穩定性±0.28 PPM可用

-工作溫度范圍-40℃~ +85℃

- JTP32CSV與頻率調諧選項

-3層兼容版本參考JTS32CS(V)

yijin-2

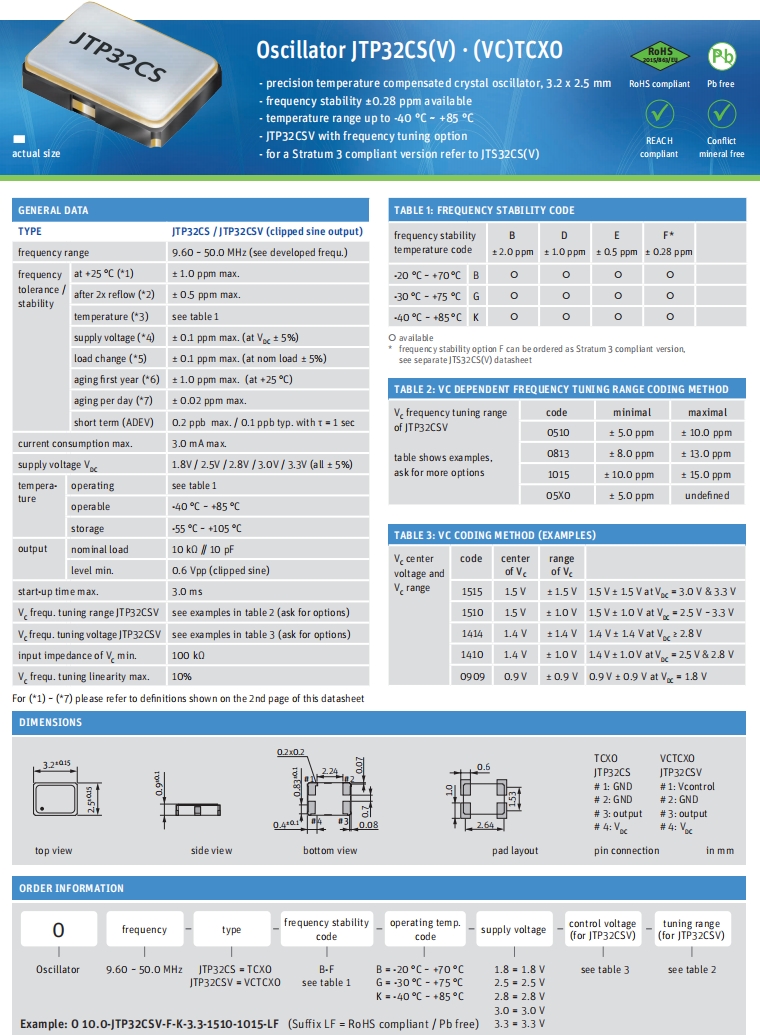

Jauch品牌|O 50.0-JTP32CSV-E-G-3.3-1515-0510-LF|6G低成本晶振規格表

TYPE		JTP32CS/JTP32CSV(clipped sine output)
frequency range		50 MHz
frequency stability	at +25°℃	± 1.0 ppm max.
	after 2x reflow (*2)	± 0.5 ppm max.
	temperature (*3)	±0.5ppm
	supply voltage (*4)	± 0.1 ppm max. (at VDC ± 5%)
	load change (*5)	± 0.1 ppm max. (at nom load ± 5%)
	aging first year (*6)	± 1.0 ppm max. (at +25 °C)
	aging per day (*7)	± 0.02 ppm max.
	short term (ADEV)	0.2 ppb max. / 0.1 ppb typ. with τ = 1 sec
current consumption max.		3.0 mA max.
supply voltage VDC		3.3V (±5%)
temperature	operating	-30℃-+75℃
	operable	-40℃-+85℃
	storage	-55℃-+105℃
out put	nominal load	10 kΩ // 10 pF
out put	level min.	0.6 Vpp (clipped sine)
start-up time max.		3.0ms
VC frequ. tuning range JTP32CSV		examples in table 2 (ask for more options)
VC frequ. tuning voltage JTP32CSV		examples in table 3 (ask for more options)
input impedance of VC min.		100 kΩ
VC frequ. tuning linearity max.		10%

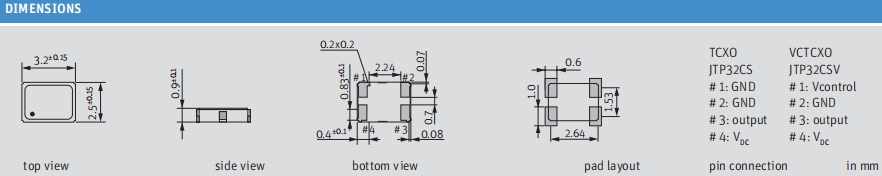

Jauch品牌|O 50.0-JTP32CSV-E-G-3.3-1515-0510-LF|6G低成本晶振尺寸圖
