Microchip晶振,2520mm,VC-840A-EAE-FAAN-?25M0000000TR?,6G基站晶振

頻率：25MHZ

尺寸：2.5mm x 2.0mm

Microchip晶振,2520mm,VC-840A-EAE-FAAN-25M0000000TR,6G基站晶振,Microchip晶振,VC-840A-EAE-FAAN-25M0000000TR晶振,VC-840A有源晶體振蕩器(XO)是一種具有CMOS輸出的石英穩定方波發生器,使用基音或第三泛音晶體,在基音中振蕩,導致非常低的抖動性能和一個單片提高可靠性和降低成本的集成電路,2520貼片晶振,6G基站晶振,存儲區域網絡晶振,光纖通道晶振,數字視頻晶振,寬帶接入晶振.
訂購熱線：0755-27876565
QQ咨詢 點擊這里給我發消息

yijin-1

Microchip晶振,2520mm,VC-840A-EAE-FAAN-25M0000000TR,6G基站晶振,Microchip晶振,VC-840A-EAE-FAAN-25M0000000TR晶振,VC-840A有源晶體振蕩器(XO)是一種具有CMOS輸出的石英穩定方波發生器,使用基音或第三泛音晶體,在基音中振蕩,導致非常低的抖動性能和一個單片提高可靠性和降低成本的集成電路,2520貼片晶振,6G基站晶振,存儲區域網絡晶振,光纖通道晶振,數字視頻晶振,寬帶接入晶振.

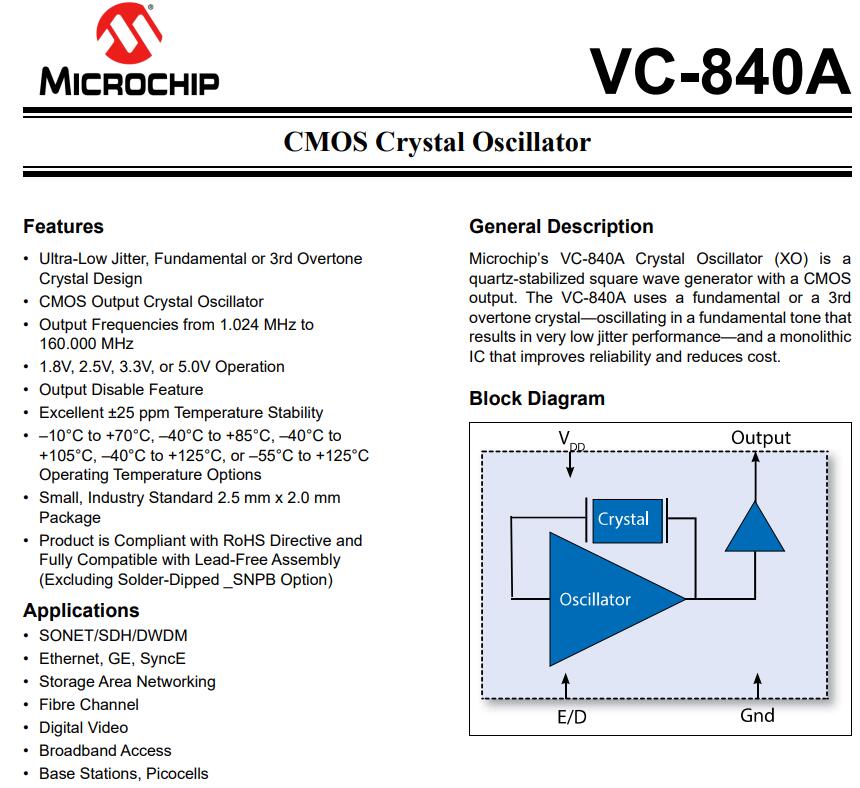

Microchip晶振,2520mm,VC-840A-EAE-FAAN-25M0000000TR,6G基站晶振特點：

•超低抖動，基本或第三泛音水晶設計

•CMOS輸出晶體振蕩器

•輸出頻率從1.024 MHz到160.000MHz

•1.8V, 2.5V, 3.3V, 5.0V操作

•輸出禁用功能

•卓越的±25 ppm溫度穩定性

•工作溫度選擇-10°C至+70°C， -40°C至+85°C， -40°C至+105°C， -40°C至+125°C或-55°C至+125°C

•小型，工業標準2.5mmx 2.0mm包裝

•產品符合RoHS指令和與無鉛組件完全兼容(不包括焊浸_SNPB選項)

yijin-2

Microchip晶振,2520mm,VC-840A-EAE-FAAN-25M0000000TR,6G基站晶振規格表

項目 規格說明 條件
額定頻率 25MHz 請聯系我們以便獲取其它可用頻率的相關信息
電源電壓 3.3V
儲存溫度 -55℃~+125℃ 裸存
工作溫度 -40℃~ +85℃
頻率穩定度 ±25ppm 包括由初始公差、溫度和電源電壓引起的頻率變化
老化 ±5ppm
 1 year @ +25°C
電流 8mA Max 20.001 MHz to 40 MHz
負載 15pf
輸出邏輯電平低（Vol） 0.1x VDD  Max
輸出邏輯電平高（Voh） 0.9x VDD  Max
輸出上升下降時間
 5ns Max
 20.001 MHz to 50 MHz
起始時間 10ms Max
占空比 45%~55%
周期抖動
 2.4ps 100MHz,RMS

yijin-3

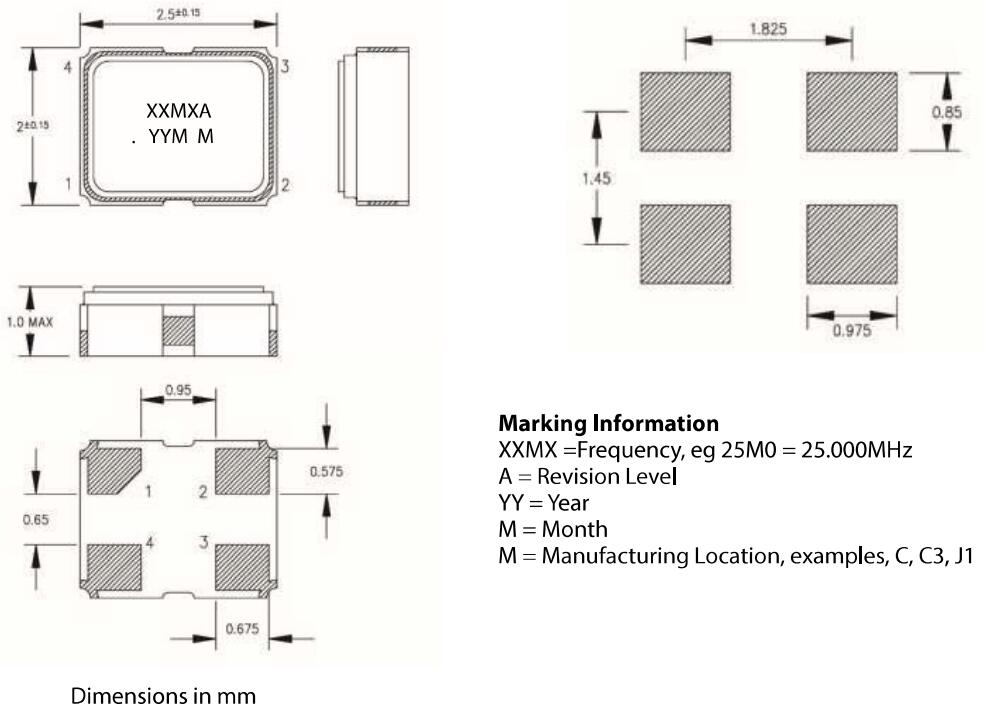

Microchip晶振,2520mm,VC-840A-EAE-FAAN-25M0000000TR,6G基站晶振尺寸圖

VC-840A

VC-840A-1

VC-840A-4
