小體積低成本的溫補晶振已然成了市場的主流?517L20M25ITR我們生產的最高頻率溫度補償晶體振蕩器(tcxo)在業界可用。頻率大于1.0GHz，穩定性低至0.05ppm，溫度范圍可達-40°C至85°C。憑借優越的相位噪聲和低電流消耗，我們的tcxo有源晶體振蕩器使客戶能夠實現創新設計的最高性能。

TCXO晶振性能：陶瓷表面貼裝包，低相位抖動性能，基本晶體設計，頻率范圍9.5 - 60MHz *+1.8V、+2.5V、+2.8V、+3.0V、+3.3V操作，允許輸出標準，卷帶包裝，EIA-481，應用：全球定位系統(GPS)，物聯網和IIoT，無線連接，同步以太網，基站/毫微微細胞，移動通信，WiMax / wi - fi / WLAN，鎖相環路，測試設備。

We produce the highest frequency temperature compensated crystal oscillators (TCXOs) available in the industry. With frequencies greater than 1.0GHz, stabilities as low as 0.05ppm, and temperature range up to -40°C to 85°C. With superior phase noise and low current consumption, our TCXOs enable customers to achieve the highest performance for innovative designs.

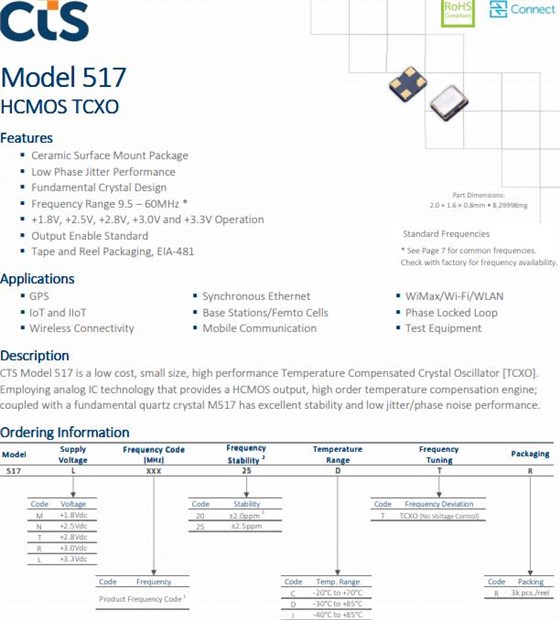

CTS Model 517 is a low cost, small size, high performance Temperature Compensated Crystal Oscillator [TCXO].
Employing analog IC technology that provides a HCMOS output, high order temperature compensation engine;
coupled with a fundamental quartz crystal M517 has excellent stability and low jitter/phase noise performance.

1/5
