微晶晶振,1978年成立于瑞士格倫興,為Swatch Group的供貨商,提供手表音叉式晶體的產品.而今,微晶已經發展成為一家在微型音叉式石英晶體(32kHz ~ 250MHz)、實時時鐘模塊、晶振和OCXO晶體振蕩器,有源晶振等多個領域的領導供貨商,為世界一流的終端產品制造商提供從設計到量產的全方位支持,服務范圍涵蓋手機、計算機、汽車電子、手表、工業控制、植入式醫療及其他高可靠性產品.
編碼RV-3032-C7TAQC是一款高性能溫度補償實時時鐘模塊,32.768K時鐘晶振
采用緊湊型封裝的超低功耗實時時鐘(RTC)模塊，實時時鐘(RTC)模塊在微型SMD陶瓷封裝內將32.768k XTAL與基CMOS的振蕩器和 RTC IC結合在一起。
制造商零件編號
制造商
描述
頻率
OV-7604-C7-32.768k-20PPM-TB-QA
Micro Crystal
標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+125C AEC-Q200
32.768 kHz
OV-7604-C7-32.768kHz-20PPM-TA-QC
Micro Crystal
標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+85C
32.768 kHz
OV-0100-C7-100.000kHz-20PPM-TA-QC
Micro Crystal
標準時鐘振蕩器 100.0 kHz +/-20 PPM -40/+85C
100 kHz
OM-0100-C8-100.00kHz-20PPM-TA-QC
Micro Crystal
時鐘晶振 100.0 kHz +/-20 PPM -40/+85C
100 kHz
OM-7605-C8-32.768kHz-20PPM-TA-QC
Micro Crystal
標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+85C
32.768 kHz
OM-7604-C7-32.768kHz-20PPM-TA-QC
Micro Crystal
標準時鐘振蕩器 32.768 kHz +/-20 PPM I2C -40/+85C
32.768 kHz
202273-EA00
Micro Crystal
標準時鐘振蕩器 128MHz 20ppm -55C +85C
128 MHz
OV-7604-C7-32.768kHz-20PPM-TB-QC
Micro Crystal
標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+125C
32.768 kHz
OV-7605-C8-32.768kHz-20PPM-TA-QC
Micro Crystal
標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+85C
32.768 kHz
OM-7604-C7-32.768kHz-20PPM-TB-QC
Micro Crystal
標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+125C
32.768 kHz
OV-7604-C7-32.768k-10PPM-TB-QA
Micro Crystal
標準時鐘振蕩器 32.768 kHz +/-10 PPM -40/+125C AEC-Q200
32.768 kHz
OV-7604-C7-32.768k-20PPM-TA-QA
Micro Crystal
標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+85C
32.768 kHz
OV-7604-C7-32.768kHz-10PPM-TA-QC
Micro Crystal
標準時鐘振蕩器 32.768 kHz +/-10 PPM -40/+85C
32.768 kHz
OV-0100-C7-100.000kHz-50PPM-TA-QC
Micro Crystal
標準時鐘振蕩器 100.0 kHz +/-50 PPM -40/+85C
100 kHz
OM-7605-C8-20PPM-TA-QA
Micro Crystal
標準時鐘振蕩器 32.768kHz 20ppm 1.6-5.5V
32.768 kHz
超低功耗：45nA
高精度：±1ppm，±0.09s/天
最小封裝：3.2x1.5x0.8mm
溫度范圍擴展至 +125℃，包括AEC-Q200
編碼RV-3032-C7TAQC是一款高性能溫度補償實時時鐘模塊,32.768K時鐘晶振
| 制造商零件編號 | 制造商 | 描述 |
| OV-7604-C7-32.768k-20PPM-TB-QA | Micro Crystal | 標準時鐘振蕩器32.768 kHz +/-20 PPM -40/+125C AEC-Q200 |
| OV-7604-C7-32.768kHz-20PPM-TA-QC | Micro Crystal | 標準時鐘振蕩器32.768 kHz +/-20 PPM -40/+85C |
| MS1V-T1K-32.768kHz-12.5pF-20PPM-TA-QC-Au | Micro Crystal | 晶體32.768 kHz 12.5 pF +/-20 PPM -40/+85C |
| CM7V-T1A-32.768kHz-7pF-100PPM-TA-QC | Micro Crystal | 晶體32.768 kHz 7.0 pF +/-100 PPM -40/+85C |
| CM8V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro Crystal | 晶體32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| MS1V-T1K-32.768kHz-7pF-20PPM-TA-QC-Au | Micro Crystal | 晶體32.768 kHz 7.0 pF +/-20 PPM -40/+85C |
| CC4V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro Crystal | 晶體32.768 kHz 12.5 pF +/-20 PPM -40/+85C |
| CC5V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro Crystal | 晶體32.768 kHz 12.5 pF +/-20 PPM -40/+85C |
| CC5V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro Crystal | 晶體32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| OV-0100-C7-100.000kHz-20PPM-TA-QC | Micro Crystal | 標準時鐘振蕩器100.0 kHz +/-20 PPM -40/+85C |
| OM-0100-C8-100.00kHz-20PPM-TA-QC | Micro Crystal | 標準時鐘振蕩器100.0 kHz +/-20 PPM -40/+85C |
| CM7V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro Crystal | 晶體32.768 kHz 7.0 pF +/-20 PPM -40/+85C |
| CM7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro Crystal | 晶體32.768 kHz 12.5 pF +/-20 PPM -40/+85C |
| CC7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro Crystal | 晶體32.768 kHz 12.5 pF +/-20 PPM -40/+85C |
| MS3V-T1R-32.768kHz-12.5pF-20PPM-TA-QC-Au | Micro Crystal | 晶體32.768 kHz 12.5 pF +/-20 PPM -40/+85C |
| MS3V-T1R-32.768kHz-7pF-20PPM-TA-QC-Au | Micro Crystal | 晶體32.768 kHz 7.0 pF +/-20 PPM -40/+85C |
| CC7V-T1A-32.768kHz-7pF-100PPM-TA-QC | Micro Crystal | 晶體32.768 kHz 7.0 pF +/-100 PPM -40/+85C |
| CC7V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro Crystal | 晶體32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro Crystal | 晶體32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CM8V-T1A-32.768k-9pF-20PPM-TB-QA | Micro Crystal | 晶體32.768 kHz 9.0 pF +/-20 PPM -40/+125C |
| MS1V-T1K-32.768kHz-10pF-20PPM-TA-QC-Au | Micro Crystal | 晶體32.768 kHz 10.0 pF +/-20 PPM -40/+85C |
| CC5V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro Crystal | 晶體32.768 kHz 7.0 pF +/-20 PPM -40/+85C |
| CM8V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro Crystal | 晶體32.768 kHz 12.5 pF +/-20 PPM -40/+85C |
| CM7V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro Crystal | 晶體32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| CM8V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro Crystal | 晶體32.768 kHz 7.0 pF +/-20 PPM -40/+85C |
| OM-7605-C8-32.768kHz-20PPM-TA-QC | Micro Crystal | 標準時鐘振蕩器32.768 kHz +/-20 PPM -40/+85C |
| OM-7604-C7-32.768kHz-20PPM-TA-QC | Micro Crystal | 標準時鐘振蕩器32.768 kHz +/-20 PPM I2C -40/+85C |
| MS3V-T1R-32.768kHz-9pF-20PPM-TA-QC-Au | Micro Crystal | 晶體32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| CM7V-T1A-Low-ESR-32.768kHz-9pF-20-TA-QC | Micro Crystal | 晶體32.768 kHz 9.0 pF +/-20 PPM LOW ESR |
RV-3032-C7是一款具有I²C接口的高性能溫度補償實時時鐘晶振模塊，可在超低電流消耗的工業溫度范圍內提供世界上最佳的時間精度。嵌入式32.768kHz晶體諧振器的工廠校準溫度補償在-40℃至85℃（±1.5ppm 0℃至50℃；相當于±0.13秒/天）范圍內提供±2.5 ppm 的精度。它通過低至160nA的計時電流延長電池壽命。除了標準的實時時鐘(RTC)功能，如日歷（從第100秒到（閏年）、定時器和警報），它還包括一個具有可編程溫度窗口檢測中斷的精確高分辨率溫度傳感器、智能電源管理功能和用戶EEPROM和RAM。帶有時間戳的外部事件檢測中斷與可編程密碼相結合，提供了防止欺詐和黑客攻擊的安全解決方案。編碼RV-3032-C7TAQC是一款高性能溫度補償實時時鐘模塊,32.768K時鐘晶振
CC7V-T1A-32.768kHz-7pF-20PPM-TA-QC
Micro Crystal
晶體32.768 kHz 7.0 pF +/-20 PPM -40/+85C
CM7VT1A-LowESR-32.768kHz-12.5pF-20-TA-QC
Micro Crystal
晶體32.768 kHz 12.5 pF +/-20 PPM LOW ESR
CM7V-T1A-Low-ESR-32.768kHz-7pF-20-TA-QC
Micro Crystal
晶體32.768 kHz 7.0 pF +/-20 PPM LOW ESR
CM7V-T1A-32.768k-12.5pF-20PPM-TA-QA
Micro Crystal
晶體32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768k-7pF-20PPM-TA-QA
Micro Crystal
晶體32.768 kHz 7.0 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768k-7pF-100PPM-TB-QA
Micro Crystal
晶體32.768 kHz 7.0 pF +/-100 PPM AEC-Q200
CC7V-T1A-32.768k-9pF-20PPM-TA-QA
Micro Crystal
晶體32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768kHz-12.5pF-100PPM-TC-QC
Micro Crystal
晶體32.768 kHz 12.5 pF 100 PPM -55/+125C
CC4V-T1A-32.768kHz-12.5pF-10PPM-TA-QC
Micro Crystal
晶體32.768 kHz 12.5 pF +/-10 PPM -40/+85C
CM7V-T1A-32.768k-12.5pF-20PPM-TB-QA
Micro Crystal
晶體32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768k-9pF-20PPM-TB-QA
Micro Crystal
晶體32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
CC7V-T1A-32.768k-7pF-20PPM-TB-QA
Micro Crystal
晶體32.768 kHz 7.0 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768kHz-9pF-20PPM-TC-QC
Micro Crystal
晶體32.768 kHz 9.0 pF +/-20 PPM -55/+125C
CC7V-T1A-32.768k-12.5pF-20PPM-TB-QA
Micro Crystal
晶體32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CM7V-T1A-Low-ESR-32.768kHz-6pF-20-TA-QC
Micro Crystal
晶體32.768 kHz 6.0 pF +/-20 PPM LOW ESR
CM7V-T1A-32.768kHz-6pF-20PPM-TA-QC
Micro Crystal
晶體32.768 kHz 6.0 pF +/-20 PPM -40/+85C
CM7V-T1A-32.768k-7pF-20PPM-TC-QA
Micro Crystal
晶體32.768 kHz 7.0 pF +/-20 PPM AEC-Q200
CC7V-T1A-32.768k-9pF-100PPM-TC-QA
Micro Crystal
晶體32.768 kHz 9.0 pF +/-100 PPM AEC-Q200
CM7V-T1A-32.768k-9pF-20PPM-TC-QA
Micro Crystal
晶體32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
CC7V-T1A-32.768k-12.5pF-20PPM-TC-QA
Micro Crystal
晶體32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768kHz-6pF-10PPM-TA-QC
Micro Crystal
晶體32.768 kHz 6.0 pF +/-10 PPM -40/+85C
CC4V-T1A-32.768kHz-9pF-100PPM-TA-QC
Micro Crystal
晶體32.768 kHz 9.0 pF +/-100 PPM -40/+85C
CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC
Micro Crystal
晶體32.768 kHz 6.0 pF +/-20 PPM -40/+85C
CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC
Micro Crystal
晶體32.768 kHz 12.5 pF +/-20 PPM -40/+125C
CC4V-T1A-32.768kHz-7pF-20PPM-TA-QC
Micro Crystal
晶體32.768 kHz 7.0 pF +/-20 PPM -40/+85C
CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC
Micro Crystal
晶體32.768 kHz 7.0 pF +/-20 PPM -40/+125C
CC4V-T1A-32.768kHz-9pF-20PPM-TA-QC
Micro Crystal
晶體32.768 kHz 9.0 pF +/-20 PPM -40/+85C
CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC
Micro Crystal
晶體32.768 kHz 7.0 pF +/-100 PPM -40/+85C
CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC
Micro Crystal
晶體32.768 kHz 7.0 pF +/-20 PPM -40/+85C
CC5V-T1A-32.768kHz-12.5pF-20PPM-TB-QC
Micro Crystal
晶體32.768 kHz 12.5 pF +/-20 PPM -40/+125C
編碼RV-3032-C7TAQC是一款高性能溫度補償實時時鐘模塊,32.768K時鐘晶振
超小尺寸和緊湊的尺寸以及可靠的真空密封金屬蓋為微型和成本敏感的大批量應用提供了SMT完全集成且易于實施的設備的所有優勢。

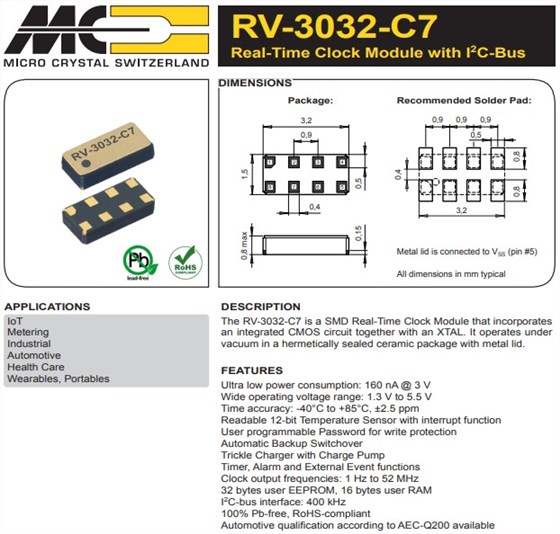

RV-3032-C7是一個SMD實時時鐘模塊，尺寸3.2x1.5mm晶振，包括集成CMOS電路和XTAL。它在以下條件下運作
帶金屬蓋的密封陶瓷包裝中的真空。
特征：
超低功耗:160 nA(3V時)
寬工作電壓范圍:1.3V至5.5V
時間精度:-40℃至+85℃，2.5ppm
具有中斷功能的可讀12位溫度傳感器
寫保護的用戶可編程密碼
自動備份切換
帶電荷泵的涓流充電器
定時器、鬧鐘和外部事件功能
時鐘輸出頻率:1Hz至52MHz石英晶振
32字節用戶EEPROM，16字節用戶RAM
I2C總線接口:400千赫
100%無鉛，符合RoHS標準
提供符合AEC-Q200的汽車認證
應用程序：物聯網，測量，產業的，汽車的，衛生保健，可穿戴設備，便攜式設備
