當前位置：首頁 » 歐美晶振 » 日蝕晶振 » E1SFA12-3.6864M TR-Ecliptek-3.6864MHz-30PPM-12PF-49SMD

prevnext

E1SFA12-3.6864M TR-Ecliptek-3.6864MHz-30PPM-12PF-49SMD

頻率：3.6864MHZ

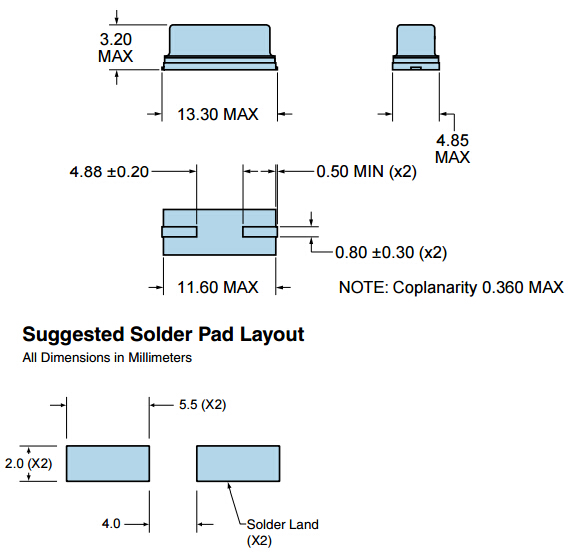

尺寸：13.30mm x 4.85mm

E1SFA12-3.6864M TR-Ecliptek-3.6864MHz-30PPM-12PF-49SMD，石英晶振，ECLIPTEK晶振,E1S晶振,E1SFA12-3.6864M TR晶振,貼片晶振,49SMD晶振,家庭影音系統晶振,石英晶振,無源晶振,攝像頭晶振,歐美進口晶振,高品質晶振，石英晶體諧振器，HC49/UP短2墊，表面安裝（SMD），3.2mm高金屬電阻焊接密封

訂購熱線：0755-27876565

RS-1

yijin-1

E1SFA12-3.6864M TR-Ecliptek-3.6864MHz-30PPM-12PF-49SMD，石英晶振，ECLIPTEK晶振,E1S晶振,E1SFA12-3.6864M TR晶振,貼片晶振,49SMD晶振,家庭影音系統晶振,石英晶振,無源晶振,攝像頭晶振,歐美進口晶振,高品質晶振，石英晶體諧振器，HC49/UP短2墊，表面安裝（SMD），3.2mm高金屬電阻焊接密封

yijin-2

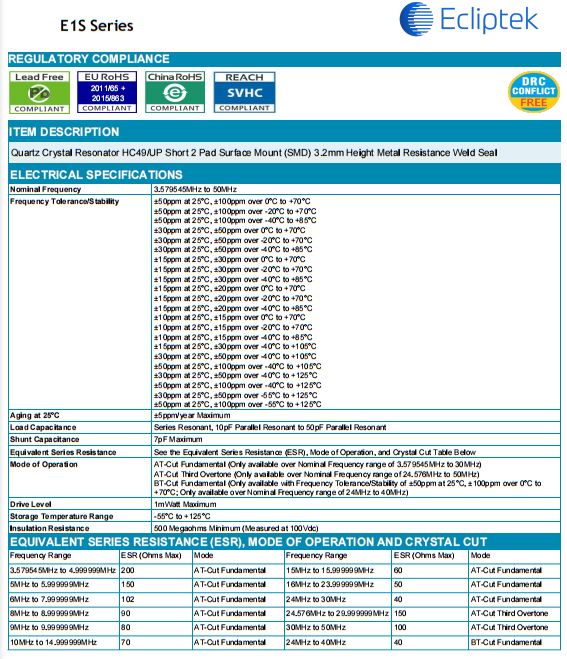

E1SFA12-3.6864M TR-Ecliptek-3.6864MHz-30PPM-12PF-49SMD

標稱頻率		3.579545MHz to 50MHz
容許頻率/穩定性		±50ppm at 25°C, ±100ppm over 0°C to +70°C ±50ppm at 25°C, ±100ppm over -20°C to +70°C ±50ppm at 25°C, ±100ppm over -40°C to +85°C ±30ppm at 25°C, ±50ppm over 0°C to +70°C ±30ppm at 25°C, ±50ppm over -20°C to +70°C ±30ppm at 25°C, ±50ppm over -40°C to +85°C ±15ppm at 25°C, ±30ppm over 0°C to +70°C ±15ppm at 25°C, ±30ppm over -20°C to +70°C ±15ppm at 25°C, ±30ppm over -40°C to +85°C ±15ppm at 25°C, ±20ppm over 0°C to +70°C ±15ppm at 25°C, ±20ppm over -20°C to +70°C ±15ppm at 25°C, ±20ppm over -40°C to +85°C ±10ppm at 25°C, ±15ppm over 0°C to +70°C ±10ppm at 25°C, ±15ppm over -20°C to +70°C ±10ppm at 25°C, ±15ppm over -40°C to +85°C ±15ppm at 25°C, ±30ppm over -40°C to +105°C ±30ppm at 25°C, ±50ppm over -40°C to +105°C ±50ppm at 25°C, ±100ppm over -40°C to +105°C ±30ppm at 25°C, ±50ppm over -40°C to +125°C ±50ppm at 25°C, ±100ppm over -40°C to +125°C ±30ppm at 25°C, ±50ppm over -55°C to +125°C ±50ppm at 25°C, ±100ppm over -55°C to +125°C
老化		±5ppm/year Maximum
負載電容		Series Resonant, 10pF Parallel Resonant to 50pF Parallel Resonant
并聯電容		7pF Maximum
等效串聯電阻		See the Equivalent Series Resistance (ESR), Mode of Operation, and Crystal Cut Table Below
工作模式		AT-Cut Fundamental (Only available over Nominal Frequency range of 3.579545MHz to 30MHz) AT-Cut Third Overtone (Only available over Nominal Frequency range of 24.576MHz to 50MHz) BT-Cut Fundamental (Only available with Frequency Tolerance/Stability of ±50ppm at 25°C, ±100ppm over 0°C to +70°C; Only available over Nominal Frequency range of 24MHz to 40MHz)
驅動電平		1mWatt Maximum
儲存溫度		-55°C to +125°C
絕緣電阻		500 Megaohms Minimum (Measured at 100Vdc)

yijin-3

E1SFA12-3.6864M TR-Ecliptek-3.6864MHz-30PPM-12PF-49SMD

E1S(1)

Ecliptek原廠編碼	生產商	系列	類型	頻率	頻率穩定性	頻率容差	負載電容
E1SJA18-7.3728M TR	Ecliptek晶振	E1S	MHz 晶體	7.3728 MHz	±30ppm	±15ppm	18pF
E1SCA18-8.000M TR	Ecliptek晶振	E1S	MHz 晶體	8 MHz	±100ppm	±50ppm	18pF
E1SFA18-25.000M TR	Ecliptek晶振	E1S	MHz 晶體	25 MHz	±50ppm	±30ppm	18pF
E1SJA18-4.000M TR	Ecliptek晶振	E1S	MHz 晶體	4 MHz	±30ppm	±15ppm	18pF
E1SJA18-25.000M TR	Ecliptek晶振	E1S	MHz 晶體	25 MHz	±30ppm	±15ppm	18pF
E1SEA18-8.000M TR	Ecliptek晶振	E1S	MHz 晶體	8 MHz	±50ppm	±30ppm	18pF
E1SDA12-25.000M TR	Ecliptek晶振	E1S	MHz 晶體	25 MHz	±50ppm	±30ppm	12pF
E1SFA12-3.6864M TR	Ecliptek晶振	E1S	MHz 晶體	3.6864 MHz	±50ppm	±30ppm	12pF
E1SJA18-6.000M TR	Ecliptek晶振	E1S	MHz 晶體	6 MHz	±30ppm	±15ppm	18pF
E1SJA18-18.432M TR	Ecliptek晶振	E1S	MHz 晶體	18.432 MHz	±30ppm	±15ppm	18pF
E1SFA18-4.000M TR	Ecliptek晶振	E1S	MHz 晶體	4 MHz	±50ppm	±30ppm	18pF
E1SJA18-14.31818M TR	Ecliptek晶振	E1S	MHz 晶體	14.31818 MHz	±30ppm	±15ppm	18pF
E1SJA18-6.144M TR	Ecliptek晶振	E1S	MHz 晶體	6.144 MHz	±30ppm	±15ppm	18pF
E1SJA18-28.63636M TR	Ecliptek晶振	E1S	MHz 晶體	28.63636 MHz	±30ppm	±15ppm	18pF
E1SJA18-13.000M TR	Ecliptek晶振	E1S	MHz 晶體	13 MHz	±30ppm	±15ppm	18pF
E1SJA18-19.6608M TR	Ecliptek晶振	E1S	MHz 晶體	19.6608 MHz	±30ppm	±15ppm	18pF
E1SJA18-9.8304M TR	Ecliptek晶振	E1S	MHz 晶體	9.8304 MHz	±30ppm	±15ppm	18pF
E1SJA18-18.000M TR	Ecliptek晶振	E1S	MHz 晶體	18 MHz	±30ppm	±15ppm	18pF
E1SJA18-20.000M TR	Ecliptek晶振	E1S	MHz 晶體	20 MHz	±30ppm	±15ppm	18pF
E1SJA18-14.7456M TR	Ecliptek晶振	E1S	MHz 晶體	14.7456 MHz	±30ppm	±15ppm	18pF
E1SCA18-7.3728M TR	Ecliptek晶振	E1S	MHz 晶體	7.3728 MHz	±100ppm	±50ppm	18pF
E1SEA18-16.000M TR	Ecliptek晶振	E1S	MHz 晶體	16 MHz	±50ppm	±30ppm	18pF
E1SEA18-12.000M TR	Ecliptek晶振	E1S	MHz 晶體	12 MHz	±50ppm	±30ppm	18pF
E1SJA18-10.000M TR	Ecliptek晶振	E1S	MHz 晶體	10 MHz	±30ppm	±15ppm	18pF
E1SJA18-12.000M TR	Ecliptek晶振	E1S	MHz 晶體	12 MHz	±30ppm	±15ppm	18pF
E1SJA18-11.0592M TR	Ecliptek晶振	E1S	MHz 晶體	11.0592 MHz	±30ppm	±15ppm	18pF
E1SJA18-8.000M TR	Ecliptek晶振	E1S	MHz 晶體	8 MHz	±30ppm	±15ppm	18pF
E1SJA18-16.000M TR	Ecliptek晶振	E1S	MHz 晶體	16 MHz	±30ppm	±15ppm	18pF
E1SJA18-3.579545M TR	Ecliptek晶振	E1S	MHz 晶體	3.579545 MHz	±30ppm	±15ppm	18pF
E1SJA18-4.194304M TR	Ecliptek晶振	E1S	MHz 晶體	4.194304 MHz	±30ppm	±15ppm	18pF
E1SJA18-16.9344M TR	Ecliptek晶振	E1S	MHz 晶體	16.9344 MHz	±30ppm	±15ppm	18pF
E1SJA18-5.000M TR	Ecliptek晶振	E1S	MHz 晶體	5 MHz	±30ppm	±15ppm	18pF
E1SJA18-13.500M TR	Ecliptek晶振	E1S	MHz 晶體	13.5 MHz	±30ppm	±15ppm	18pF
E1SJA18-9.216M TR	Ecliptek晶振	E1S	MHz 晶體	9.216 MHz	±30ppm	±15ppm	18pF
E1SJA18-12.288M TR	Ecliptek晶振	E1S	MHz 晶體	12.288 MHz	±30ppm	±15ppm	18pF
E1SJA18-4.500M TR	Ecliptek晶振	E1S	MHz 晶體	4.5 MHz	±30ppm	±15ppm	18pF
E1SJA18-15.000M TR	Ecliptek晶振	E1S	MHz 晶體	15 MHz	±30ppm	±15ppm	18pF
E1SJA18-4.433619M TR	Ecliptek晶振	E1S	MHz 晶體	4.433619 MHz	±30ppm	±15ppm	18pF
E1SJA18-16.384M TR	Ecliptek晶振	E1S	MHz 晶體	16.384 MHz	±30ppm	±15ppm	18pF
E1SJA18-6.7458M TR	Ecliptek晶振	E1S	MHz 晶體	6.7458 MHz	±30ppm	±15ppm	18pF
E1SJA18-15.360M TR	Ecliptek晶振	E1S	MHz 晶體	15.36 MHz	±30ppm	±15ppm	18pF
E1SDA18-25.000M TR	Ecliptek晶振	E1S	MHz 晶體	25 MHz	±50ppm	±30ppm	18pF
E1SJA18-4.9152M TR	Ecliptek晶振	E1S	MHz 晶體	4.9152 MHz	±30ppm	±15ppm	18pF
E1SGA18-25.000M TR	Ecliptek晶振	E1S	MHz 晶體	25 MHz	±30ppm	±15ppm	18pF
E1SJA18-24.000M TR	Ecliptek晶振	E1S	MHz 晶體	24 MHz	±30ppm	±15ppm	18pF
E1SJA18-3.6864M TR	Ecliptek晶振	E1S	MHz 晶體	3.6864 MHz	±30ppm	±15ppm	18pF
E1SJA18-24.576M TR	Ecliptek晶振	E1S	MHz 晶體	24.576 MHz	±30ppm	±15ppm	18pF
E1SJA18-27.000M TR	Ecliptek晶振	E1S	MHz 晶體	27 MHz	±30ppm	±15ppm	18pF
E1SEA18-24.000M TR	Ecliptek晶振	E1S	MHz 晶體	24 MHz	±50ppm	±30ppm	18pF
E1SJA18-30.000M TR	Ecliptek晶振	E1S	MHz 晶體	30 MHz	±30ppm	±15ppm	18pF
E1SJA18-10.240M TR	Ecliptek晶振	E1S	MHz 晶體	10.24 MHz	±30ppm	±15ppm	18pF
