當前位置：首頁 » 歐美晶振 » ECScrystal晶振 » ECS-196.6-20-46X,19.6608MHz,20PF,50PPM,ECS

prevnext

ECS-196.6-20-46X,19.6608MHz,20PF,50PPM,ECS

頻率：19.6608MHZ

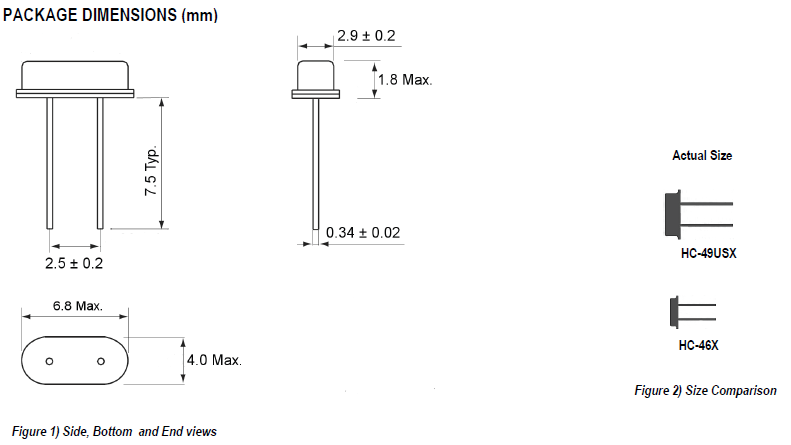

尺寸：11.35x4.65mm

ECS-196.6-20-46X,19.6608MHz,20PF,50PPM,ECS，美國進口ECS晶振,HC-46X是一種小型低壓電阻焊縫型穿孔石英晶體。將HC-49USX的占用面積減少50%。成本效益高，低調的，無鉛/RoHS兼容。

訂購熱線：0755-27876565

ECS-1

yijin-1

ECS-196.6-20-46X,19.6608MHz,20PF,50PPM,ECS，美國進口ECS晶振,HC-46X是一種小型低壓電阻焊縫型穿孔石英晶體。將HC-49USX的占用面積減少50%。成本效益高，低調的，無鉛/RoHS兼容。

yijin-2

ECS-196.6-20-46X,19.6608MHz,20PF,50PPM,ECS

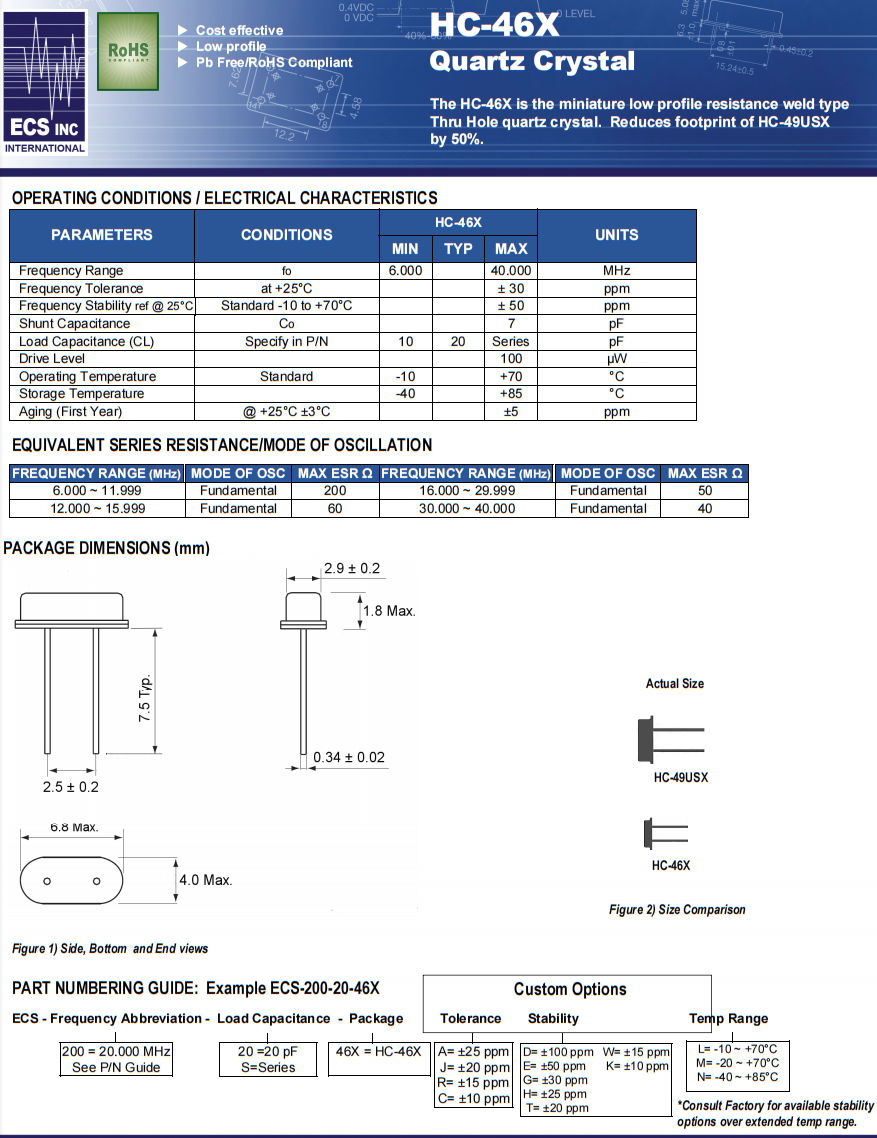

參數	環境	HC-46X			單位
參數	環境	最小值	典型的	最大值	單位
頻率	fo	6.000		40.000	MHz
頻率容差	at +25°C			± 30	ppm
頻率偏差度	Standard -10 to +70°C			± 50	ppm
并聯電容	Co			7	pF
負載電容	Specify in P/N	10	20	Series	pF
驅動電平				100	µW
工作溫度	Standard	--10		+70	°C
儲存溫度		--40		+85	°C
老化	@ +25°C ±3°C			±5	ppm

yijin-3

ECS-196.6-20-46X,19.6608MHz,20PF,50PPM,ECS

HC=46X

ECS原廠編碼	型號	頻率	頻率容差	頻率偏差度	負載電容	工作溫度
ECS-120-20-46X	HC-46X	12MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-122.8-20-46X	HC-46X	12.288MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-130-20-46X	HC-46X	13MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-135.6-20-46X	HC-46X	13.56MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-143-20-46X	HC-46X	14.31818MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-147.4-20-46X	HC-46X	14.7456MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-160-20-46X	HC-46X	16MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-184-20-46X	HC-46X	18.432MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-196.6-20-46X	HC-46X	19.6608MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-200-20-46X	HC-46X	20MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-245.7-20-46X	HC-46X	24.576MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-250-20-46X	HC-46X	25MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-270-20-46X	HC-46X	27MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-286.3-20-46X	HC-46X	28.63636MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-300-20-46X	HC-46X	30MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-330-20-46X	HC-46X	33MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-400-20-46X	HC-46X	40MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-10-13-1H	HC-49U(H)	1MHz	±25ppm	±30ppm	13pF	-10°C ~ 70°C
ECS-100-18-4-DN	HC-49US-DN	10MHz	±100ppm	±30ppm	18pF	-40°C ~ 85°C
ECS-110.5-32-4DN	HC-49US-DN	11.0592MHz	±100ppm	±30ppm	32pF	-40°C ~ 85°C
ECS-120-20-4DN	HC-49US-DN	12MHz	±100ppm	±30ppm	20pF	-40°C ~ 85°C
ECS-143-20-4DN	HC-49US-DN	14.31818MHz	±100ppm	±30ppm	20pF	-40°C ~ 85°C
ECS-160-20-4DN	HC-49US-DN	16MHz	±100ppm	±30ppm	20pF	-40°C ~ 85°C
ECS-184-20-4DN	HC-49US-DN	18.432MHz	±100ppm	±30ppm	20pF	-40°C ~ 85°C
ECS-196.6-20-4DN	HC-49US-DN	19.6608MHz	±100ppm	±30ppm	20pF	-40°C ~ 85°C
ECS-200-20-4DN	HC-49US-DN	20MHz	±100ppm	±30ppm	20pF	-40°C ~ 85°C
ECS-240-20-4DN	HC-49US-DN	24MHz	±100ppm	±30ppm	20pF	-40°C ~ 85°C
ECS-35-17-4DN	HC-49US-DN	3.579545MHz	±100ppm	±30ppm	17pF	-40°C ~ 85°C
ECS-36-20-4DN	HC-49US-DN	3.6864MHz	±100ppm	±30ppm	20pF	-40°C ~ 85°C
ECS-40-20-4DN	HC-49US-DN	4MHz	±100ppm	±30ppm	20pF	-40°C ~ 85°C
ECS-60-32-4DN	HC-49US-DN	6MHz	±100ppm	±30ppm	32pF	-40°C ~ 85°C
ECS-73-20-4DN	HC-49US-DN	7.3728MHz	±100ppm	±30ppm	20pF	-40°C ~ 85°C
ECS-80-18-4DN	HC-49US-DN	8MHz	±100ppm	±30ppm	18pF	-40°C ~ 85°C
ECS-100-20-4VX	HC-49USSX	10MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-110.5-20-4VX	HC-49USSX	11.0592MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-120-18-4VX	HC-49USSX	12MHz	±50ppm	±30ppm	18pF	-10°C ~ 70°C
ECS-120-32-4VX	HC-49USSX	12MHz	±50ppm	±30ppm	32pF	-10°C ~ 70°C
ECS-122.8-20-4VX	HC-49USSX	12.288MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-143-20-4VX	HC-49USSX	14.31818MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-147.4-20-4VX	HC-49USSX	14.7456MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-160-20-4VX	HC-49USSX	16MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-184-20-4VX	HC-49USSX	18.432MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-200-20-4VX	HC-49USSX	20MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-240-20-4VX	HC-49USSX	24MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-245.7-20-4VX	HC-49USSX	24.576MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-250-20-4VX	HC-49USSX	25MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-270-20-4VX	HC-49USSX	27MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-35-18-4VX	HC-49USSX	3.579545MHz	±50ppm	±30ppm	18pF	-10°C ~ 70°C
ECS-36-20-4VX	HC-49USSX	3.6864MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-40-20-4VX	HC-49USSX	4MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-60-20-4VX	HC-49USSX	6MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-80-20-4VX	HC-49USSX	8MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-98.3-20-4VX	HC-49USSX	9.8304MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-110.5-20-4XDN	HC-49USX-DN	11.0592MHz	±100ppm	±30ppm	20pF	-40°C ~ 85°C
ECS-120-20-4XDN	HC-49USX-DN	12MHz	±100ppm	±30ppm	20pF	-40°C ~ 85°C
ECS-143-20-4XDN	HC-49USX-DN	14.31818MHz	±100ppm	±30ppm	20pF	-40°C ~ 85°C
ECS-160-20-4X-B-DN	HC-49USX-DN	16MHz	±100ppm	±30ppm	20pF	-40°C ~ 85°C
ECS-160-20-4XDN	HC-49USX-DN	16MHz	±100ppm	±30ppm	20pF	-40°C ~ 85°C
ECS-184-20-4XDN	HC-49USX-DN	18.432MHz	±100ppm	±30ppm	20pF	-40°C ~ 85°C
ECS-196.6-20-4XDN	HC-49USX-DN	19.6608MHz	±100ppm	±30ppm	20pF	-40°C ~ 85°C
ECS-200-20-4XDN	HC-49USX-DN	20MHz	±100ppm	±30ppm	20pF	-40°C ~ 85°C
ECS-240-20-4XDN	HC-49USX-DN	24MHz	±100ppm	±30ppm	20pF	-40°C ~ 85°C
ECS-245.7-20-4XDN	HC-49USX-DN	24.576MHz	±100ppm	±30ppm	20pF	-40°C ~ 85°C
ECS-250-20-4X-F-DN	HC-49USX-DN	25MHz	±100ppm	±30ppm	20pF	-40°C ~ 85°C
ECS-35-17-4XDN	HC-49USX-DN	3.579545MHz	±100ppm	±30ppm	17pF	-40°C ~ 85°C
ECS-36-20-4XDN	HC-49USX-DN	3.6864MHz	±100ppm	±30ppm	20pF	-40°C ~ 85°C
ECS-40-20-4XDN	HC-49USX-DN	4MHz	±100ppm	±30ppm	20pF	-40°C ~ 85°C
ECS-60-32-4XDN	HC-49USX-DN	6MHz	±100ppm	±30ppm	32pF	-40°C ~ 85°C
ECS-73-20-4XDN	HC-49USX-DN	7.3728MHz	±100ppm	±30ppm	20pF	-40°C ~ 85°C
ECS-80-18-4XDN	HC-49USX-DN	8MHz	±100ppm	±30ppm	18pF	-40°C ~ 85°C
