當前位置：首頁 » 日本進口晶振 » 富士晶振 » 日產2012富士晶振,6G通訊設備晶振,FCT2M03276807E1晶振

prevnext

日產2012富士晶振,6G通訊設備晶振,FCT2M03276807E1晶振

頻率：32.768KHZ

尺寸：2012mm

日產2012富士晶振,6G通訊設備晶振,FCT2M03276807E1晶振，日本Fujicom晶振公司，富士晶振，高精度晶振，2012晶振，石英晶振，二腳晶振，無源晶振，KHz晶振，貼片晶振，6G通訊專用晶振，6G網絡晶振，高品質晶振，FCT-2M晶振，超小尺寸2.0×1.2×0.6 mm，高可靠性環保性能，高頻穩定性好，精度高，設計用于自動安裝和回流焊，符合RoHS標準/無鉛

訂購熱線：0755-27876565

NDK-2

yijin-1

yijin-2

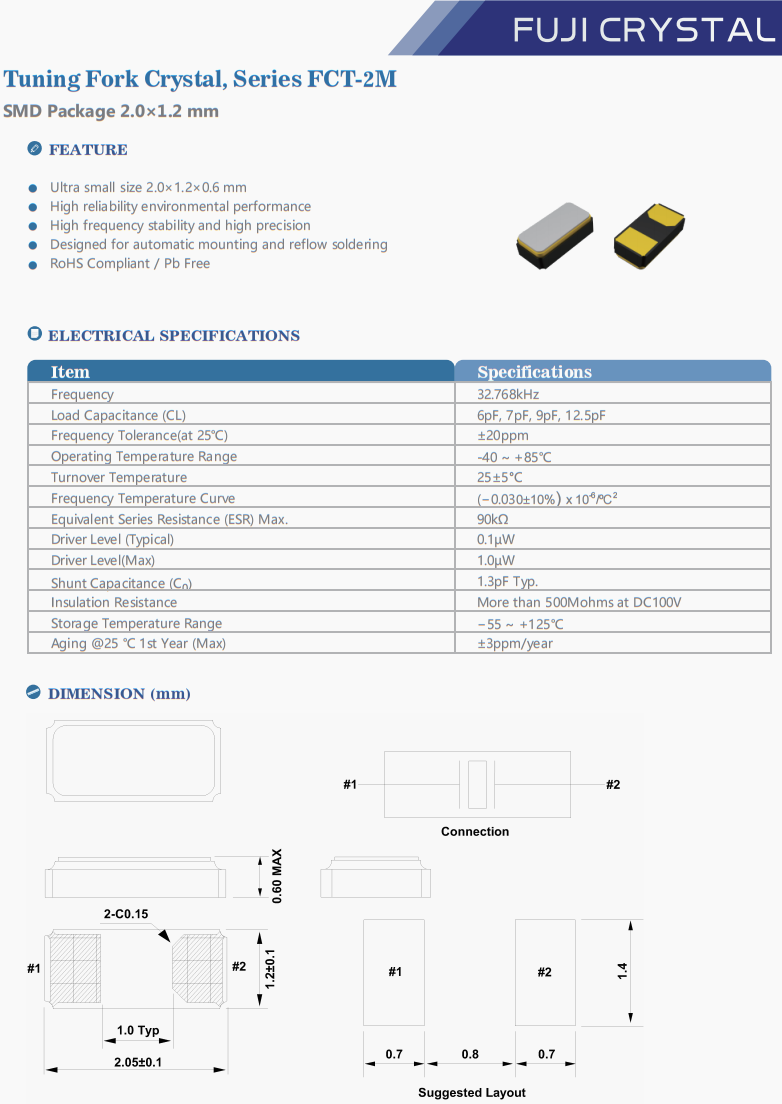

日產2012富士晶振,6G通訊設備晶振,FCT2M03276807E1晶振

項目	技術規格
頻率	32.768kHz
負載電容	6pF, 7pF, 9pF, 12.5pF
頻率容差	±20ppm
工作溫度	-40 ~ +85℃
周轉溫度	25±5°C
頻率溫度曲線	(−0.030± 10%) x 10-6/ºC2
等效串聯電阻最大值	90kΩ
驅動電平（標準）	0.1µW
驅動電平（最大）	1.0µW
分流電容	1.3pF Typ.
絕緣電阻	More than 500Mohms at DC100V
儲存溫度	− 55 ~ +125℃
老化	±3ppm/year

日產2012富士晶振,6G通訊設備晶振,FCT2M03276807E1晶振

FUJI原廠編碼	生產商品牌	型號	類型	頻率	頻率容差	負載電容	工作溫度
FCT2M03276805W6	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	5pF	0°C ~ 70°C
FCT2M03276807E5	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-20°C ~ 70°C
FCT2M03276806Y5	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-40°C ~ 85°C
FCT2M032768C5E3	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-20°C ~ 70°C
FCT2M03276807E6	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-20°C ~ 70°C
FCT2M03276806Y3	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-40°C ~ 85°C
FCT2M03276812U6	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12pF	-40°C ~ 105°C
FCT2M03276804D1	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	4pF	-10°C ~ 70°C
FCT2M03276810U6	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	10pF	-40°C ~ 105°C
FCT2M03276807D5	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-10°C ~ 70°C
FCT2M03276807S5	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-20°C ~ 75°C
FCT2M03276812Y1	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12pF	-40°C ~ 85°C
FCT2M03276806W3	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	0°C ~ 70°C
FCT2M03276809I6	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-40°C ~ 125°C
FCT2M03276809W5	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	0°C ~ 70°C
FCT2M03276806W6	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	0°C ~ 70°C
FCT2M03276804U6	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	4pF	-40°C ~ 105°C
FCT2M03276812D1	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12pF	-10°C ~ 70°C
FCT2M03276804W3	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	4pF	0°C ~ 70°C
FCT2M03276803W3	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	3pF	0°C ~ 70°C
FCT2M03276812S3	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12pF	-20°C ~ 75°C
FCT2M03276803U5	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	3pF	-40°C ~ 105°C
FCT2M03276805P5	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	5pF	-10°C ~ 60°C
FCT2M03276803P5	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	3pF	-10°C ~ 60°C
FCT2M03276803I6	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	3pF	-40°C ~ 125°C
FCT2M03276804P5	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	4pF	-10°C ~ 60°C
FCT2M032768C5R6	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-30°C ~ 70°C
FCT2M03276809P3	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-10°C ~ 60°C
FCT2M032768C5D3	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-10°C ~ 70°C
FCT2M03276805P3	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	5pF	-10°C ~ 60°C
FCT2M032768C5D5	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-10°C ~ 70°C
FCT2M03276809P5	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-10°C ~ 60°C
FCT2M03276805W1	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	5pF	0°C ~ 70°C
FCT2M032768C5S6	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-20°C ~ 75°C
FCT2M03276807P3	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-10°C ~ 60°C
FCT2M03276806I3	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-40°C ~ 125°C
FCT2M03276812S6	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12pF	-20°C ~ 75°C
FCT2M03276805P1	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	5pF	-10°C ~ 60°C
FCT2M03276806P1	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-10°C ~ 60°C
FCT2M03276806U3	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-40°C ~ 105°C
FCT2M03276806E6	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-20°C ~ 70°C
FCT2M03276807T6	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-30°C ~ 85°C
FCT2M032768C5Y5	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-40°C ~ 85°C
FCT2M03276812P3	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12pF	-10°C ~ 60°C
FCT2M032768C5I3	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-40°C ~ 125°C
FCT2M03276807E3	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-20°C ~ 70°C
FCT2M03276812U3	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12pF	-40°C ~ 105°C
FCT2M03276806R6	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-30°C ~ 70°C
FCT2M03276804S3	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	4pF	-20°C ~ 75°C
FCT2M03276804Y5	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	4pF	-40°C ~ 85°C
FCT2M03276804U3	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	4pF	-40°C ~ 105°C
FCT2M03276807T1	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-30°C ~ 85°C
FCT2M03276804D6	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	4pF	-10°C ~ 70°C
FCT2M03276812W3	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12pF	0°C ~ 70°C
FCT2M03276805S6	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	5pF	-20°C ~ 75°C
FCT2M03276805E5	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	5pF	-20°C ~ 70°C
FCT2M03276812R3	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12pF	-30°C ~ 70°C
FCT2M03276806S6	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-20°C ~ 75°C
FCT2M03276812T3	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12pF	-30°C ~ 85°C
FCT2M03276809R5	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-30°C ~ 70°C
FCT2M03276809R6	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-30°C ~ 70°C
FCT2M03276812E3	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12pF	-20°C ~ 70°C
FCT2M03276809Y1	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-40°C ~ 85°C
FCT2M03276809Y3	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-40°C ~ 85°C
FCT2M03276806R3	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-30°C ~ 70°C
FCT2M03276806S1	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-20°C ~ 75°C
FCT2M03276805Y5	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	5pF	-40°C ~ 85°C
FCT2M03276807Y5	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-40°C ~ 85°C
FCT2M03276809Y6	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-40°C ~ 85°C
FCT2M03276804S5	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	4pF	-20°C ~ 75°C
FCT2M032768C5I5	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-40°C ~ 125°C
FCT2M03276809S3	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-20°C ~ 75°C
FCT2M03276806E3	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-20°C ~ 70°C
FCT2M03276804T3	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	4pF	-30°C ~ 85°C
FCT2M03276809D6	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-10°C ~ 70°C
FCT2M03276806T6	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-30°C ~ 85°C
FCT2M03276807T5	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-30°C ~ 85°C
FCT2M03276806T3	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-30°C ~ 85°C
FCT2M03276803E3	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	3pF	-20°C ~ 70°C
FCT2M032768C5P3	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-10°C ~ 60°C
FCT2M03276803T5	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	3pF	-30°C ~ 85°C
FCT2M03276812U5	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12pF	-40°C ~ 105°C
FCT2M03276807R6	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-30°C ~ 70°C
FCT2M03276807Y1	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-40°C ~ 85°C
FCT2M03276805D3	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	5pF	-10°C ~ 70°C
FCT2M03276809D1	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-10°C ~ 70°C
FCT2M03276807D6	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-10°C ~ 70°C
FCT2M03276812W6	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12pF	0°C ~ 70°C
FCT2M03276807S6	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-20°C ~ 75°C
FCT2M03276803Y5	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	3pF	-40°C ~ 85°C
FCT2M03276812P5	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12pF	-10°C ~ 60°C
FCT2M03276809T3	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-30°C ~ 85°C
FCT2M03276807W6	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	0°C ~ 70°C
FCT2M03276804Y6	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	4pF	-40°C ~ 85°C
FCT2M03276806D5	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-10°C ~ 70°C
FCT2M03276812W5	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12pF	0°C ~ 70°C
FCT2M03276803I3	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	3pF	-40°C ~ 125°C
FCT2M03276805Y6	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	5pF	-40°C ~ 85°C
FCT2M03276807E1	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-20°C ~ 70°C
FCT2M03276809P6	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-10°C ~ 60°C
FCT2M03276809E6	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-20°C ~ 70°C
FCT2M03276807Y3	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-40°C ~ 85°C
FCT2M032768C5W5	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	0°C ~ 70°C
FCT2M03276803S3	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	3pF	-20°C ~ 75°C
FCT2M032768C5U3	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-40°C ~ 105°C
FCT2M03276812E1	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12pF	-20°C ~ 70°C
FCT2M03276809E5	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-20°C ~ 70°C
FCT2M03276805T1	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	5pF	-30°C ~ 85°C
FCT2M03276812T6	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12pF	-30°C ~ 85°C
FCT2M03276807R1	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-30°C ~ 70°C
FCT2M03276806S3	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-20°C ~ 75°C
FCT2M032768C5T6	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-30°C ~ 85°C
FCT2M03276807S1	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-20°C ~ 75°C
FCT2M03276804D5	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	4pF	-10°C ~ 70°C
FCT2M03276812R5	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12pF	-30°C ~ 70°C
FCT2M03276803U3	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	3pF	-40°C ~ 105°C
FCT2M03276803Y3	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	3pF	-40°C ~ 85°C
FCT2M032768C5I6	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-40°C ~ 125°C
FCT2M032768C5Y1	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-40°C ~ 85°C
FCT2M03276804W5	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	4pF	0°C ~ 70°C
FCT2M032768C5U6	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-40°C ~ 105°C
FCT2M03276804R1	Fuji晶振	FCT-2M	kHz Crystal (Tuning Fork)	32.768 kHz	-	4pF	-30°C ~ 70°C
