日本富士圓柱無源晶振,FCT2T03276809P3插件晶振,6G路由器晶振

頻率：32.768KHZ

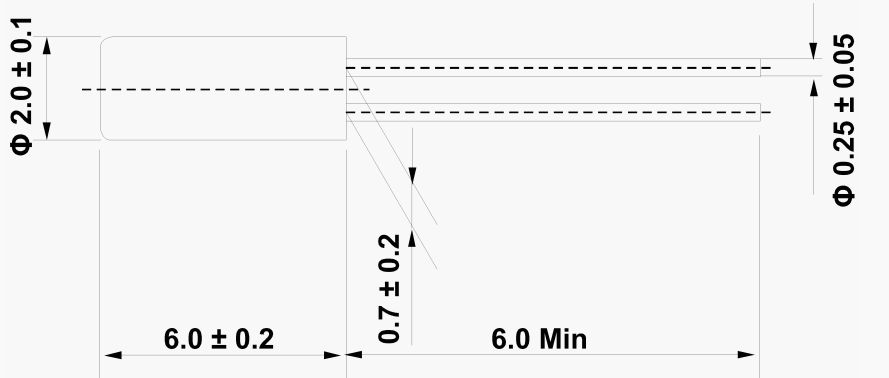

尺寸：2*6mm

日本富士圓柱無源晶振,FCT2T03276809P3插件晶振,6G路由器晶振,日本Fujicom晶振公司，富士晶振，高精度晶振，圓柱晶振，2*6晶振，石英晶振，二腳晶振，無源晶振，KHz晶振，插件晶振，6G通訊專用晶振，6G路由i去晶振，高品質晶振，F(xiàn)CT-2T晶振，小尺寸φ2×6mm，大量的標準頻率，更高的頻率可拉性和更低的等效串聯電阻，鐘表的最佳選擇，符合RoHS標準/無鉛

訂購熱線：0755-27876565

NDK-2

yijin-1

日本富士圓柱無源晶振,FCT2T03276809P3插件晶振,6G路由器晶振,日本Fujicom晶振公司，富士晶振，高精度晶振，圓柱晶振，2*6晶振，石英晶振，二腳晶振，無源晶振，KHz晶振，插件晶振，6G通訊專用晶振，6G路由i去晶振，高品質晶振，F(xiàn)CT-2T晶振，小尺寸φ2×6mm，大量的標準頻率，更高的頻率可拉性和更低的等效串聯電阻，鐘表的最佳選擇，符合RoHS標準/無鉛

yijin-2

日本富士圓柱無源晶振,FCT2T03276809P3插件晶振,6G路由器晶振

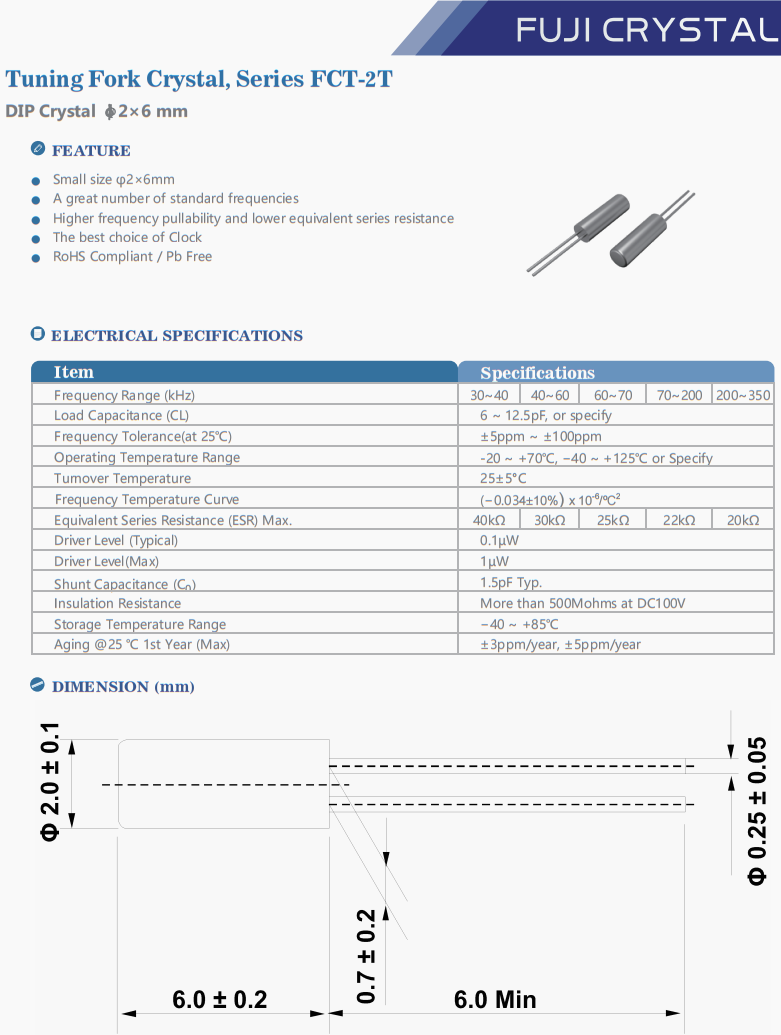

項目	技術規格
頻率	30~40	40~60	60~70	70~200	200~350
負載電容	6 ~ 12.5pF, or specify
頻率容差	±5ppm ~ ±100ppm
工作溫度	-20 ~ +70℃, −40 ~ +125℃ or Specify
周轉溫度	25±5°C
頻率溫度曲線	(−0.034± 10%) x 10-6/ºC2
等效串聯電阻最大值	40kΩ	30kΩ	25kΩ	22kΩ	20kΩ
驅動電平（標準）	0.1µW
驅動電平（最大）	1µW
分流電容	1.5pF Typ.
絕緣電阻	More than 500Mohms at DC100V
儲存溫度	−40 ~ +85℃
老化	±3ppm/year, ±5ppm/year

yijin-3

日本富士圓柱無源晶振,FCT2T03276809P3插件晶振,6G路由器晶振

FUJI原廠編碼	生產商品牌	型號	類型	頻率	頻率容差	負載電容	工作溫度
FCT2T032768C5T3	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-30°C ~ 85°C
FCT2T032768C5R3	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-30°C ~ 70°C
FCT2T032768C5Y3	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C
FCT2T032768C5E3	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-20°C ~ 70°C
FCT2T032768C5D3	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-10°C ~ 70°C
FCT2T032768C5P3	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-10°C ~ 60°C
FCT2T032768C5W3	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	0°C ~ 70°C
FCT2T03276806D3	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-10°C ~ 70°C
FCT2T032768C5W1	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	0°C ~ 70°C
FCT2T03276809E1	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-20°C ~ 70°C
FCT2T03276806P1	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-10°C ~ 60°C
FCT2T03276808R1	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	8pF	-30°C ~ 70°C
FCT2T03276807P1	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-10°C ~ 60°C
FCT2T03276809R1	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-30°C ~ 70°C
FCT2T03276808E1	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	8pF	-20°C ~ 70°C
FCT2T03276807T1	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-30°C ~ 85°C
FCT2T03276808P1	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	8pF	-10°C ~ 60°C
FCT2T03276808T1	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	8pF	-30°C ~ 85°C
FCT2T03276807W1	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	0°C ~ 70°C
FCT2T03276806T1	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-30°C ~ 85°C
FCT2T03276806W1	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	0°C ~ 70°C
FCT2T03276807R1	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-30°C ~ 70°C
FCT2T03276809P1	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-10°C ~ 60°C
FCT2T03276809Y1	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-40°C ~ 85°C
FCT2T03276809D1	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-10°C ~ 70°C
FCT2T03276806R1	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-30°C ~ 70°C
FCT2T03276807E1	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-20°C ~ 70°C
FCT2T03276807Y1	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-40°C ~ 85°C
FCT2T03276809T1	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-30°C ~ 85°C
FCT2T03276808W1	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	8pF	0°C ~ 70°C
FCT2T03276808Y1	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	8pF	-40°C ~ 85°C
FCT2T03276809W1	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	0°C ~ 70°C
FCT2T03276806Y1	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-40°C ~ 85°C
FCT2T03276807D1	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-10°C ~ 70°C
FCT2T03276808D1	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	8pF	-10°C ~ 70°C
FCT2T03276806E1	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-20°C ~ 70°C
FCT2T03276806D1	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-10°C ~ 70°C
FCT2T03276809W3	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	0°C ~ 70°C
FCT2T03276807Y3	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-40°C ~ 85°C
FCT2T03276806Y3	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-40°C ~ 85°C
FCT2T03276807W3	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	0°C ~ 70°C
FCT2T03276808W3	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	8pF	0°C ~ 70°C
FCT2T03276807D3	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-10°C ~ 70°C
FCT2T032768C5T1	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-30°C ~ 85°C
FCT2T03276809T3	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-30°C ~ 85°C
FCT2T03276806R3	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-30°C ~ 70°C
FCT2T03276806T3	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-30°C ~ 85°C
FCT2T03276809D3	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-10°C ~ 70°C
FCT2T03276808P3	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	8pF	-10°C ~ 60°C
FCT2T032768C5Y1	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-40°C ~ 85°C
FCT2T03276809Y3	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-40°C ~ 85°C
FCT2T032768C5D1	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-10°C ~ 70°C
FCT2T03276809P3	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-10°C ~ 60°C
FCT2T03276807E3	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-20°C ~ 70°C
FCT2T032768C5R1	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-30°C ~ 70°C
FCT2T03276809E3	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-20°C ~ 70°C
FCT2T03276807T3	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-30°C ~ 85°C
FCT2T03276808E3	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	8pF	-20°C ~ 70°C
FCT2T032768C5E1	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-20°C ~ 70°C
FCT2T03276806E3	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-20°C ~ 70°C
FCT2T03276808Y3	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	8pF	-40°C ~ 85°C
FCT2T03276807R3	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-30°C ~ 70°C
FCT2T03276806P3	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-10°C ~ 60°C
FCT2T03276806W3	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	0°C ~ 70°C
FCT2T03276807P3	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-10°C ~ 60°C
FCT2T03276809R3	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-30°C ~ 70°C
FCT2T032768C5P1	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-10°C ~ 60°C
FCT2T03276808R3	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	8pF	-30°C ~ 70°C
FCT2T03276808T3	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	8pF	-30°C ~ 85°C
FCT2T03276808D3	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	8pF	-10°C ~ 70°C
FCT2T032768C5E7	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-20°C ~ 70°C
FCT2T032768C5Y7	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-40°C ~ 85°C
FCT2T03276807D7	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-10°C ~ 70°C
FCT2T03276808D7	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	8pF	-10°C ~ 70°C
FCT2T03276806T7	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-30°C ~ 85°C
FCT2T03276806R7	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-30°C ~ 70°C
FCT2T032768C5P7	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-10°C ~ 60°C
FCT2T03276809E7	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-20°C ~ 70°C
FCT2T03276807P7	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-10°C ~ 60°C
FCT2T03276809R7	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-30°C ~ 70°C
FCT2T03276807T7	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-30°C ~ 85°C
FCT2T03276807R7	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-30°C ~ 70°C
FCT2T03276809D7	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-10°C ~ 70°C
FCT2T03276808R7	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	8pF	-30°C ~ 70°C
FCT2T032768C5W7	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	0°C ~ 70°C
FCT2T03276809P7	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-10°C ~ 60°C
FCT2T03276809W7	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	0°C ~ 70°C
FCT2T03276807E7	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-20°C ~ 70°C
FCT2T03276808P7	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	8pF	-10°C ~ 60°C
FCT2T032768C5D7	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-10°C ~ 70°C
FCT2T03276806P7	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-10°C ~ 60°C
FCT2T03276808Y7	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	8pF	-40°C ~ 85°C
FCT2T03276808E7	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	8pF	-20°C ~ 70°C
FCT2T03276806E7	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-20°C ~ 70°C
FCT2T03276806W7	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	0°C ~ 70°C
FCT2T03276809Y7	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-40°C ~ 85°C
FCT2T03276807Y7	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-40°C ~ 85°C
FCT2T032768C5T7	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-30°C ~ 85°C
FCT2T03276809T7	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-30°C ~ 85°C
FCT2T03276807W7	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	0°C ~ 70°C
FCT2T03276808W7	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	8pF	0°C ~ 70°C
FCT2T03276806D7	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-10°C ~ 70°C
FCT2T032768C5R7	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-30°C ~ 70°C
FCT2T03276806Y7	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-40°C ~ 85°C
FCT2T03276808T7	Fuji晶振	FCT-2T	kHz Crystal (Tuning Fork)	32.768 kHz	-	8pF	-30°C ~ 85°C
