當前位置：首頁 » 歐美晶振 » IQD晶振 » IQD晶振|4SMX晶振|LFXTAL070359Bulk|5032進口晶振

prevnext

IQD晶振|4SMX晶振|LFXTAL070359Bulk|5032進口晶振

頻率：8.192MHz

尺寸：5.0mm×3.2mm

IQD晶振|4SMX晶振|LFXTAL070359Bulk|5032進口晶振,IQD晶振,4SMX陶瓷晶振,無源晶振,LFXTAL070359Bulk晶振,進口晶振,石英晶體諧振器,5032mm晶振,二腳貼片晶振,SMD晶體,頻率8.192MHz,負載10pF,頻率容差50ppm,工作溫度范圍-10~60°C,低成本晶振,無鉛環保晶振,高可靠性晶振,數字電視晶振,家用網關晶振,藍牙模塊晶振,低姿態應用晶振.

訂購熱線：0755-27876565

IQD晶振|4SMX晶振|LFXTAL070359Bulk|5032進口晶振,IQD晶振,4SMX陶瓷晶振,無源晶振,LFXTAL070359Bulk晶振,進口晶振,石英晶體諧振器,5032mm晶振,二腳貼片晶振,SMD晶體,頻率8.192MHz,負載10pF,頻率容差50ppm,工作溫度范圍-10~60°C,低成本晶振,無鉛環保晶振,高可靠性晶振,數字電視晶振,家用網關晶振,藍牙模塊晶振,低姿態應用晶振.

yijin-2 IQD晶振|4SMX晶振|LFXTAL070359Bulk|5032進口晶振規格表

參數	數值
頻率	8.192MHz
頻率容差@ 25°C ± 3°C	±50ppm
頻率穩定性	±50ppm
工作溫度	-10~60°C
儲存溫度	-40~85°C
負載	10pF
并聯電容	7pF typ
驅動電平	100µW max.
電阻	300.00Ω max
老化@ 25°C ± 3°C	±5.0ppm per year max

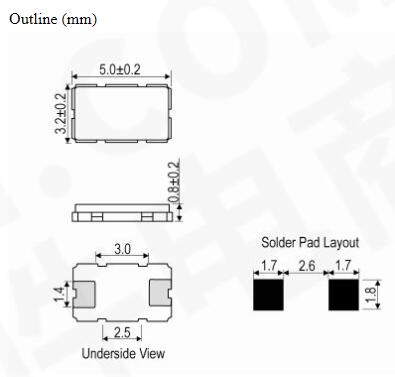

yijin-3 IQD晶振|4SMX晶振|LFXTAL070359Bulk|5032進口晶振尺寸圖

編碼	型號	頻率	頻率容差	頻率穩定性	工作溫度	負載
LFXTAL023899Bulk	87SMX	3.6864MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL023899Cutt	87SMX	3.6864MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL023899Reel	87SMX	3.6864MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL052142Bulk	87SMX	3.6864MHz	±50ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL052142Reel	87SMX	3.6864MHz	±50ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL056684Bulk	87SMX	3.6864MHz	±50ppm	±50ppm	-40°C to 85°C	16.00pF
LFXTAL056684Reel	87SMX	3.6864MHz	±50ppm	±50ppm	-40°C to 85°C	16.00pF
LFXTAL073137Reel	87SMX	3.6864MHz	±50ppm	±50ppm	-40°C to 85°C	30.00pF
LFXTAL073293Cutt	87SMX	3.6864MHz	±100ppm	±150ppm	-40°C to 90°C	16.00pF
LFXTAL022544Reel	87SMX	4.0MHz	±50ppm	±100ppm	-40°C to 90°C	30.00pF
LFXTAL029774Bulk	87SMX	4.0MHz	±50ppm	±100ppm	-20°C to 70°C	30.00pF
LFXTAL029774Cutt	87SMX	4.0MHz	±50ppm	±100ppm	-20°C to 70°C	30.00pF
LFXTAL029774Reel	87SMX	4.0MHz	±50ppm	±100ppm	-20°C to 70°C	30.00pF
LFXTAL057771Cutt	87SMX	4.0MHz	±50ppm	±100ppm	-40°C to 85°C	30.00pF
LFXTAL057801Reel	87SMX	4.0MHz	±30ppm	±50ppm	-40°C to 85°C	20.00pF
LFXTAL058357Bulk	87SMX	4.0MHz	±15ppm	±100ppm	-55°C to 105°C	30.00pF
LFXTAL058357Cutt	87SMX	4.0MHz	±15ppm	±100ppm	-55°C to 105°C	30.00pF
LFXTAL058357Reel	87SMX	4.0MHz	±15ppm	±100ppm	-55°C to 105°C	30.00pF
LFXTAL073195Reel	87SMX	4.0MHz	±50ppm	±50ppm	-40°C to 85°C	15.00pF
LFXTAL073201Cutt	87SMX	4.0MHz	±50ppm	±100ppm	-40°C to 85°C	16.00pF
LFXTAL073239Bulk	87SMX	4.0MHz	±30ppm	±100ppm	-40°C to 85°C	30.00pF
LFXTAL073239Reel	87SMX	4.0MHz	±30ppm	±100ppm	-40°C to 85°C	30.00pF
LFXTAL073445Reel	87SMX	4.0MHz	±30ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL076128Reel	87SMX	4.0MHz	±50ppm	±50ppm	-40°C to 85°C	18.00pF
LFXTAL077252Cutt	87SMX	4.0MHz	±50ppm	±50ppm	-20°C to 70°C	30.00pF
LFXTAL083532Cutt	87SMX	4.0MHz	±30ppm	±30ppm	-40°C to 85°C	20.00pF
LFXTAL083532Reel	87SMX	4.0MHz	±30ppm	±30ppm	-40°C to 85°C	20.00pF
LFXTAL083563Reel	87SMX	4.0MHz	±30ppm	±50ppm	-10°C to 60°C	16.00pF
LFXTAL073237Cutt	87SMX	4.096MHz	±100ppm	±100ppm	-40°C to 85°C	30.00pF
LFXTAL023399Bulk	87SMX	4.9152MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL023399Cutt	87SMX	4.9152MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL023399Reel	87SMX	4.9152MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL073191Cutt	87SMX	4.9152MHz	±50ppm	±100ppm	-40°C to 85°C	16.00pF
LFXTAL032749Reel	87SMX	6.0MHz	±20ppm	±30ppm	-40°C to 85°C	30.00pF
LFXTAL037119Bulk	87SMX	6.0MHz	±50ppm	±100ppm	-20°C to 70°C	30.00pF
LFXTAL037119Reel	87SMX	6.0MHz	±50ppm	±100ppm	-20°C to 70°C	30.00pF
LFXTAL083533Reel	87SMX	6.0MHz	±30ppm	±30ppm	-40°C to 85°C	20.00pF
LFXTAL083535Cutt	87SMX	6.144MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL083535Reel	87SMX	6.144MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL023628Bulk	87SMX	7.3728MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL023628Reel	87SMX	7.3728MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL065699Cutt	87SMX	7.902708MHz	±100ppm	±100ppm	-40°C to 85°C	30.00pF
LFXTAL065699Reel	87SMX	7.902708MHz	±100ppm	±100ppm	-40°C to 85°C	30.00pF
LFXTAL023401Bulk	87SMX	8.0MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL023401Cutt	87SMX	8.0MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL023401Reel	87SMX	8.0MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL056525Bulk	87SMX	8.0MHz	±50ppm	±100ppm	-40°C to 85°C	30.00pF
LFXTAL059455Cutt	87SMX	8.0MHz	±50ppm	±100ppm	-40°C to 85°C	16.00pF
LFXTAL059455Reel	87SMX	8.0MHz	±50ppm	±100ppm	-40°C to 85°C	16.00pF
LFXTAL076060Reel	87SMX	8.0MHz	±50ppm	±100ppm	-20°C to 70°C	SR
LFXTAL083499Reel	87SMX	8.0MHz	±50ppm	±100ppm	-40°C to 85°C	18.00pF
LFXTAL083528Cutt	87SMX	8.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL083528Reel	87SMX	8.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL033471Reel	87SMX	8.192MHz	±30ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL033867Bulk	87SMX	9.8304MHz	±30ppm	±50ppm	-20°C to 70°C	18.00pF
LFXTAL083498Reel	87SMX	9.8304MHz	±50ppm	±100ppm	-40°C to 85°C	18.00pF
LFXTAL083529Cutt	87SMX	9.8304MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL083529Reel	87SMX	9.8304MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL023561Cutt	87SMX	10.0MHz	±50ppm	±100ppm	-20°C to 70°C	20.00pF
LFXTAL023561Reel	87SMX	10.0MHz	±50ppm	±100ppm	-20°C to 70°C	20.00pF
LFXTAL073675Reel	87SMX	10.0MHz	±30ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL083536Cutt	87SMX	10.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL023372Cutt	87SMX	11.0592MHz	±50ppm	±100ppm	-20°C to 70°C	20.00pF
LFXTAL023372Reel	87SMX	11.0592MHz	±50ppm	±100ppm	-20°C to 70°C	20.00pF
LFXTAL023524Reel	87SMX	11.0592MHz	±50ppm	±100ppm	-20°C to 70°C	30.00pF
LFXTAL076416Reel	87SMX	11.0592MHz	±50ppm	±50ppm	-40°C to 85°C	10.00pF
LFXTAL083537Cutt	87SMX	11.0592MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL083537Reel	87SMX	11.0592MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL050029Reel	87SMX	12.0MHz	±50ppm	±100ppm	-40°C to 85°C	20.00pF
LFXTAL056949Bulk	87SMX	12.0MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL056949Cutt	87SMX	12.0MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL056949Reel	87SMX	12.0MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL072590Cutt	87SMX	12.0MHz	±50ppm	±100ppm	-40°C to 85°C	16.00pF
LFXTAL072591Reel	87SMX	12.0MHz	±50ppm	±50ppm	-40°C to 85°C	16.00pF
LFXTAL075188Bulk	87SMX	12.0MHz	±50ppm	±100ppm	-40°C to 85°C	30.00pF
LFXTAL075188Reel	87SMX	12.0MHz	±50ppm	±100ppm	-40°C to 85°C	30.00pF
LFXTAL077403Cutt	87SMX	12.0MHz	±10ppm	±30ppm	-40°C to 85°C	16.00pF
LFXTAL083497Reel	87SMX	12.0MHz	±50ppm	±100ppm	-40°C to 85°C	18.00pF
LFXTAL083530Reel	87SMX	12.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL060787Cutt	87SMX	14.7456MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL060787Reel	87SMX	14.7456MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL023688Cutt	87SMX	16.0MHz	±50ppm	±100ppm	-20°C to 70°C	20.00pF
LFXTAL032756Reel	87SMX	16.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL033689Reel	87SMX	16.0MHz	±30ppm	±50ppm	-20°C to 70°C	SR
LFXTAL050025Reel	87SMX	16.0MHz	±50ppm	±100ppm	-40°C to 85°C	30.00pF
LFXTAL052725Bulk	87SMX	16.0MHz	±50ppm	±100ppm	-20°C to 70°C	SR
LFXTAL052725Cutt	87SMX	16.0MHz	±50ppm	±100ppm	-20°C to 70°C	SR
LFXTAL052725Reel	87SMX	16.0MHz	±50ppm	±100ppm	-20°C to 70°C	SR
LFXTAL058519Cutt	87SMX	16.0MHz	±50ppm	±100ppm	-40°C to 85°C	20.00pF
LFXTAL058519Reel	87SMX	16.0MHz	±50ppm	±100ppm	-40°C to 85°C	20.00pF
LFXTAL067749Bulk	87SMX	16.0MHz	±30ppm	±50ppm	-40°C to 85°C	30.00pF
LFXTAL073118Cutt	87SMX	16.0MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL073118Reel	87SMX	16.0MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL083496Reel	87SMX	16.0MHz	±50ppm	±100ppm	-40°C to 85°C	18.00pF
LFXTAL083531Cutt	87SMX	16.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL083531Reel	87SMX	16.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL023496Bulk	87SMX	18.432MHz	±50ppm	±100ppm	-20°C to 70°C	20.00pF
LFXTAL023496Cutt	87SMX	18.432MHz	±50ppm	±100ppm	-20°C to 70°C	20.00pF
LFXTAL023496Reel	87SMX	18.432MHz	±50ppm	±100ppm	-20°C to 70°C	20.00pF
LFXTAL083539Cutt	87SMX	19.6608MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL055924Bulk	87SMX	20.0MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL055924Cutt	87SMX	20.0MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL055924Reel	87SMX	20.0MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL083625Cutt	87SMX	20.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL083625Reel	87SMX	20.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL072723Cutt	87SMX	22.1184MHz	±50ppm	±100ppm	-40°C to 85°C	16.00pF
LFXTAL083534Cutt	87SMX	22.1184MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL083534Reel	87SMX	22.1184MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL058564Reel	87SMX	24.0MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL065724Cutt	87SMX	25.0MHz	±50ppm	±100ppm	-10°C to 60°C	16.00pF
LFXTAL070359Bulk	4SMX	8.192MHz	±50ppm	±50ppm	-10°C to 60°C	10.00pF
LFXTAL029659Reel	4SMX	14.7456MHz	±50ppm	±100ppm	-10°C to 60°C	30.00pF
LFXTAL055576Bulk	4SMX	48.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL055576Reel	4SMX	48.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL034565Reel	3SMX	13.0MHz	±50ppm	±50ppm	-10°C to 60°C	16.00pF
LFXTAL030778Reel	3SMX	25.0MHz	±30ppm	±50ppm	-20°C to 70°C	20.00pF
LFXTAL030277Bulk	14SMX	8.0MHz	±50ppm	±50ppm	-40°C to 90°C	30.00pF
LFXTAL034888Reel	14SMX	8.0MHz	±50ppm	±50ppm	-40°C to 85°C	30.00pF
LFXTAL036947Reel	14SMX	8.0MHz	±30ppm	±50ppm	-40°C to 85°C	16.00pF
LFXTAL017702Reel	14SMX	10.0MHz	±100ppm	±100ppm	-20°C to 70°C	30.00pF
LFXTAL035488Bulk	14SMX	12.0MHz	±50ppm	±50ppm	-40°C to 85°C	10.00pF
LFXTAL033277Bulk	14SMX	13.0MHz	±30ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL037013Reel	14SMX	16.0MHz	±25ppm	±50ppm	-40°C to 85°C	20.00pF
LFXTAL033276Bulk	14SMX	24.576MHz	±30ppm	±30ppm	-40°C to 85°C	20.00pF
LFXTAL016263Bulk	14SMX	25.0MHz	±30ppm	±50ppm	-10°C to 60°C	12.00pF
LFXTAL059214Bulk	14SMX	25.0MHz	±10ppm	±15ppm	-40°C to 85°C	18.00pF
LFXTAL083623Cutt	14SMX	74.25MHz	±20ppm	±20ppm	-40°C to 85°C	15.00pF
LFXTAL024635Bulk	6SMX	3.6864MHz	±50ppm	±50ppm	-10°C to 60°C	16.00pF
LFXTAL024334Reel	6SMX	4.0MHz	±50ppm	±50ppm	-10°C to 60°C	30.00pF
LFXTAL051627Reel	6SMX	5.0MHz	±50ppm	±50ppm	-20°C to 70°C	12.00pF
LFXTAL060146Reel	6SMX	7.68MHz	±30ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL027630Reel	6SMX	8.0MHz	±50ppm	±50ppm	-10°C to 60°C	22.00pF
LFXTAL026511Reel	6SMX	16.0MHz	±30ppm	±50ppm	-10°C to 60°C	16.00pF
LFXTAL027641Bulk	6SMX	16.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
