當前位置：首頁 » 歐美晶振 » IQD晶振 » IQD晶振|IQXC-217晶振|LFXTAL084882|千赫晶體KHZ

prevnext

IQD晶振|IQXC-217晶振|LFXTAL084882|千赫晶體KHZ

頻率：32.768KHz

尺寸：3.2mm×1.5mm

IQD晶振|IQXC-217晶振|LFXTAL084882|千赫晶體KHZ,IQD晶振,IQXC-217石英晶體,千赫晶體KHZ,LFXTAL084882晶振,無源晶振,3215mm晶振,晶體諧振器,貼片晶振,二腳封裝晶振,頻率32.768KHz,負載12.5pF,頻率容差20ppm,工作溫度范圍-40~85°C,高可靠性晶振,小體積晶振,高品質晶振,智能手表晶振,時鐘鐘表晶振,數碼相機晶振,無線接入點晶振.

訂購熱線：0755-27876565

IQD晶振|IQXC-217晶振|LFXTAL084882|千赫晶體KHZ,IQD晶振,IQXC-217石英晶體,千赫晶體KHZ,LFXTAL084882晶振,無源晶振,3215貼片晶振,晶體諧振器,貼片晶振,二腳封裝晶振,頻率32.768KHz,負載12.5pF,頻率容差20ppm,工作溫度范圍-40~85°C,高可靠性晶振,小體積晶振,高品質晶振,智能手表晶振,時鐘鐘表晶振,數碼相機晶振,無線接入點晶振.

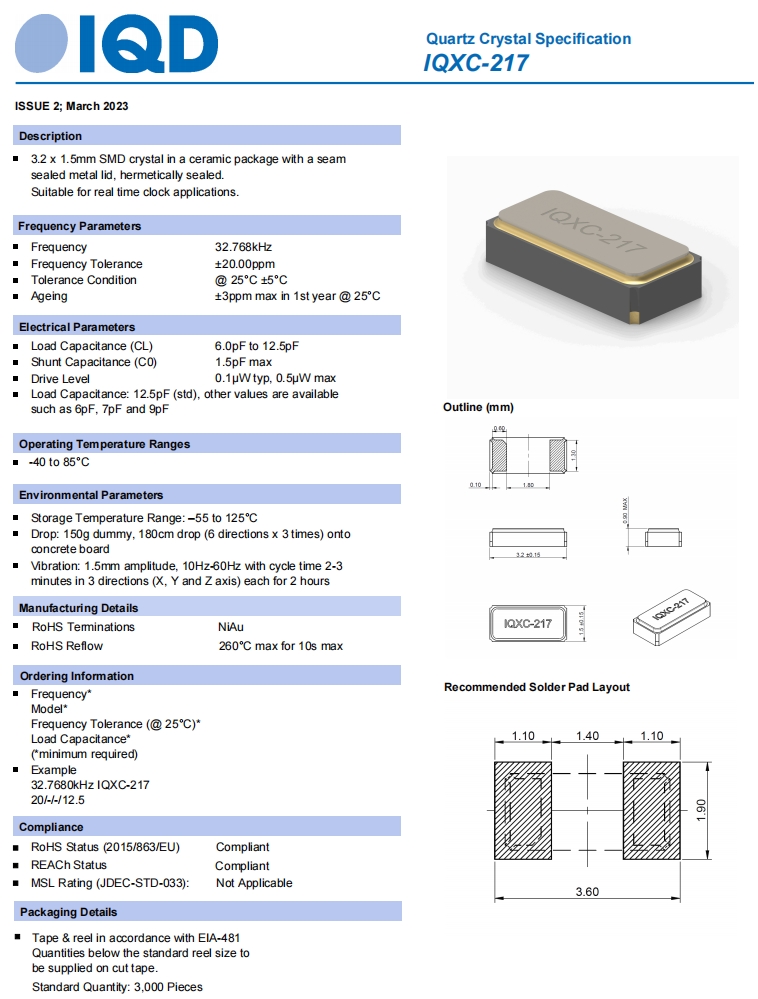

yijin-2 IQD晶振|IQXC-217晶振|LFXTAL084882|千赫晶體KHZ規格表

參數	數值
頻率	32.768KHz
頻率容差@ 25°C ± 3°C	±20ppm
工作溫度	-40~85°C
儲存溫度	-55~125°C
負載	12.5pF
并聯電容	1.5pF typ
驅動電平	0.5µW max.
老化@ 25°C ± 3°C	±3.0ppm max in 1st year @ 25°C

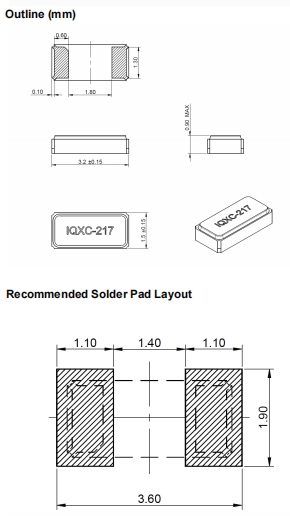

yijin-3 IQD晶振|IQXC-217晶振|LFXTAL084882|千赫晶體KHZ尺寸圖

編碼	型號	頻率	頻率容差	工作溫度	負載
LFXTAL078348Reel	IQXC-146	0.032768MHz	±20ppm	-40°C to 85°C	6.00pF
LFXTAL080915Reel	IQXC-146	0.032768MHz	±20ppm	-40°C to 85°C	12.50pF
LFXTAL065253Cutt	IQXC-90	0.032768MHz	±20ppm	-40°C to 85°C	12.50pF
LFXTAL066198Cutt	IQXC-90	0.032768MHz	±20ppm	-40°C to 85°C	9.00pF
LFXTAL066198Reel	IQXC-90	0.032768MHz	±20ppm	-40°C to 85°C	9.00pF
LFXTAL066431Cutt	IQXC-90	0.032768MHz	±20ppm	-40°C to 85°C	7.00pF
LFXTAL082140Reel	IQXC-90	0.032768MHz	±20ppm	-40°C to 85°C	4.00pF
LFXTAL050789Bulk	IQXC-25	0.032768MHz	±20ppm	-40°C to 85°C	12.50pF
LFXTAL050789Cutt	IQXC-25	0.032768MHz	±20ppm	-40°C to 85°C	12.50pF
LFXTAL050789Reel	IQXC-25	0.032768MHz	±20ppm	-40°C to 85°C	12.50pF
LFXTAL051643Reel	IQXC-25	0.032768MHz	±20ppm	-40°C to 85°C	9.00pF
LFXTAL059461Cutt	IQXC-25	0.032768MHz	±20ppm	-40°C to 85°C	7.00pF
LFXTAL059461Reel	IQXC-25	0.032768MHz	±20ppm	-40°C to 85°C	7.00pF
LFXTAL062558Cutt	IQXC-25	0.032768MHz	±10ppm	-40°C to 85°C	9.00pF
LFXTAL062558Reel	IQXC-25	0.032768MHz	±10ppm	-40°C to 85°C	9.00pF
LFXTAL063829Reel	IQXC-25	0.032768MHz	±10ppm	-40°C to 85°C	12.50pF
LFXTAL065455Cutt	IQXC-25	0.032768MHz	±20ppm	-40°C to 85°C	6.00pF
LFXTAL065455Reel	IQXC-25	0.032768MHz	±20ppm	-40°C to 85°C	6.00pF
LFXTAL073264Cutt	IQXC-25	0.032768MHz	±20ppm	-40°C to 85°C	4.00pF
LFXTAL073264Reel	IQXC-25	0.032768MHz	±20ppm	-40°C to 85°C	4.00pF
LFXTAL079143Cutt	IQXC-25	0.032768MHz	±20ppm	-40°C to 85°C	12.50pF
LFXTAL009678	CFPX-217	0.032768MHz	±20ppm	-40°C to 85°C	12.50pF
LFXTAL009706	CFPX-217	0.032768MHz	±20ppm	-40°C to 85°C	9.00pF
LFXTAL009709	CFPX-217	0.032768MHz	±20ppm	-40°C to 85°C	7.00pF
LFXTAL054236	CFPX-217	0.032768MHz	±20ppm	-40°C to 85°C	6.00pF
LFXTAL059555Tray	CX11V TF	0.032768MHz	±20ppm	-55°C to 125°C	9.00pF
LFXTAL084882	IQXC-217	0.032768MHz	±20ppm	-40°C to 85°C	12.50pF
LFXTAL084883	IQXC-217	0.032768MHz	±20ppm	-40°C to 85°C	9.00pF
LFXTAL084884	IQXC-217	0.032768MHz	±20ppm	-40°C to 85°C	7.00pF
LFXTAL084885	IQXC-217	0.032768MHz	±20ppm	-40°C to 85°C	6.00pF
LFXTAL059873Tray	CX9VHT TF	0.032768MHz	±100ppm	0°C to 200°C	9.00pF
LFXTAL077368Tray	CX4VHT TF	0.032768MHz	±30ppm	0°C to 200°C	9.00pF
LFXTAL078991Tray	CX4VHT TF	0.032768MHz	±100ppm	0°C to 200°C	9.00pF
LFXTAL083045Reel	CX4V TF	0.2MHz	±100ppm	-40°C to 85°C	9.00pF
LFXTAL009589Reel	CFPX-155	0.032768MHz	±20ppm	-40°C to 85°C	12.50pF
LFXTAL055127Cutt	CFPX-155	0.032768MHz	±20ppm	-40°C to 85°C	6.00pF
LFXTAL003426Reel	CX1V TF	0.032768MHz	±30ppm	-40°C to 85°C	9.00pF
LFXTAL003426Tray	CX1V TF	0.032768MHz	±30ppm	-40°C to 85°C	9.00pF
LFXTAL083548Reel	CX1V TF	0.032768MHz	±30ppm	-40°C to 85°C	9.00pF
LFXTAL083548Tray	CX1V TF	0.032768MHz	±30ppm	-40°C to 85°C	9.00pF
LFXTAL056539Reel	CX1V TF	0.4608MHz	±500ppm	-40°C to 85°C	4.00pF
LFXTAL029873Tray	CX1 EXT	1.024MHz	±100ppm	-40°C to 85°C	10.00pF
LFXTAL014590Reel	CX1 EXT	1.8432MHz	±500ppm	-40°C to 85°C	7.00pF
LFXTAL014590Tray	CX1 EXT	1.8432MHz	±500ppm	-40°C to 85°C	7.00pF
LFXTAL090622Tray	CX1 EXT	1.8432MHz	±500ppm	-40°C to 85°C	7.00pF
LFXTAL003000	85SMX	0.032768MHz	±20ppm	-40°C to 85°C	12.50pF
LFXTAL016178	85SMX	0.032768MHz	±20ppm	-40°C to 85°C	6.00pF
LFXTAL025159Bulk	CFPX-56	0.032768MHz	±20ppm	-40°C to 85°C	12.50pF
LFXTAL025159Reel	CFPX-56	0.032768MHz	±20ppm	-40°C to 85°C	12.50pF
LFXTAL058243Bulk	CFPX-56	0.032768MHz	±20ppm	-40°C to 85°C	7.00pF
LFXTAL001420Bulk	WATCH	0.032768MHz	±10ppm	-20°C to 70°C	12.50pF
LFXTAL002995Bulk	WATCH	0.032768MHz	±20ppm	-20°C to 70°C	12.50pF
LFXTAL002996Bulk	WATCH	0.032768MHz	±15ppm	-20°C to 70°C	12.50pF
LFXTAL002997Bulk	WATCH	0.032768MHz	±20ppm	-20°C to 70°C	12.50pF
LFXTAL010831Bulk	WATCH	0.032768MHz	±10ppm	-20°C to 70°C	12.50pF
LFXTAL012459Bulk	WATCH	0.032768MHz	±20ppm	-20°C to 70°C	6.00pF
LFXTAL012511Bulk	WATCH	0.032768MHz	±20ppm	-20°C to 70°C	6.00pF
LFXTAL014219Bulk	WATCH	0.032768MHz	±20ppm	-20°C to 70°C	6.00pF
LFXTAL020030Bulk	WATCH	0.032768MHz	±10ppm	-20°C to 70°C	6.00pF
LFXTAL023551Bulk	WATCH	0.032768MHz	±10ppm	-20°C to 70°C	10.00pF
LFXTAL025125Bulk	WATCH	0.032768MHz	±20ppm	-20°C to 70°C	7.00pF
LFXTAL079092Bulk	WATCH	0.032768MHz	±20ppm	-20°C to 70°C	9.00pF
