當前位置：首頁 » 歐美晶振 » IQD晶振 » IQD晶振|WATCH-3X8晶振|LFXTAL001420Bulk|圓柱晶體

prevnext

IQD晶振|WATCH-3X8晶振|LFXTAL001420Bulk|圓柱晶體

頻率：32.768KHz

尺寸：3.2mm×1.5mm

IQD晶振|WATCH-3X8晶振|LFXTAL001420Bulk|圓柱晶體,IQD晶振,WATCH-3X8圓柱晶體,無源晶振,LFXTAL001420Bulk晶振,石英晶體諧振器,進口插件晶振,3*8mm晶振,石英晶振,頻率32.768KHz,負載12.5pF,頻率容差10ppm,工作溫度范圍-20~70°C,無鉛環保晶振,高精度晶振,抗沖擊晶振,儲存卡晶振,家用電視機頂盒晶振,數字電表晶振,隨身聽晶振.

訂購熱線：0755-27876565

IQD晶振|WATCH-3X8晶振|LFXTAL001420Bulk|圓柱晶體,IQD晶振,WATCH-3X8圓柱晶振,無源晶振,LFXTAL001420Bulk晶振,石英晶體諧振器,進口插件晶振,3*8mm晶振,石英晶振,頻率32.768KHz,負載12.5pF,頻率容差10ppm,工作溫度范圍-20~70°C,無鉛環保晶振,高精度晶振,抗沖擊晶振,儲存卡晶振,家用電視機頂盒晶振,數字電表晶振,隨身聽晶振.

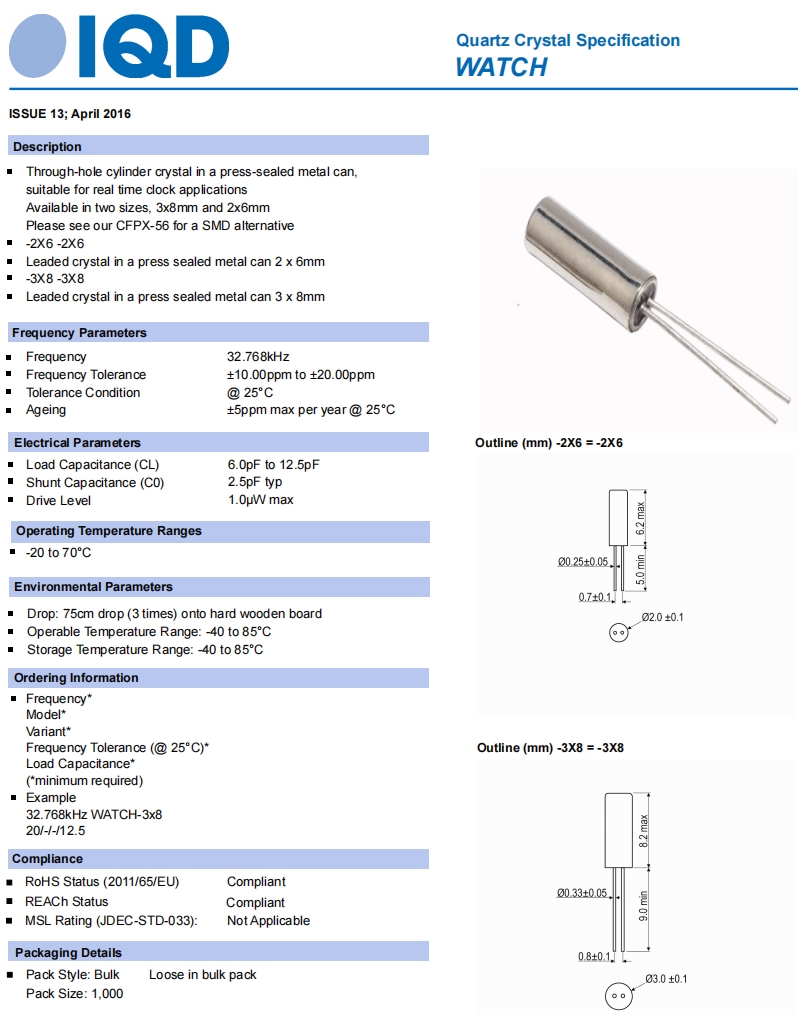

yijin-2 IQD晶振|WATCH-3X8晶振|LFXTAL001420Bulk|圓柱晶體規格表

參數	數值
頻率	32.768KHz
頻率容差@ 25°C ± 3°C	±10ppm
工作溫度	-20~70°C
儲存溫度	-55~125°C
負載	12.5pF
并聯電容	2.5pF typ
驅動電平	1.0µW max.
老化@ 25°C ± 3°C	±5.0ppm max per year @ 25°C

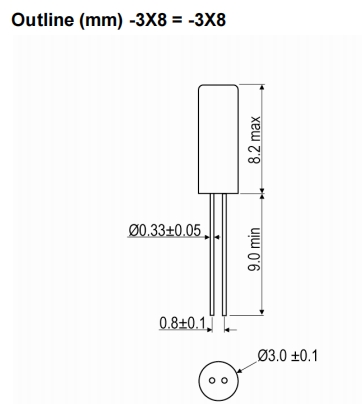

yijin-3 IQD晶振|WATCH-3X8晶振|LFXTAL001420Bulk|圓柱晶體尺寸圖

編碼	型號	頻率	頻率容差	工作溫度	負載
LFXTAL078348Reel	IQXC-146	0.032768MHz	±20ppm	-40°C to 85°C	6.00pF
LFXTAL080915Reel	IQXC-146	0.032768MHz	±20ppm	-40°C to 85°C	12.50pF
LFXTAL065253Cutt	IQXC-90	0.032768MHz	±20ppm	-40°C to 85°C	12.50pF
LFXTAL066198Cutt	IQXC-90	0.032768MHz	±20ppm	-40°C to 85°C	9.00pF
LFXTAL066198Reel	IQXC-90	0.032768MHz	±20ppm	-40°C to 85°C	9.00pF
LFXTAL066431Cutt	IQXC-90	0.032768MHz	±20ppm	-40°C to 85°C	7.00pF
LFXTAL082140Reel	IQXC-90	0.032768MHz	±20ppm	-40°C to 85°C	4.00pF
LFXTAL050789Bulk	IQXC-25	0.032768MHz	±20ppm	-40°C to 85°C	12.50pF
LFXTAL050789Cutt	IQXC-25	0.032768MHz	±20ppm	-40°C to 85°C	12.50pF
LFXTAL050789Reel	IQXC-25	0.032768MHz	±20ppm	-40°C to 85°C	12.50pF
LFXTAL051643Reel	IQXC-25	0.032768MHz	±20ppm	-40°C to 85°C	9.00pF
LFXTAL059461Cutt	IQXC-25	0.032768MHz	±20ppm	-40°C to 85°C	7.00pF
LFXTAL059461Reel	IQXC-25	0.032768MHz	±20ppm	-40°C to 85°C	7.00pF
LFXTAL062558Cutt	IQXC-25	0.032768MHz	±10ppm	-40°C to 85°C	9.00pF
LFXTAL062558Reel	IQXC-25	0.032768MHz	±10ppm	-40°C to 85°C	9.00pF
LFXTAL063829Reel	IQXC-25	0.032768MHz	±10ppm	-40°C to 85°C	12.50pF
LFXTAL065455Cutt	IQXC-25	0.032768MHz	±20ppm	-40°C to 85°C	6.00pF
LFXTAL065455Reel	IQXC-25	0.032768MHz	±20ppm	-40°C to 85°C	6.00pF
LFXTAL073264Cutt	IQXC-25	0.032768MHz	±20ppm	-40°C to 85°C	4.00pF
LFXTAL073264Reel	IQXC-25	0.032768MHz	±20ppm	-40°C to 85°C	4.00pF
LFXTAL079143Cutt	IQXC-25	0.032768MHz	±20ppm	-40°C to 85°C	12.50pF
LFXTAL009678	CFPX-217	0.032768MHz	±20ppm	-40°C to 85°C	12.50pF
LFXTAL009706	CFPX-217	0.032768MHz	±20ppm	-40°C to 85°C	9.00pF
LFXTAL009709	CFPX-217	0.032768MHz	±20ppm	-40°C to 85°C	7.00pF
LFXTAL054236	CFPX-217	0.032768MHz	±20ppm	-40°C to 85°C	6.00pF
LFXTAL059555Tray	CX11V TF	0.032768MHz	±20ppm	-55°C to 125°C	9.00pF
LFXTAL084882	IQXC-217	0.032768MHz	±20ppm	-40°C to 85°C	12.50pF
LFXTAL084883	IQXC-217	0.032768MHz	±20ppm	-40°C to 85°C	9.00pF
LFXTAL084884	IQXC-217	0.032768MHz	±20ppm	-40°C to 85°C	7.00pF
LFXTAL084885	IQXC-217	0.032768MHz	±20ppm	-40°C to 85°C	6.00pF
LFXTAL059873Tray	CX9VHT TF	0.032768MHz	±100ppm	0°C to 200°C	9.00pF
LFXTAL077368Tray	CX4VHT TF	0.032768MHz	±30ppm	0°C to 200°C	9.00pF
LFXTAL078991Tray	CX4VHT TF	0.032768MHz	±100ppm	0°C to 200°C	9.00pF
LFXTAL083045Reel	CX4V TF	0.2MHz	±100ppm	-40°C to 85°C	9.00pF
LFXTAL009589Reel	CFPX-155	0.032768MHz	±20ppm	-40°C to 85°C	12.50pF
LFXTAL055127Cutt	CFPX-155	0.032768MHz	±20ppm	-40°C to 85°C	6.00pF
LFXTAL003426Reel	CX1V TF	0.032768MHz	±30ppm	-40°C to 85°C	9.00pF
LFXTAL003426Tray	CX1V TF	0.032768MHz	±30ppm	-40°C to 85°C	9.00pF
LFXTAL083548Reel	CX1V TF	0.032768MHz	±30ppm	-40°C to 85°C	9.00pF
LFXTAL083548Tray	CX1V TF	0.032768MHz	±30ppm	-40°C to 85°C	9.00pF
LFXTAL056539Reel	CX1V TF	0.4608MHz	±500ppm	-40°C to 85°C	4.00pF
LFXTAL029873Tray	CX1 EXT	1.024MHz	±100ppm	-40°C to 85°C	10.00pF
LFXTAL014590Reel	CX1 EXT	1.8432MHz	±500ppm	-40°C to 85°C	7.00pF
LFXTAL014590Tray	CX1 EXT	1.8432MHz	±500ppm	-40°C to 85°C	7.00pF
LFXTAL090622Tray	CX1 EXT	1.8432MHz	±500ppm	-40°C to 85°C	7.00pF
LFXTAL003000	85SMX	0.032768MHz	±20ppm	-40°C to 85°C	12.50pF
LFXTAL016178	85SMX	0.032768MHz	±20ppm	-40°C to 85°C	6.00pF
LFXTAL025159Bulk	CFPX-56	0.032768MHz	±20ppm	-40°C to 85°C	12.50pF
LFXTAL025159Reel	CFPX-56	0.032768MHz	±20ppm	-40°C to 85°C	12.50pF
LFXTAL058243Bulk	CFPX-56	0.032768MHz	±20ppm	-40°C to 85°C	7.00pF
LFXTAL001420Bulk	WATCH	0.032768MHz	±10ppm	-20°C to 70°C	12.50pF
LFXTAL002995Bulk	WATCH	0.032768MHz	±20ppm	-20°C to 70°C	12.50pF
LFXTAL002996Bulk	WATCH	0.032768MHz	±15ppm	-20°C to 70°C	12.50pF
LFXTAL002997Bulk	WATCH	0.032768MHz	±20ppm	-20°C to 70°C	12.50pF
LFXTAL010831Bulk	WATCH	0.032768MHz	±10ppm	-20°C to 70°C	12.50pF
LFXTAL012459Bulk	WATCH	0.032768MHz	±20ppm	-20°C to 70°C	6.00pF
LFXTAL012511Bulk	WATCH	0.032768MHz	±20ppm	-20°C to 70°C	6.00pF
LFXTAL014219Bulk	WATCH	0.032768MHz	±20ppm	-20°C to 70°C	6.00pF
LFXTAL020030Bulk	WATCH	0.032768MHz	±10ppm	-20°C to 70°C	6.00pF
LFXTAL023551Bulk	WATCH	0.032768MHz	±10ppm	-20°C to 70°C	10.00pF
LFXTAL025125Bulk	WATCH	0.032768MHz	±20ppm	-20°C to 70°C	7.00pF
LFXTAL079092Bulk	WATCH	0.032768MHz	±20ppm	-20°C to 70°C	9.00pF
