貼片石英晶振
品牌
型號
頻率
工作溫度
ECS-3225S33-250-FN-TR
ECS Crystal
ECS-3225S
25MHz
-40°C ~ 85°C
ECS-3225S33-250-FN-TR
ECS Crystal
ECS-3225S
25MHz
-40°C ~ 85°C
ECS-3225S33-250-FN-TR
ECS Crystal
ECS-3225S
25MHz
-40°C ~ 85°C
ECS-3225S33-260-FN-TR
ECS Crystal
ECS-3225S
26MHz
-40°C ~ 85°C
ECS-3225S33-260-FN-TR
ECS Crystal
ECS-3225S
26MHz
-40°C ~ 85°C
ECS-3225S33-260-FN-TR
ECS Crystal
ECS-3225S
26MHz
-40°C ~ 85°C
ECS-3225S33-400-FN-TR
ECS Crystal
ECS-3225S
40MHz
-40°C ~ 85°C
ECS-3225S33-400-FN-TR
ECS Crystal
ECS-3225S
40MHz
-40°C ~ 85°C
ECS-3225S33-400-FN-TR
ECS Crystal
ECS-3225S
40MHz
-40°C ~ 85°C
ECS-3225S25-240-FN-TR
ECS Crystal
ECS-3225S
24MHz
-40°C ~ 85°C
ECS-3225S25-240-FN-TR
ECS Crystal
ECS-3225S
24MHz
-40°C ~ 85°C
ECS-3225S25-240-FN-TR
ECS Crystal
ECS-3225S
24MHz
-40°C ~ 85°C
ECS-3225S25-250-FN-TR
ECS Crystal
ECS-3225S
25MHz
-40°C ~ 85°C
ECS-3225S25-250-FN-TR
ECS Crystal
ECS-3225S
25MHz
-40°C ~ 85°C
ECS-3225S25-250-FN-TR
ECS晶振
ECS-3225S
25MHz
-40°C ~ 85°C
ECS-3225S18-160-FN-TR
ECS Crystal
ECS-3225S
16MHz
-40°C ~ 85°C
ECS-3225S18-160-FN-TR
ECS Crystal
ECS-3225S
16MHz
-40°C ~ 85°C
ECS-3225S18-160-FN-TR
ECS Crystal
ECS-3225S
16MHz
-40°C ~ 85°C
ECS-3225S18-200-FN-TR
ECS Crystal
ECS-3225S
20MHz
-40°C ~ 85°C
ECS-3225S18-200-FN-TR
ECS Crystal
ECS-3225S
20MHz
-40°C ~ 85°C
ECS-3225S18-200-FN-TR
ECS Crystal
ECS-3225S
20MHz
-40°C ~ 85°C
ECS-3225S18-240-FN-TR
ECS Crystal
ECS-3225S
24MHz
-40°C ~ 85°C
ECS-3225S18-240-FN-TR
ECS Crystal
ECS-3225S
24MHz
-40°C ~ 85°C
ECS-3225S18-240-FN-TR
ECS Crystal
ECS-3225S
24MHz
-40°C ~ 85°C
ECS-3225S18-270-FN-TR
ECS Crystal
ECS-3225S
27MHz
-40°C ~ 85°C
ECS-3225S18-270-FN-TR
ECS Crystal
ECS-3225S
27MHz
-40°C ~ 85°C
ECS-3225S18-270-FN-TR
ECS Crystal
ECS-3225S
27MHz
-40°C ~ 85°C
ECS-3225S18-320-FN-TR
ECS Crystal
ECS-3225S
32MHz
-40°C ~ 85°C

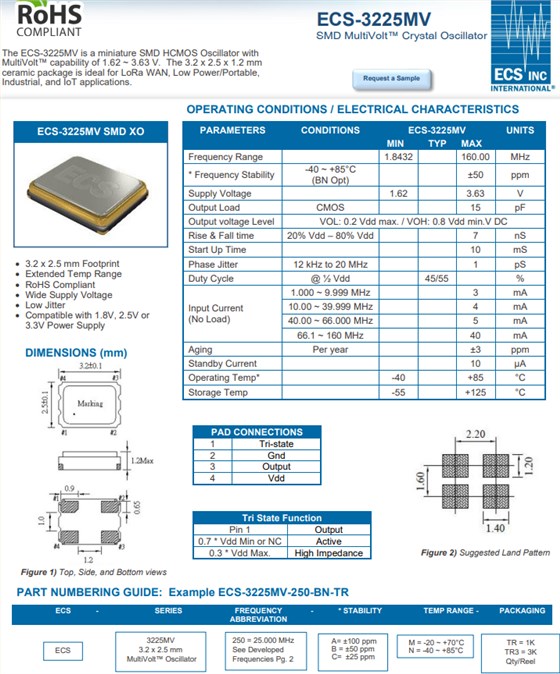

ECS-3225MV-250-BN-TR晶體振蕩器是LoRa WAN的理想選擇
特點:
小體積尺寸：3.2x2.5毫米的尺寸
4焊盤配置有源晶振
多伏特1.6V至3.63V
兼容1.8V、2.5V或3.3V電源
低抖動:1 pS
-BN選項:50 ppm，-40℃至+85℃
-CN選項:25 ppm，-40℃至+85℃
符合RoHS 2和REACH標準
MSL 1號
鉛飾面金
應用：物聯網，存儲設備，商業現貨(COTS)，航行，醫療(非維持生命)，移動設備，產業的，無線設備，測試設備，通用微處理器，IP攝像機
| 圖片 | 晶振系列 | 頻率 | 頻率穩定性 | 工作溫度 |
|
|
ECS-3225MV-120-BN-TR | 12 MHz | ±50ppm | -40°C ~ +85°C |
|
|
ECS-3225MV-160-CN-TR | 16 MHz | ±25ppm | -40°C ~ +85°C |
|
|
ECS-3225MV-250-BN-TR | 25 MHz | ±50ppm | -40°C ~ +85°C |
|
|
ECS-3225MV-250-CN-TR | 25 MHz | ±25ppm | -40°C ~ +85°C |
|
|
ECS-3225MV-260-CN-TR | 26 MHz | ±25ppm | -40°C ~ +85°C |
|
|
ECS-3225MV-320-BN-TR | 32 MHz | ±50ppm | -40°C ~ +85°C |
