ECS晶振封裝擴展影響了六種流行的表面貼裝音叉石英晶體，尺寸范圍從2.0mmx1.2mm到3.2mmx1.5mm。選擇包括STMicroelectronics推薦用于STM32 AN2867或符合AEC-Q200標準的音叉的32.768kHz音叉晶體。每個受影響的音叉都可以采用 TR（卷帶式）包裝、3,000片卷盤或 TR9包裝、9,000片卷盤提供。

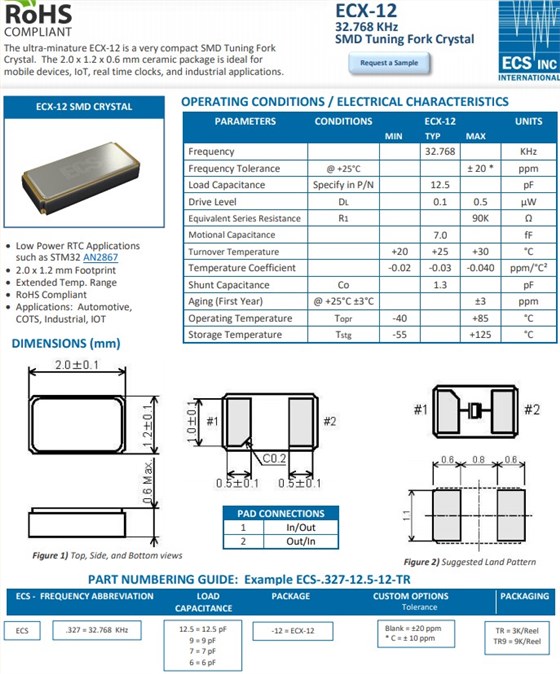

超微型ECX-12是一個非常緊湊的表面貼裝音叉石英晶體，32.768k晶體諧振器，小體積晶振尺寸2.0x1.2x0.6mm陶瓷封裝，兩腳貼片晶振，低功耗RTC應用，比如STM32 AN2867，擴展溫度。范圍，符合RoHS標準，非常適合移動設備、物聯網、實時時鐘和工業，汽車、IOT工業用膠輥應用。
SMD音叉晶體ECS-.327-12.5-12-TR非常適合實時時鐘和工業應用
| 原廠編碼 | 品牌 | 貼片晶振 | Type 系列 | 頻率 | 工作溫度 |
| ECS-.327-12.5-12-TR | ECScrystal | ECX-12 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-12-TR | ECScrystal | ECX-12 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-12-TR | ECScrystal | ECX-12 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-7-12-TR | ECScrystal | ECX-12 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-7-12-TR | ECScrystal | ECX-12 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-7-12-TR | ECScrystal | ECX-12 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-6-12-TR | ECScrystal | ECX-12 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-6-12-TR | ECScrystal | ECX-12 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-6-12-TR | ECScrystal | ECX-12 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-9-12-TR | ECScrystal | ECX-12 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-9-12-TR | ECScrystal | ECX-12 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-9-12-TR | ECScrystal | ECX-12 | kHz Crystal (Tuning Fork) | 32.768k | -40°C ~ 85°C |
| ECS-240-8-47-JTN-TR | ECScrystal | ECX-1247 | MHz Crystal | 24MHz | -40°C ~ 85°C |
| ECS-240-8-47-JTN-TR | ECScrystal | ECX-1247 | MHz Crystal | 24MHz | -40°C ~ 85°C |
| ECS-240-8-47-JTN-TR | ECScrystal | ECX-1247 | MHz Crystal | 24MHz | -40°C ~ 85°C |
| ECS-.327-12.5-12L-TR | ECScrystal | ECX-12L | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-12L-TR | ECScrystal | ECX-12L | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-12L-TR | ECScrystal | ECX-12L | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-260-8-47-JTN-TR | ECScrystal | ECX-1247 | MHz Crystal | 26MHz | -40°C ~ 85°C |
| ECS-260-8-47-JTN-TR | ECScrystal | ECX-1247 | MHz Crystal | 26MHz | -40°C ~ 85°C |
| ECS-260-8-47-JTN-TR | ECScrystal | ECX-1247 | MHz Crystal | 26MHz | -40°C ~ 85°C |
| ECS-360-8-47-JTN-TR | ECScrystal | ECX-1247 | MHz Crystal | 36MHz | -40°C ~ 85°C |
| ECS-360-8-47-JTN-TR | ECScrystal | ECX-1247 | MHz Crystal | 36MHz | -40°C ~ 85°C |
| ECS-360-8-47-JTN-TR | ECScrystal | ECX-1247 | MHz Crystal | 36MHz | -40°C ~ 85°C |
| ECS-480-8-47-JTN-TR | ECScrystal | ECX-1247 | MHz Crystal | 48MHz | -40°C ~ 85°C |
| ECS-480-8-47-JTN-TR | ECScrystal | ECX-1247 | MHz Crystal | 48MHz | -40°C ~ 85°C |
| ECS-480-8-47-JTN-TR | ECScrystal | ECX-1247 | MHz Crystal | 48MHz | -40°C ~ 85°C |
| ECS-320-8-47-JTN-TR | ECScrystal | ECX-1247 | MHz Crystal | 32MHz | -40°C ~ 85°C |
| ECS-320-8-47-JTN-TR | ECScrystal | ECX-1247 | MHz Crystal | 32MHz | -40°C ~ 85°C |
| ECS-320-8-47-JTN-TR | ECScrystal | ECX-1247 | MHz Crystal | 32MHz | -40°C ~ 85°C |
| ECS-400-8-47-JTN-TR | ECScrystal | ECX-1247 | MHz Crystal | 40MHz | -40°C ~ 85°C |
| ECS-400-8-47-JTN-TR | ECScrystal | ECX-1247 | MHz Crystal | 40MHz | -40°C ~ 85°C |
| ECS-400-8-47-JTN-TR | ECScrystal | ECX-1247 | MHz Crystal | 40MHz | -40°C ~ 85°C |
SMD音叉晶體ECS-.327-12.5-12-TR非常適合實時時鐘和工業應用
ECS Inc.晶振集團是一家私人控股的全球領先企業,在維護全球日益增長的高可靠性創新頻率控制設備需求方面處于領先地位.一流的研究公司和電子設備設計者,是全球領先的15家開發和生產創新頻率控制解決方案的石英晶振,貼片晶振,石英晶體振蕩器制造商,超過600家.ECS Inc晶振支持勞動力在香港、韓國、韓國、煙臺、中國和美國的生產設施和物流中心超過225家.
