BLT-2

yijin-1

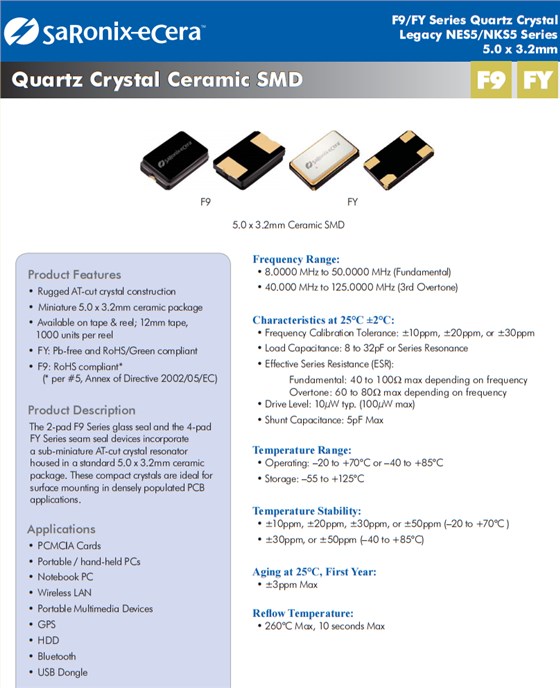

F91100015,11.0592MHz,12PF,20PPM,5032,-40~85℃，臺灣Diodes晶振公司,堅固的AT-cut晶體結構微型5.0 x 3.2mm陶瓷包裝，可卷帶12mm膠帶，1000個單位FY：無鉛和RoHS/綠色兼容F9： RoHS兼容*（*根據#5，指令2002/05/EC附件），2墊F9系列玻璃密封和4墊FY系列接縫密封裝置采用標準的5.0 x 3.2mm封裝封裝。這些協議用于PCB應用中的表面安裝。PCMCIA Cards ，Portable / hand-held PCs ，Notebook PC ，Wireless LAN ，Portable Multimedia Devices ，GPS ，HDD ，Bluetooth ，USB Dongle.

yijin-2

F91100015,11.0592MHz,12PF,20PPM,5032,-40~85℃

亞陶晶振規格	單位	F9晶振頻率范圍	石英晶振基本條件
標準頻率	f_nom	11.0592MHZ	標準頻率
儲存溫度	T_stg	-55°C～+125°C	裸存
工作溫度	T_use	-40°C～+85°C	標準溫度
激勵功率	DL	200μW Max.	推薦:1μW～100μW
頻率公差	f_— l	±50 × 10-6(標準), (±15 × 10-6～±50 × 10-6可用)	+25°C對于超出標準的規格說明, 請聯系我們以便獲取相關的信息,http://www.bzmfr.cn
頻率溫度特征	f_tem	±30 × 10-6/-20°C～+70°C	超出標準的規格請聯系我們.
負載電容	CL	12PF	超出標準說明,請聯系我們.

yijin-3

F91100015,11.0592MHz,12PF,20PPM,5032,-40~85℃

FY，F9

DIODES原廠編碼	生產廠家	型號	頻率	頻率偏差	負載電容	Operating Temperature工作溫度
F90800018Q	Diodes晶振	F9	8MHz	±50ppm	8pF	-40°C ~ 125°C
F90800018Q	Diodes晶振	F9	8MHz	±50ppm	8pF	-40°C ~ 125°C
F90800018Q	Diodes晶振	F9	8MHz	±50ppm	8pF	-40°C ~ 125°C
F92400054	Diodes晶振	F9	24MHz	±30ppm	18pF	-20°C ~ 70°C
F92400054	Diodes晶振	F9	24MHz	±30ppm	18pF	-20°C ~ 70°C
F92400054	Diodes晶振	F9	24MHz	±30ppm	18pF	-20°C ~ 70°C
F92500042	Diodes晶振	F9	25MHz	±20ppm	18pF	-20°C ~ 70°C
F92500042	Diodes晶振	F9	25MHz	±20ppm	18pF	-20°C ~ 70°C
F92500042	Diodes晶振	F9	25MHz	±20ppm	18pF	-20°C ~ 70°C
F61200046	Diodes晶振	F6	12MHz	±20ppm	18pF	-40°C ~ 85°C
F61200046	Diodes晶振	F6	12MHz	±20ppm	18pF	-40°C ~ 85°C
F61200046	Diodes晶振	F6	12MHz	±20ppm	18pF	-40°C ~ 85°C
F80800016	Diodes晶振	F8	8MHz	±50ppm	8pF	-20°C ~ 70°C
F80800016	Diodes晶振	F8	8MHz	±50ppm	8pF	-20°C ~ 70°C
F80800016	Diodes晶振	F8	8MHz	±50ppm	8pF	-20°C ~ 70°C
F90800021	Diodes晶振	F9	8MHz	±20ppm	18pF	-40°C ~ 85°C
F90800021	Diodes晶振	F9	8MHz	±20ppm	18pF	-40°C ~ 85°C
F90800021	Diodes晶振	F9	8MHz	±20ppm	18pF	-40°C ~ 85°C
F91200084	Diodes晶振	F9	12MHz	±20ppm	18pF	-20°C ~ 70°C
F91200084	Diodes晶振	F9	12MHz	±20ppm	18pF	-20°C ~ 70°C
F91200084	Diodes晶振	F9	12MHz	±20ppm	18pF	-20°C ~ 70°C
F62500047	Diodes晶振	F6	25MHz	±20ppm	18pF	-40°C ~ 85°C
F62500047	Diodes晶振	F6	25MHz	±20ppm	18pF	-40°C ~ 85°C
F62500047	Diodes晶振	F6	25MHz	±20ppm	18pF	-40°C ~ 85°C
F60800010	Diodes晶振	F6	8MHz	±20ppm	18pF	-40°C ~ 85°C
F60800010	Diodes晶振	F6	8MHz	±20ppm	18pF	-40°C ~ 85°C
F60800010	Diodes晶振	F6	8MHz	±20ppm	18pF	-40°C ~ 85°C
F62400017	Diodes晶振	F6	24MHz	±30ppm	18pF	-40°C ~ 85°C
F62400017	Diodes晶振	F6	24MHz	±30ppm	18pF	-40°C ~ 85°C
F62400017	Diodes晶振	F6	24MHz	±30ppm	18pF	-40°C ~ 85°C
F61600023	Diodes晶振	F6	16MHz	±20ppm	18pF	-40°C ~ 85°C
F61600023	Diodes晶振	F6	16MHz	±20ppm	18pF	-40°C ~ 85°C
F61600023	Diodes晶振	F6	16MHz	±20ppm	18pF	-40°C ~ 85°C
F62700016	Diodes晶振	F6	27MHz	±50ppm	18pF	-40°C ~ 85°C
F62700016	Diodes晶振	F6	27MHz	±50ppm	18pF	-40°C ~ 85°C
F62700016	Diodes晶振	F6	27MHz	±50ppm	18pF	-40°C ~ 85°C
