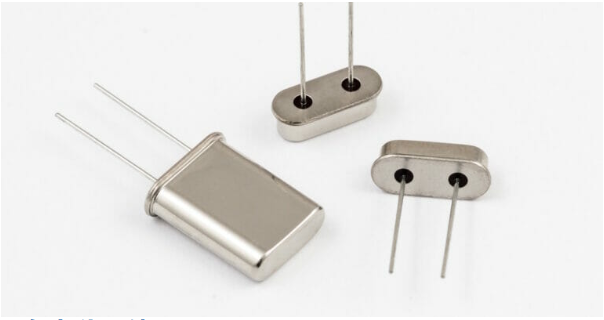

為您找到第一年老化低的晶振,ECS-240-20-28A-TR晶振
為您找到第一年老化低的晶振,ECS-240-20-28A-TR晶振，當石英振動時，該諧振表面的結構松弛，從而導致頻率偏移。所有晶振在生命的最初幾年都必須處理這個問題。
ECS晶振公司的創新制造商團隊開發了一種解決方案來解釋這種固有頻率偏移。但是，此解決方案不僅可以補償偏移;它還適用于需要石英晶振振蕩器的更廣泛的創新應用。
ECS晶振公司 的“B 系列”晶振（也稱為“低第一年老化”表面貼裝晶振）在小尺寸封裝中提供極低的頻率偏移。ECS晶振公司 是包括石英晶體振蕩器在內的計時解決方案的領先設計和工程公司，該產品的突破可確保您最新的工程壯舉能夠提供開箱即用的精確頻率。
了解ECS公司的“B系列”晶振振蕩器
為您找到第一年老化低的晶振,ECS-240-20-28A-TR晶振，“B系列”石英晶振振蕩器背后的概念和技術源自烤箱控制的晶振振蕩器（OCXO）制造工藝，其中對這些組件進行測試以確保其在特定條件下運行。與在擴展溫度下測試產品功能的OCXO測試非常相似，“B系列”晶振是預老化和預應力的，因此當該晶振用作電路板中的石英振蕩器時，松弛（和頻率偏移）已經發生。從本質上講，ECS晶振公司的老化過程使該晶振在石英晶振振蕩器電路中具有最佳性能。當您購買低第一年老化晶振時，您現在可以選擇晶振振蕩器頻率，該頻率不會偏移超出可用范圍。晶振資料下載
“B系列”晶振振蕩器的未來應用
考慮ECS晶振公司的“B系列”晶振，用于需要極小頻率偏移的新興技術和應用。
ECS晶振公司 的“B 系列”晶振已在全球范圍內應用于以下應用：
智慧城市基礎設施，包括照明和信號
3D相機、虛擬現實和人工智能
大氣衛星連接
ECS原廠編碼
型號
頻率
頻率容差
頻率偏差度
負載電容
工作溫度
ECS-120-20-3X-EN-TR
CSM-3X
12MHz
±50ppm
±30ppm
20pF
-40°C ~ 85°C
ECS-120-20-3X-TR
CSM-3X
12MHz
±50ppm
±30ppm
20pF
-10°C ~ 70°C
ECS-122.8-20-3X-EN-TR
CSM-3X
12.288MHz
±50ppm
±30ppm
20pF
-40°C ~ 85°C
ECS-122.8-20-3X-TR
CSM-3X
12.288MHz
±50ppm
±30ppm
20pF
-10°C ~ 70°C
ECS-130-20-3X-EN-TR
CSM-3X
13MHz
±50ppm
±30ppm
20pF
-40°C ~ 85°C
ECS-130-20-3X-TR
CSM-3X
13MHz
±50ppm
±30ppm
20pF
-10°C ~ 70°C
ECS-135.6-20-3X-EN-TR
CSM-3X
13.56MHz
±50ppm
±30ppm
20pF
-40°C ~ 85°C
ECS-135.6-20-3X-TR
CSM-3X
13.56MHz
±50ppm
±30ppm
20pF
-10°C ~ 70°C
ECS-143-20-3X-EN-TR
CSM-3X
14.31818MHz
±50ppm
±30ppm
20pF
-40°C ~ 85°C
ECS-143-20-3X-TR
CSM-3X
14.31818MHz
±50ppm
±30ppm
20pF
-10°C ~ 70°C
ECS-147.4-20-3X-EN-TR
CSM-3X
14.7456MHz
±50ppm
±30ppm
20pF
-40°C ~ 85°C
ECS-147.4-20-3X-TR
CSM-3X
14.7456MHz
±50ppm
±30ppm
20pF
-10°C ~ 70°C
ECS-160-20-3X-EN-TR
CSM-3X
16MHz
±50ppm
±30ppm
20pF
-40°C ~ 85°C
ECS-160-20-3X-TR
CSM-3X
16MHz
±50ppm
±30ppm
20pF
-10°C ~ 70°C
ECS-184-20-3X-EN-TR
CSM-3X
18.432MHz
±50ppm
±30ppm
20pF
-40°C ~ 85°C
ECS-184-20-3X-TR
CSM-3X
18.432MHz
±50ppm
±30ppm
20pF
-10°C ~ 70°C
ECS-196.6-20-3X-EN-TR
CSM-3X
19.6608MHz
±50ppm
±30ppm
20pF
-40°C ~ 85°C
ECS-196.6-20-3X-TR
CSM-3X
19.6608MHz
±50ppm
±30ppm
20pF
-10°C ~ 70°C
ECS-200-20-3X-EN-TR
CSM-3X
20MHz
±50ppm
±30ppm
20pF
-40°C ~ 85°C
ECS-200-20-3X-TR
CSM-3X
20MHz
±50ppm
±30ppm
20pF
-10°C ~ 70°C
ECS-200-CDX-0914
CSM-3X
20MHz
±30ppm
±10ppm
10pF
-60°C ~ 105°C
ECS-245.7-20-3X-EN-TR
CSM-3X
24.576MHz
±50ppm
±30ppm
20pF
-40°C ~ 85°C
ECS-245.7-20-3X-TR
CSM-3X
24.576MHz
±50ppm
±30ppm
20pF
-10°C ~ 70°C
ECS-250-20-3X-EN-TR
CSM-3X
25MHz
±50ppm
±30ppm
20pF
-40°C ~ 85°C
ECS-250-20-3X-TR
CSM-3X
25MHz
±50ppm
±30ppm
20pF
-10°C ~ 70°C
ECS-270-20-3X-EN-TR
CSM-3X
27MHz
±50ppm
±30ppm
20pF
-40°C ~ 85°C
ECS-270-20-3X-TR
CSM-3X
27MHz
±50ppm
±30ppm
20pF
-10°C ~ 70°C
ECS-286.3-20-3X-EN-TR
CSM-3X
28.63636MHz
±50ppm
±30ppm
20pF
-40°C ~ 85°C
ECS-286.3-20-3X-TR
CSM-3X
28.63636MHz
±50ppm
±30ppm
20pF
-10°C ~ 70°C
ECS-300-20-3X-EN-TR
CSM-3X
30MHz
±50ppm
±30ppm
20pF
-40°C ~ 85°C
ECS-300-20-3X-TR
CSM-3X
30MHz
±50ppm
±30ppm
20pF
-10°C ~ 70°C
ECS-330-20-3X-EN-TR
CSM-3X
33MHz
±50ppm
±30ppm
20pF
-40°C ~ 85°C
ECS-330-20-3X-TR
CSM-3X
33MHz
±50ppm
±30ppm
20pF
-10°C ~ 70°C
ECS-400-20-3X-EN-TR
CSM-3X
40MHz
±50ppm
±30ppm
20pF
-40°C ~ 85°C
ECS-400-20-3X-TR
CSM-3X
40MHz
±50ppm
±30ppm
20pF
-10°C ~ 70°C
ECS-100-20-28A-TR
CSM-4A
10MHz
±50ppm
±30ppm
20pF
-10°C ~ 70°C
ECS-100-S-28A-TR
CSM-4A
10MHz
±50ppm
±30ppm
Series
-10°C ~ 70°C
ECS-110.5-20-28A-TR
CSM-4A
11.0592MHz
±50ppm
±30ppm
20pF
-10°C ~ 70°C
ECS-110.5-S-28A-TR
CSM-4A
11.0592MHz
±50ppm
±30ppm
Series
-10°C ~ 70°C
ECS-120-18-28A-TR
CSM-4A
12MHz
±50ppm
±30ppm
18pF
-10°C ~ 70°C
ECS-120-32-28A-TR
CSM-4A
12MHz
±50ppm
±30ppm
32pF
-10°C ~ 70°C
ECS-120-S-28A-TR
CSM-4A
12MHz
±50ppm
±30ppm
Series
-10°C ~ 70°C
ECS-122.8-20-28A-TR
CSM-4A
12.288MHz
±50ppm
±30ppm
20pF
-10°C ~ 70°C
ECS-143-20-28A-TR
CSM-4A
14.31818MHz
±50ppm
±30ppm
20pF
-10°C ~ 70°C
ECS-143-S-28A-TR
CSM-4A
14.31818MHz
±50ppm
±30ppm
Series
-10°C ~ 70°C
ECS-147.4-20-28A-TR
CSM-4A
14.7456MHz
±50ppm
±30ppm
20pF
-10°C ~ 70°C
ECS-147.4-S-28A-TR
CSM-4A
14.7456MHz
±50ppm
±30ppm
Series
-10°C ~ 70°C
ECS-160-20-28A-TR
CSM-4A
16MHz
±50ppm
±30ppm
20pF
-10°C ~ 70°C
ECS-160-S-28A-TR
CSM-4A
16MHz
±50ppm
±30ppm
Series
-10°C ~ 70°C
ECS-184-20-28A-TR
CSM-4A
18.432MHz
±50ppm
±30ppm
20pF
-10°C ~ 70°C
ECS-184-S-28A-TR
CSM-4A
18.432MHz
±50ppm
±30ppm
Series
-10°C ~ 70°C
ECS-200-20-28A-TR
CSM-4A
20MHz
±50ppm
±30ppm
20pF
-10°C ~ 70°C
ECS-200-S-28A-TR
CSM-4A
20MHz
±50ppm
±30ppm
Series
-10°C ~ 70°C
ECS-240-12-28A-TR
CSM-4A
24MHz
±50ppm
±30ppm
12pF
-10°C ~ 70°C
ECS-240-20-28A-TR
CSM-4A
24MHz
±50ppm
±30ppm
20pF
-10°C ~ 70°C
ECS-240-S-28A-TR
CSM-4A
24MHz
±50ppm
±30ppm
Series
-10°C ~ 70°C
ECS-245.7-20-28A-TR
CSM-4A
24.576MHz
±50ppm
±30ppm
20pF
-10°C ~ 70°C
ECS-250-20-28A-F-TR
CSM-4A
25MHz
±50ppm
±30ppm
20pF
-10°C ~ 70°C
ECS-35-17-28A-TR
CSM-4A
3.579545MHz
±50ppm
±30ppm
17pF
-10°C ~ 70°C
ECS-36-20-28A-TR
CSM-4A
3.6864MHz
±50ppm
±30ppm
20pF
-10°C ~ 70°C
ECS-40-20-28A-TR
CSM-4A
4MHz
±50ppm
±30ppm
20pF
-10°C ~ 70°C
ECS-49-20-28A-TR
CSM-4A
4.9152MHz
±50ppm
±30ppm
20pF
-10°C ~ 70°C
ECS-50-20-28A-TR
CSM-4A
5MHz
±50ppm
±30ppm
20pF
-10°C ~ 70°C
ECS-60-32-28A-TR
CSM-4A
6MHz
±50ppm
±30ppm
32pF
-10°C ~ 70°C
ECS-73-20-28A-TR
CSM-4A
7.3728MHz
±50ppm
±30ppm
20pF
-10°C ~ 70°C
ECS-80-16-28A-TR
CSM-4A
8MHz
±50ppm
±30ppm
16pF
-10°C ~ 70°C
ECS-98.3-20-28A-TR
CSM-4A
9.8304MHz
±50ppm
±30ppm
20pF
-10°C ~ 70°C
