編碼AB-RTCMC-32.768kHz-AIGZ-S7是時鐘晶振I2C總線實時時鐘模塊
Abracon公司成立于1992年，總部位于德克薩斯州的斯派伍德，是全球領先的被動和機電同步、同步、電力、連通性和射頻解決方案的制造商。Abracon提供了廣泛的石英定時晶體和石英晶體振蕩器，MEMS振蕩器，實時時鐘(RTC)，藍牙模塊，陶瓷諧振器，鋸濾器和諧振器，功率和射頻電感，變壓器，電路保護元件和射頻天線和無線充電線圈。
I2C總線實時時鐘模塊,編碼AB-RTCMC-32.768kHz-AIGZ-S7,小體積晶振尺寸3.2x1.5mm，時鐘晶振，濕度敏感度等級:MSL=1
功能應用:
標準規格:
內置晶振的RTC模塊，頻率為32.768KHz有源晶振
3V時的350nA計時電流
計時低至1.0V 1.3V至4.4V I2C總線工作電壓
低工作電流:35μA(400 kHz時)
上電時32.768kHz方波驅動微控制器
低功耗模式–可編程范圍為1Hz至32.768k–可以禁用

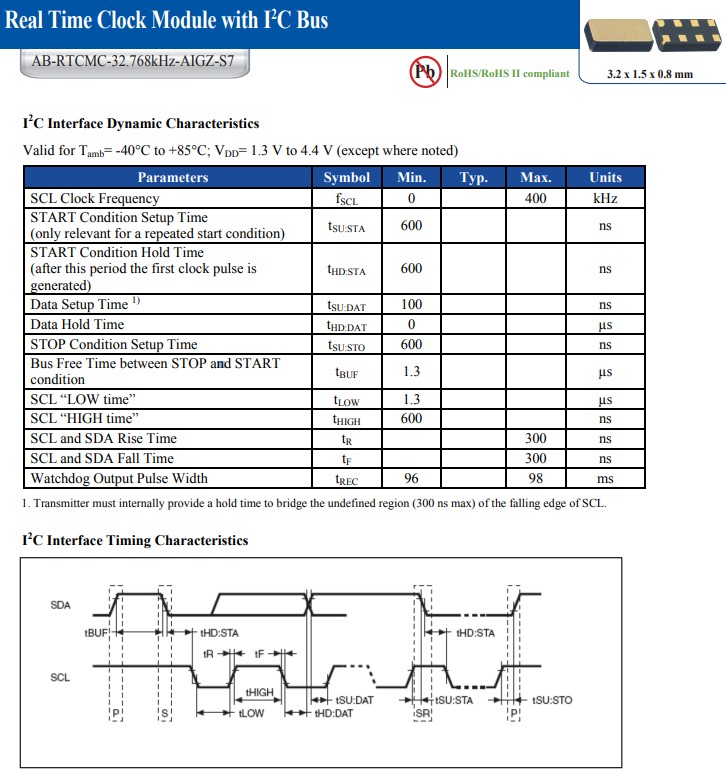

400kHz I2C串行接口
振蕩器停止檢測電路監控時鐘操作
精確的可編程看門狗–62.5毫秒至31分鐘超時
十分之一秒/百分之一秒、秒、分鐘、小時、日、日期、月、年和世紀的計數器
軟件時鐘校準，補償溫度引起的晶體偏差
自動閏年補償
超小型3.2x1.5mm無鉛8引腳陶瓷無引腳芯片載體
編碼AB-RTCMC-32.768kHz-AIGZ-S7是時鐘晶振I2C總線實時時鐘模塊,32.768k有源晶振
|
Manufacturer Part Number 原廠編碼 |
Manufacturer 廠家 |
Series型號 | Type 系列 |
Frequency 頻率 |
Package / Case包裝/封裝 |
| AB38T-32.768KHZ | Abracon LLC | AB38T | kHz Crystal (Tuning Fork) | 32.768kHz | Cylindrical Can, Radial |
| ABS25-32.768KHZ-T | Abracon LLC | ABS25 | kHz Crystal (Tuning Fork) | 32.768kHz | 4-SOJ, 5.50mm pitch |
| ABS25-32.768KHZ-6-T | Abracon LLC | ABS25 | kHz Crystal (Tuning Fork) | 32.768kHz | 4-SOJ, 5.50mm pitch |
| AB26TRQ-32.768KHZ-T | Abracon LLC | AB26TRQ | kHz Crystal (Tuning Fork) | 32.768kHz | Cylindrical Can, Radial |
| AB26T-32.768KHZ | Abracon LLC | AB26T | kHz Crystal (Tuning Fork) | 32.768k晶振 | Cylindrical Can, Radial |
| AB26TRB-32.768KHZ-T | Abracon LLC | AB26TRB | kHz Crystal (Tuning Fork) | 32.768kHz | Cylindrical Can, Radial |
| ABS07-32.768KHZ-T | Abracon LLC | ABS07 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS25-32.768KHZ-1-T | Abracon LLC | ABS25 | kHz Crystal (Tuning Fork) | 32.768kHz | 4-SOJ, 5.50mm pitch |
| ABS25-32.768KHZ-6-1-T | Abracon LLC | ABS25 | kHz Crystal (Tuning Fork) | 32.768kHz | 4-SOJ, 5.50mm pitch |
| ABS07-120-32.768KHZ-T | Abracon LLC | ABS07 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-9-D-T | Abracon LLC | ABS07AIG | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-D-T | Abracon LLC | ABS07AIG | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-7-D-T | Abracon LLC | ABS07AIG | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-7-T | Abracon LLC | ABS07 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-9-T | Abracon LLC | ABS07 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS13-32.768KHZ-T | Abracon LLC | ABS13 | kHz Crystal (Tuning Fork) | 32.768kHz | 4-SMD, Flat Lead, 3 Leads |
| ABS07-32.768KHZ-7-1-T | Abracon LLC | ABS07 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-9-T | Abracon LLC | ABS07AIG | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-7-T | Abracon LLC | ABS07AIG | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS06-107-32.768KHZ-T | Abracon LLC | ABS06 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-6-T | Abracon LLC | ABS07AIG | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-9-1-T | Abracon LLC | ABS07AIG | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-7-1-T | Abracon LLC | ABS07AIG | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-T | Abracon LLC | ABS06 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-6-1-T | Abracon LLC | ABS07AIG | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-1-T | Abracon LLC | ABS06 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-9-1-T | Abracon LLC | ABS07 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-9-1-T | Abracon LLC | ABS06 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-6-T | Abracon LLC | ABS07 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-T | Abracon LLC | ABS10 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-7-T | Abracon LLC | ABS10 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-9-T | Abracon LLC | ABS10 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-1-T | Abracon LLC | ABS07 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-9-T | Abracon LLC | ABS09 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-T | Abracon LLC | ABS09 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-1-T | Abracon LLC | ABS10 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-7-T | Abracon LLC | ABS09 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07-LR-32.768KHZ-6-1-T | Abracon LLC | ABS07-LR | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07L-32.768KHZ-T | Abracon LLC | ABS07L | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-1-T | Abracon LLC | ABS09 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS25-32.768KHZ-4-T | Abracon LLC | ABS25 | kHz Crystal (Tuning Fork) | 32.768kHz | 4-SOJ, 5.50mm pitch |
| ABS07AIG-32.768KHZ-6-D-T | Abracon LLC | ABS07AIG | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-9-T | Abracon LLC | ABS06 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS06L-32.768KHZ-T | Abracon LLC | ABS06L | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07-LR-32.768KHZ-6-T | Abracon LLC | ABS07-LR | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-4-T | Abracon LLC | ABS07 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| AB15T-32.768KHZ | Abracon LLC | AB15T | kHz Crystal (Tuning Fork) | 32.768kHz | Cylindrical Can, Radial |
| ABS07AIG-32.768KHZ-T | Abracon LLC | ABS07AIG | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-1-T | Abracon LLC | ABS07AIG | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS05-32.768KHZ-T | Abracon LLC | ABS05 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS05-32.768KHZ-9-T | Abracon LLC | ABS05 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-4-T | Abracon LLC | ABS10 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-4-T | Abracon LLC | ABS09 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-6-T | Abracon LLC | ABS06 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-D-1-T | Abracon LLC | ABS07W | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-D-2-T | Abracon LLC | ABS07W | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-J-2-T | Abracon LLC | ABS07W | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-J-1-T | Abracon LLC | ABS07W | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-K-2-T | Abracon晶振 | ABS07W | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-K-1-T | Abracon LLC | ABS07W | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
編碼AB-RTCMC-32.768kHz-AIGZ-S7是時鐘晶振I2C總線實時時鐘模塊,32.768k有源晶振
應用:
廣泛的通信和測量設備
商業和工業應用
汽車電子應用
無線通信
PDA和Palm飛行員
具有安全技術的信用卡
