車載控制器TCXO晶振TG-5006CJ編碼X1G004131004900

來源：億金電子查看手機網址

掃一掃!

掃一掃!

瀏覽：- 發布日期：2022-09-15 09:54:00【大中小】

分享到：

晶振是電子產品都得依賴的一款電子器件,它是通常應用到一些高端電子產品當中。削波正弦波形是TCXO最受歡迎的輸出選項,這是為什么呢,主要原因有兩點.其一是低功耗,改善了熱特性以及更好的老化和頻率穩定性能;其二則是比CMOS輸出更好的相位噪聲性能.也就是說石英晶振在采用削頂正玄波作為輸出方式之后會極大的減少諧波分量的數量,使得晶振產品具備低相位噪聲的性能.

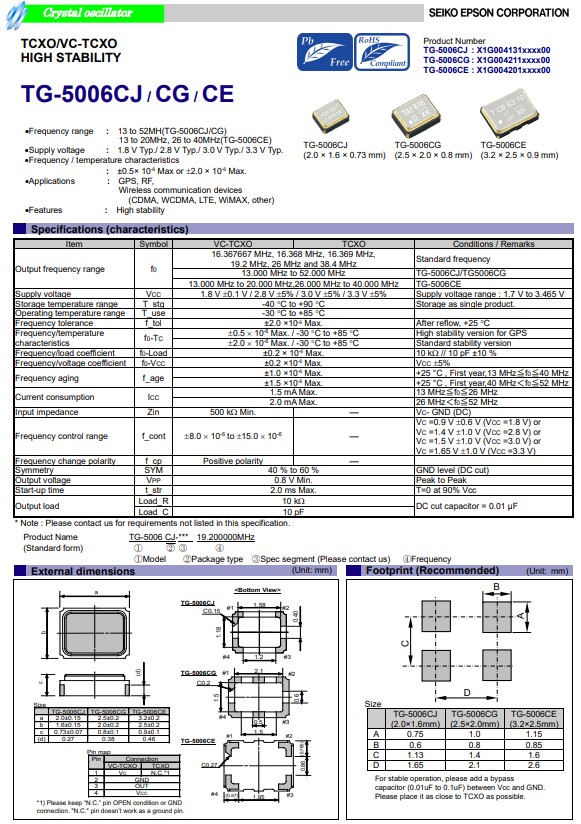

日本進口愛普生晶振TG5006CJ是一款TCXO溫補晶振，小體積晶振尺寸2.0x1.6mm有源晶振，四腳貼片晶振，電源電壓1.8V,2.8V,3.0V,3.3V，頻率范圍13MHz至52MHz，具有超小型，輕薄型，低電源電壓，低抖動，低功耗，低損耗，低耗能，低電平，低相位噪聲等特點，廣泛應用于各種應用領域，如無線通信設備和電信設備，計算機和外圍設備，儀器儀表，航空航天，倉儲，工業，汽車，醫療和軍事等。

車載控制器TCXO晶振TG-5006CJ編碼X1G004131004900

產品編碼	型號	頻率	貼片晶振	輸出波	電源電壓	精度
X1G004131000400	TG-5006CJ	26.000000MHz	2.00x1.60x0.73mm	Clippedsinewave	1.700 to 1.900V	+/-2.0ppm
X1G004131000600	TG-5006CJ	16.367667MHz	2.00x1.60x0.73mm	Clippedsinewave	2.850 to 3.150V	+/-2.0ppm
X1G004131000700	TG-5006CJ	16.368000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.850 to 3.150V	+/-2.0ppm
X1G004131000800	TG-5006CJ	16.369000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.850 to 3.150V	+/-2.0ppm
X1G004131000900	TG-5006CJ	19.200000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.850 to 3.150V	+/-2.0ppm
X1G004131001000	TG-5006CJ	26.000000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.850 to 3.150V	+/-2.0ppm
X1G004131001100	TG-5006CJ	38.400000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.850 to 3.150V	+/-2.0ppm
X1G004131001300	TG-5006CJ	16.367667MHz	2.00x1.60x0.73mm	Clippedsinewave	2.850 to 3.150V	+/-2.0ppm
X1G004131001400	TG-5006CJ	16.368000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.850 to 3.150V	+/-2.0ppm
X1G004131001500	TG-5006CJ	16.369000MHz	2.00x1.60x0.73mm	TCXO晶振	2.850 to 3.150V	+/-2.0ppm
X1G004131001600	TG-5006CJ	19.200000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.850 to 3.150V	+/-2.0ppm
X1G004131001700	TG-5006CJ	26.000000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.850 to 3.150V	+/-2.0ppm
X1G004131001800	TG-5006CJ	38.400000MHz	2.00x1.60x0.73mm	Clippedsinewave	1.700 to 3.300V	+/-2.0ppm

X1G004131002600	TG-5006CJ	40.000000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.850 to 3.150V	+/-1.5ppm
X1G004131002900	TG-5006CJ	19.200000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.600 to 3.000V	+/-2.0ppm
X1G004131003100	TG-5006CJ	40.000000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.850 to 3.150V	+/-2.0ppm
X1G004131003200	TG-5006CJ	26.635300MHz	2.00x1.60x0.73mm	Clippedsinewave	2.700 to 3.465V	+/-2.0ppm
X1G004131003300	TG-5006CJ	28.974000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.700 to 3.465V	+/-2.0ppm
X1G004131003400	TG-5006CJ	26.000000MHz	2.00x1.60x0.73mm	Clippedsinewave	1.700 to 1.900V	+/-1.5ppm
X1G004131003600	TG-5006CJ	26.000000MHz	2.00x1.60x0.73mm	溫補晶振	2.660 to 2.940V	+/-1.5ppm
X1G004131003700	TG-5006CJ	19.200000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.660 to 2.940V	+/-2.0ppm
X1G004131003800	TG-5006CJ	26.000000MHz	2.00x1.60x0.73mm	Clippedsinewave	1.700 to 1.900V	+/-2.0ppm
X1G004131004100	TG-5006CJ	40.000000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.850 to 3.150V	+/-2.0ppm
X1G004131004200	TG-5006CJ	32.000000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.850 to 3.150V	+/-2.0ppm
X1G004131004400	TG-5006CJ	24.576000MHz	2.00x1.60x0.73mm	Clippedsinewave	3.135 to 3.465V	+/-2.0ppm
X1G004131004900	TG-5006CJ	26.000000MHz	2.00x1.60x0.73mm	Clippedsinewave	1.700 to 1.900V	+/-2.0ppm
