SG3225CAN有源晶振X1G005961001615非常適合醫療設備應用晶振

來源：億金電子查看手機網址

掃一掃!

SG3225CAN有源晶振X1G005961001615非常適合醫療設備應用晶振

掃一掃!

瀏覽：- 發布日期：2022-09-09 09:51:31【大中小】

分享到：

愛普生晶振SG3225CAN是帶CMOS輸出的簡單封裝晶體振蕩器(SPXO)系列。小體積尺寸3.2x2.5mm晶體振蕩器，四腳貼片晶振，有源晶振，具有小體積輕薄型，低抖動，低功耗，低電源電壓等，非常適合物聯網、可穿戴設備、醫療、工業自動化等各種應用。這些SPXO具有低電流消耗、1.6V至3.63V的寬工作電壓和寬工作范圍溫度范圍從-40℃到85℃，此外，最高工作溫度可達105℃。這些SPXO提供從2.0x1.6mm到7.0x5.0mm的五種不同封裝尺寸，并提供標準引腳排列。

SG3225CAN有源晶振X1G005961001615非常適合醫療設備應用晶振

產品編碼	型號	頻率	石英晶體振蕩器	輸出波	電源電壓	工作溫度
X1G005961000115	SG3225CAN	24.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961000215	SG3225CAN	25.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961000315	SG3225CAN	48.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961000415	SG3225CAN	8.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961000515	SG3225CAN	10.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961000615	SG3225CAN	12.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961000715	SG3225CAN	20.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961000815	SG3225CAN	24.576000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961000915	SG3225CAN	40.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961001015	SG3225CAN	50.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961001115	SG3225CAN	4.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961001215	SG3225CAN	4.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961001315	SG3225CAN	8.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961001415	SG3225CAN	10.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961001515	SG3225CAN	12.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-20 to 70 °C
X1G005961001615	SG3225CAN	12.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961001715	SG3225CAN	12.288000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-20 to 70 °C

X1G005961001815	SG3225CAN	12.288000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961001915	SG3225CAN	12.288000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961002015	SG3225CAN	14.745600MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961002115	SG3225CAN	14.745600MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961002215	SG3225CAN	16.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961002315	SG3225CAN	16.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961002415	SG3225CAN	20.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-20 to 70 °C
X1G005961002515	SG3225CAN	20.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961002615	SG3225CAN	24.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-20 to 70 °C
X1G005961002715	SG3225CAN	24.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961002815	SG3225CAN	24.576000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961002915	SG3225CAN	25.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-20 to 70 °C
X1G005961003015	SG3225CAN	25.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961003115	SG3225CAN	26.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961003215	SG3225CAN	26.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961003315	SG3225CAN	27.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961003415	SG3225CAN	27.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961003515	SG3225CAN	32.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C

SG3225CAN有源晶振X1G005961001615非常適合醫療設備應用晶振

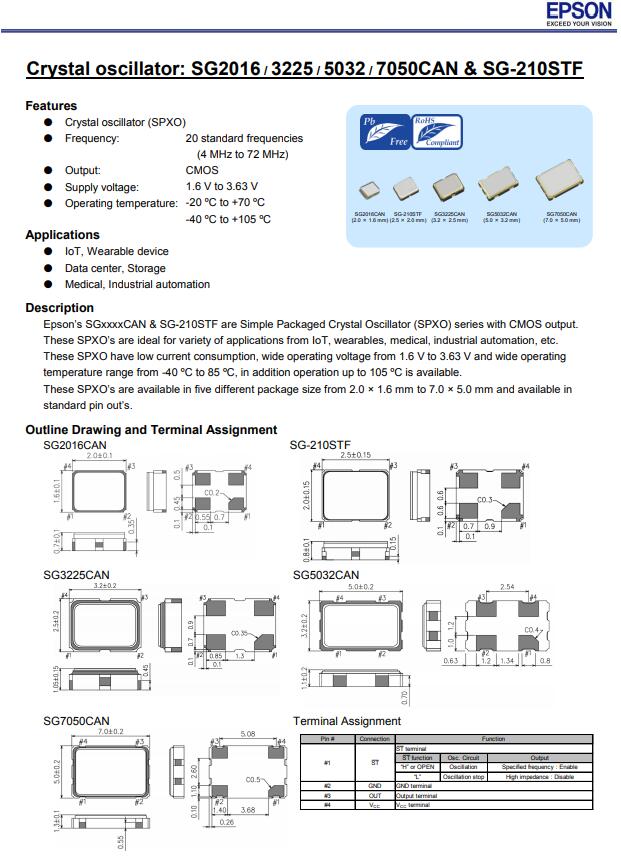

特征：
晶體振蕩器(SPXO)
頻率:20個標準頻率(4兆赫至72兆赫)
輸出:CMOS
電源電壓:1.6V至3.63V
工作溫度:-20攝氏度至+70攝氏度，-40攝氏度至+105攝氏度
應用程序：物聯網，可穿戴設備，數據中心、存儲，醫療、工業自動化

其實貼片晶振的體積比直插晶振要小很多，在貼片晶振封裝中有2520，3225，5032等，現在很多便攜式產品需要體積小，性能穩，壽命長，價格適中的貼片晶振，那么工程師在選型過程中發現，3225有源晶振體積偏小，但是體積越小的晶振，生產工藝也肯定越發復雜，偏偏有源晶振3225成本還比5032低，所以3225晶振為性價比很高簡直無可厚非。
