IQD晶振|CFPX-180晶振|LFXTAL065272RL3K|3225進口晶振

頻率：32.768MHz

尺寸：3.2mm×2.5mm

IQD晶振|CFPX-180晶振|LFXTAL065272RL3K |3225進口晶振,IQD晶振,CFPX-180無源晶振,石英晶體,LFXTAL065272RL3K晶振,晶體諧振器,3225進口晶振,四腳貼片晶振,SMD晶振,頻率32.768MHz,負載20pF,頻率容差50ppm,工作溫度范圍-40~85°C,輕薄小晶振,高品質晶振,無鉛環保晶振,消費電子產品晶振,家用網關晶振,調制解調器晶振,顯示和控制面板晶振.

訂購熱線：0755-27876565

IQD晶振|CFPX-180晶振|LFXTAL065272RL3K|3225進口晶振,IQD晶振,CFPX-180無源晶振,石英晶體,LFXTAL065272RL3K晶振,晶體諧振器,3225進口晶振,四腳貼片晶振,SMD晶振,頻率32.768MHz,負載20pF,頻率容差50ppm,工作溫度范圍-40~85°C,輕薄小晶振,高品質晶振,無鉛環保晶振,消費電子產品晶振,家用網關晶振,調制解調器晶振,顯示和控制面板晶振.

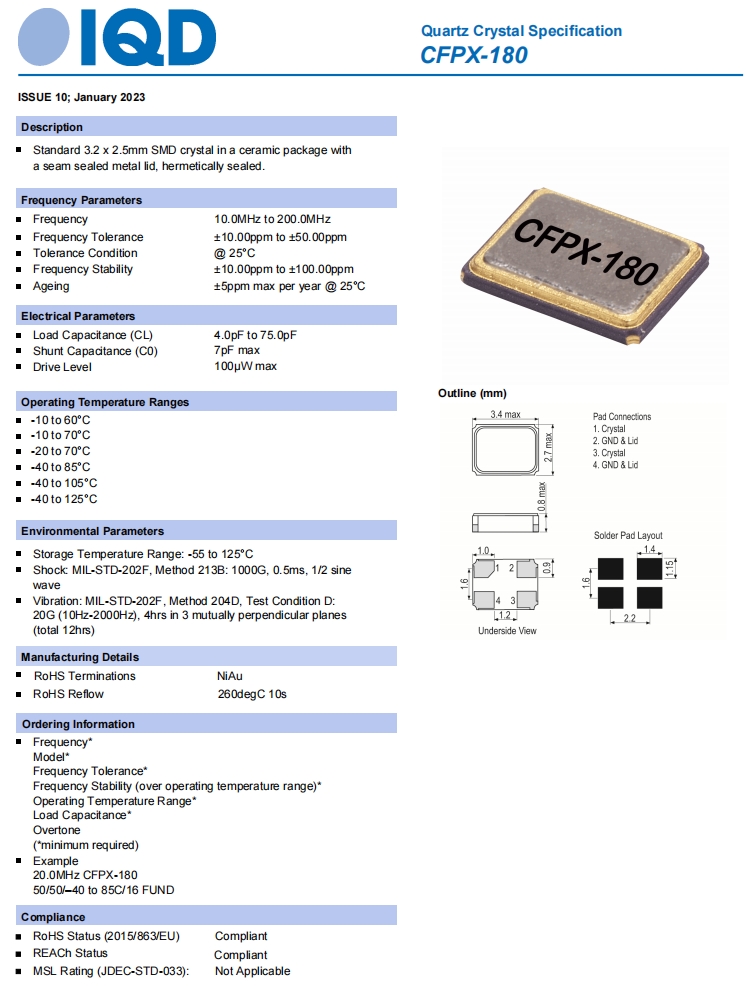

yijin-2 IQD晶振|CFPX-180晶振|LFXTAL065272RL3K|3225進口晶振規格表

參數	數值
頻率	32.768MHz
頻率容差@ 25°C ± 3°C	±50ppm
頻率穩定性	±50ppm
工作溫度	-40~85°C
儲存溫度	-55~125°C
負載	20pF
并聯電容	7pF max
驅動電平	300µW max.
老化@ 25°C ± 3°C	±5.0ppm per year max

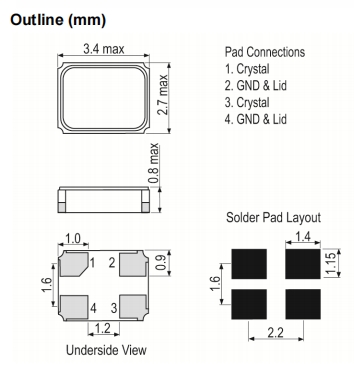

yijin-3 IQD晶振|CFPX-180晶振|LFXTAL065272RL3K|3225進口晶振尺寸圖

編碼	型號	頻率	頻率容差	頻率穩定性	工作溫度	負載
LFXTAL071952RL3K	CFPX-218	12.0MHz	±20ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL072016Reel	CFPX-218	12.0MHz	±10ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL072016RL3K	CFPX-218	12.0MHz	±10ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL079264Reel	CFPX-218	12.0MHz	±30ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL079389Cutt	CFPX-218	12.0MHz	±20ppm	±30ppm	-10°C to 60°C	10.00pF
LFXTAL052180Cutt	CFPX-218	16.0MHz	±10ppm	±15ppm	-20°C to 70°C	12.00pF
LFXTAL052180RL3K	CFPX-218	16.0MHz	±10ppm	±15ppm	-20°C to 70°C	12.00pF
LFXTAL052895Bulk	CFPX-218	16.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL054342Cutt	CFPX-218	16.0MHz	±20ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL061817RL3K	CFPX-218	16.0MHz	±10ppm	±20ppm	-30°C to 85°C	8.00pF
LFXTAL062065Cutt	CFPX-218	16.0MHz	±10ppm	±15ppm	-30°C to 85°C	8.00pF
LFXTAL062065RL3K	CFPX-218	16.0MHz	±10ppm	±15ppm	-30°C to 85°C	8.00pF
LFXTAL062487Cutt	CFPX-218	16.0MHz	±10ppm	±15ppm	-10°C to 60°C	22.00pF
LFXTAL068297RL3K	CFPX-218	16.0MHz	±10ppm	±10ppm	-20°C to 75°C	8.00pF
LFXTAL069392Cutt	CFPX-218	16.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069392Reel	CFPX-218	16.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069392RL3K	CFPX-218	16.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL071094RL3K	CFPX-218	16.0MHz	±15ppm	±15ppm	-10°C to 70°C	8.00pF
LFXTAL078960Cutt	CFPX-218	16.0MHz	±15ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL069395Cutt	CFPX-218	16.384MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069395Reel	CFPX-218	16.384MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069395RL3K	CFPX-218	16.384MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069400Cutt	CFPX-218	18.432MHz	±20ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL069400Reel	CFPX-218	18.432MHz	±20ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL069400RL3K	CFPX-218	18.432MHz	±20ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL061682Cutt	CFPX-218	19.2MHz	±20ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL069404Cutt	CFPX-218	19.2MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069404Reel	CFPX-218	19.2MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069404RL3K	CFPX-218	19.2MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL082080Cutt	CFPX-218	19.2MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL082080RL3K	CFPX-218	19.2MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL090565RL3K	CFPX-218	19.2MHz	±25ppm	±25ppm	-40°C to 105°C	8.00pF
LFXTAL090181Reel	CFPX-218	19.6608MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL052896Bulk	CFPX-218	20.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL052896Cutt	CFPX-218	20.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL069381Cutt	CFPX-218	20.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069381Reel	CFPX-218	20.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069381RL3K	CFPX-218	20.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL082081Cutt	CFPX-218	20.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL082081RL3K	CFPX-218	20.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL053106Bulk	CFPX-218	24.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL053106Cutt	CFPX-218	24.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL053106Reel	CFPX-218	24.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL061685Cutt	CFPX-218	24.0MHz	±20ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL069383Cutt	CFPX-218	24.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069383Reel	CFPX-218	24.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069383RL3K	CFPX-218	24.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL071973Cutt	CFPX-218	24.0MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL081439RL3K	CFPX-218	24.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL081970RL3K	CFPX-218	24.0MHz	±10ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL082082Cutt	CFPX-218	24.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL082082RL3K	CFPX-218	24.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL082790RL3K	CFPX-218	24.0MHz	±20ppm	±50ppm	-40°C to 85°C	8.00pF
LFXTAL090514RL3K	CFPX-218	24.0MHz	±30ppm	±30ppm	-40°C to 85°C	8.00pF
LFXTAL052183Cutt	CFPX-218	24.576MHz	±10ppm	±10ppm	-20°C to 70°C	12.00pF
LFXTAL053107Bulk	CFPX-218	24.576MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL053107Cutt	CFPX-218	24.576MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL069387Cutt	CFPX-218	24.576MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069387Reel	CFPX-218	24.576MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069387RL3K	CFPX-218	24.576MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL036577Cutt	CFPX-218	25.0MHz	±10ppm	±20ppm	-40°C to 85°C	20.00pF
LFXTAL037011Cutt	CFPX-218	25.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL053108Bulk	CFPX-218	25.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL059198Cutt	CFPX-218	25.0MHz	±10ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL061687Cutt	CFPX-218	25.0MHz	±20ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL061687RL3K	CFPX-218	25.0MHz	±20ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL063334Cutt	CFPX-218	25.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL063334Reel	CFPX-218	25.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL063334RL3K	CFPX-218	25.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL063742RL3K	CFPX-218	25.0MHz	±30ppm	±30ppm	-20°C to 70°C	18.00pF
LFXTAL064865Cutt	CFPX-218	25.0MHz	±10ppm	±20ppm	-40°C to 85°C	12.00pF
LFXTAL064865Reel	CFPX-218	25.0MHz	±10ppm	±20ppm	-40°C to 85°C	12.00pF
LFXTAL069179Cutt	CFPX-218	25.0MHz	±20ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL075452RL3K	CFPX-218	25.0MHz	±15ppm	±25ppm	-40°C to 85°C	8.00pF
LFXTAL078719Cutt	CFPX-218	25.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL078719RL3K	CFPX-218	25.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL079273Cutt	CFPX-218	25.0MHz	±10ppm	±15ppm	-20°C to 70°C	12.00pF
LFXTAL050991Cutt	CFPX-218	26.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL050991Reel	CFPX-218	26.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL050991RL3K	CFPX-218	26.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL052185Cutt	CFPX-218	26.0MHz	±10ppm	±10ppm	-20°C to 70°C	12.00pF
LFXTAL056504RL3K	CFPX-218	26.0MHz	±30ppm	±30ppm	-10°C to 60°C	15.00pF
LFXTAL062381Cutt	CFPX-218	26.0MHz	±10ppm	±20ppm	-40°C to 85°C	12.00pF
LFXTAL063922Cutt	CFPX-218	26.0MHz	±20ppm	±20ppm	-40°C to 85°C	20.00pF
LFXTAL081865Cutt	CFPX-218	26.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL081865RL3K	CFPX-218	26.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL061689RL3K	CFPX-218	27.0MHz	±20ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL069405Cutt	CFPX-218	27.0MHz	±20ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL069405Reel	CFPX-218	27.0MHz	±20ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL069405RL3K	CFPX-218	27.0MHz	±20ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL079297Cutt	CFPX-218	27.0MHz	±30ppm	±15ppm	-30°C to 85°C	10.00pF
LFXTAL079297RL3K	CFPX-218	27.0MHz	±30ppm	±15ppm	-30°C to 85°C	10.00pF
LFXTAL082084Cutt	CFPX-218	27.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL082084RL3K	CFPX-218	27.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL072522Cutt	CFPX-218	27.12MHz	±15ppm	±15ppm	-10°C to 70°C	8.00pF
LFXTAL036792RL3K	CFPX-218	30.0MHz	±10ppm	±20ppm	-10°C to 60°C	12.00pF
LFXTAL065132RL3K	CFPX-218	30.0MHz	±20ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL069407Cutt	CFPX-218	30.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069407Reel	CFPX-218	30.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069407RL3K	CFPX-218	30.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL072844Cutt	CFPX-218	30.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL072844RL3K	CFPX-218	30.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL052187Cutt	CFPX-218	32.0MHz	±10ppm	±10ppm	-20°C to 70°C	12.00pF
LFXTAL053109Cutt	CFPX-218	32.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL056767RL3K	CFPX-218	32.0MHz	±50ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL069268Cutt	CFPX-218	32.0MHz	±15ppm	±18ppm	-40°C to 85°C	10.00pF
LFXTAL069390Cutt	CFPX-218	32.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069390Reel	CFPX-218	32.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069390RL3K	CFPX-218	32.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL075523Cutt	CFPX-218	32.0MHz	±10ppm	±15ppm	-40°C to 85°C	12.00pF
LFXTAL078207Cutt	CFPX-218	32.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL078207RL3K	CFPX-218	32.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL078382Reel	CFPX-218	32.0MHz	±10ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL082427RL3K	CFPX-218	32.0MHz	±10ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL053110Cutt	CFPX-218	40.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL081564RL3K	CFPX-218	40.0MHz	±20ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL082087Cutt	CFPX-218	40.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL082087RL3K	CFPX-218	40.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL082854RL3K	CFPX-218	40.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL083762RL3K	CFPX-218	40.0MHz	±10ppm	±10ppm	-20°C to 70°C	15.00pF
LFXTAL090186RL3K	CFPX-218	48.0MHz	±10ppm	±20ppm	-20°C to 70°C	20.00pF
LFXTAL061851Cutt	CFPX-218	50.0MHz	±20ppm	±20ppm	-10°C to 60°C	18.00pF
LFXTAL082088Cutt	CFPX-218	50.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL082088RL3K	CFPX-218	50.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL086178RL3K	CFPX-218	62.5MHz	±15ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL065272RL3K	CFPX-180	32.768MHz	±50ppm	±50ppm	-40°C to 85°C	20.00pF
LFXTAL088666RL3K	CFPX-180	32.768MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL059672Cutt	CFPX-180	36.0MHz	±10ppm	±10ppm	-10°C to 60°C	10.00pF
LFXTAL075445RL3K	CFPX-180	38.4MHz	±10ppm	±10ppm	-20°C to 75°C	8.50pF
LFXTAL076107RL3K	CFPX-180	38.4MHz	±30ppm	±50ppm	-40°C to 85°C	15.00pF
LFXTAL082763RL3K	CFPX-180	38.4MHz	±30ppm	±30ppm	-20°C to 70°C	9.00pF
LFXTAL083279Cutt	CFPX-180	38.4MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL035270Bulk	CFPX-180	40.0MHz	±50ppm	±50ppm	-10°C to 60°C	16.00pF
LFXTAL035270Cutt	CFPX-180	40.0MHz	±50ppm	±50ppm	-10°C to 60°C	16.00pF
LFXTAL059648Cutt	CFPX-180	40.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL059648Reel	CFPX-180	40.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL059648RL3K	CFPX-180	40.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL076900Cutt	CFPX-180	40.0MHz	±10ppm	±10ppm	-20°C to 75°C	9.00pF
LFXTAL082077RL3K	CFPX-180	40.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL054093Cutt	CFPX-180	41.0MHz	±50ppm	±50ppm	-10°C to 60°C	10.50pF
LFXTAL069379Cutt	CFPX-180	44.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL009549Bulk	CFPX-180	48.0MHz	±50ppm	±50ppm	-10°C to 60°C	16.00pF
LFXTAL053866Cutt	CFPX-180	48.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL053866RL3K	CFPX-180	48.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL055570Cutt	CFPX-180	48.0MHz	±30ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL062288RL3K	CFPX-180	48.0MHz	±30ppm	±30ppm	-10°C to 60°C	18.00pF
LFXTAL071958Cutt	CFPX-180	48.0MHz	±30ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL079244Cutt	CFPX-180	48.0MHz	±15ppm	±25ppm	-40°C to 85°C	8.00pF
LFXTAL080495RL3K	CFPX-180	48.0MHz	±50ppm	±30ppm	-40°C to 85°C	16.00pF
LFXTAL080873RL3K	CFPX-180	48.0MHz	±30ppm	±50ppm	-20°C to 70°C	10.00pF
LFXTAL082068RL3K	CFPX-180	48.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL083249Cutt	CFPX-180	48.0MHz	±30ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL084993RL3K	CFPX-180	48.0MHz	±20ppm	±20ppm	-20°C to 70°C	18.00pF
LFXTAL090184RL3K	CFPX-180	48.0MHz	±10ppm	±20ppm	-20°C to 70°C	20.00pF
LFXTAL060843Cutt	CFPX-180	50.0MHz	±25ppm	±25ppm	-20°C to 70°C	10.00pF
LFXTAL060843Reel	CFPX-180	50.0MHz	±25ppm	±25ppm	-20°C to 70°C	10.00pF
LFXTAL060843RL3K	CFPX-180	50.0MHz	±25ppm	±25ppm	-20°C to 70°C	10.00pF
LFXTAL069349Cutt	CFPX-180	50.0MHz	±20ppm	±30ppm	-40°C to 85°C	8.00pF
LFXTAL072787Cutt	CFPX-180	50.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL072787RL3K	CFPX-180	50.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL082006Cutt	CFPX-180	50.0MHz	±10ppm	±10ppm	-20°C to 70°C	12.00pF
LFXTAL082006RL3K	CFPX-180	50.0MHz	±10ppm	±10ppm	-20°C to 70°C	12.00pF
LFXTAL082078Cutt	CFPX-180	50.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL082078Reel	CFPX-180	50.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL082078RL3K	CFPX-180	50.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL082568RL3K	CFPX-180	50.0MHz	±10ppm	±15ppm	-40°C to 85°C	12.00pF
LFXTAL082637RL3K	CFPX-180	50.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL083481RL3K	CFPX-180	50.0MHz	±20ppm	±20ppm	-40°C to 85°C	16.00pF
LFXTAL062546Cutt	CFPX-180	54.0MHz	±15ppm	±20ppm	-20°C to 70°C	19.00pF
LFXTAL062546RL3K	CFPX-180	54.0MHz	±15ppm	±20ppm	-20°C to 70°C	19.00pF
LFXTAL083943Cutt	CFPX-180	200.0MHz	±50ppm	±50ppm	-40°C to 85°C	12.00pF

yijin-5

YJ-6

深圳市億金電子有限公司 SHENZHEN YIJIN ELECTRONICS CO;LTD

mphone 聯系人黃娜：18924600166

工作QQ:857950243

myt 貿易通：yijindz2014

tel 座機：0755-27876565

email 郵箱:yijindz@163.com

inter 網址：http://www.yijindz.com

mwx 微信：yijindz，公眾號：NDKcrystal

home 地址：廣東省深圳市寶安區107國道旁甲岸路

wxewm

IQD晶振 CFPX-180晶振 LFXTAL065272RL3K 3225進口晶振

跟此產品相關的產品 / Related Products

: 民用設備晶振,日本Murata晶振,進口XRCTD晶振,石英貼片晶體,XRCTD32M000N1P1AR0; XRCTD32M000N1P1AR0作為日本Murata（村田）晶振旗下的進口XRCTD晶振，展現出卓越的技術特性。它是一款石英貼片晶體，采用高品質石英材料，利用石英的壓電效應產生穩定且精準的振蕩，確保能精準輸出32MHz的頻率。其貼片式封裝設計，便于在電路板上進行表面貼裝，不僅節省空間，還適合自動化生產，提高生產效率，滿足現代民用設備對小型化、集成化的需求。作為民用設備晶振，它針對民用電子設備的特點進行優化，在保證性能的同時，注重成本效益，為各類民用電子設備提供穩定可靠的時鐘信號。

: Pletronics進口晶振,SM55振蕩器,低抖動晶振,SM5545JEW-12.288MDK,CMOS振蕩器; Pletronics進口晶振,SM55振蕩器,低抖動晶振,SM5545JEW-12.288MDK,CMOS振蕩器 SM5545JEW-12.288MDK 是 Pletronics 生產的進口低抖動 CMOS 振蕩器。它能輸出精準的 12.288MHz 頻率，為電子設備提供穩定的時鐘基準。低抖動特性確保信號穩定，有效提升設備的精準性和可靠性。CMOS 輸出具備低功耗、高噪聲容限等優勢，適配性強。緊湊設計便于安裝和集成。廣泛應用于通信、計算機、工業控制等領域，有助于提高設備的性能和運行穩定性，是一款值得信賴的晶振產品。

: LVDS差分晶振,LV3344JEV-100.0MDK,以太網晶振,Pletronics貼片晶振,LV33J振蕩器; LVDS差分晶振,LV3344JEV-100.0MDK,以太網晶振,Pletronics貼片晶振,LV33J振蕩器 LV3344JEV-100.0MDK 是 Pletronics 推出的 LVDS 差分貼片晶振，主要用于以太網應用。它能輸出精準的 100.0MHz 頻率，為以太網設備提供穩定的時鐘基準。LVDS 差分信號傳輸方式使其具備出色的抗干擾能力，可有效抑制共模干擾，確保數據傳輸?shù)臏?zhǔn)確性和穩定性。貼片封裝便于安裝和集成。廣泛應用于以太網交換機、路由器等網絡設備，有助于提升網絡通信的性能和可靠性，是以太網設備實現高速穩定通信的理想選擇。
