ECS-3225MV-250-BN-TR晶體振蕩器是LoRa WAN的理想選擇

來源：億金電子查看手機網址

掃一掃!

掃一掃!

瀏覽：- 發布日期：2023-02-16 09:33:59【大中小】

分享到：

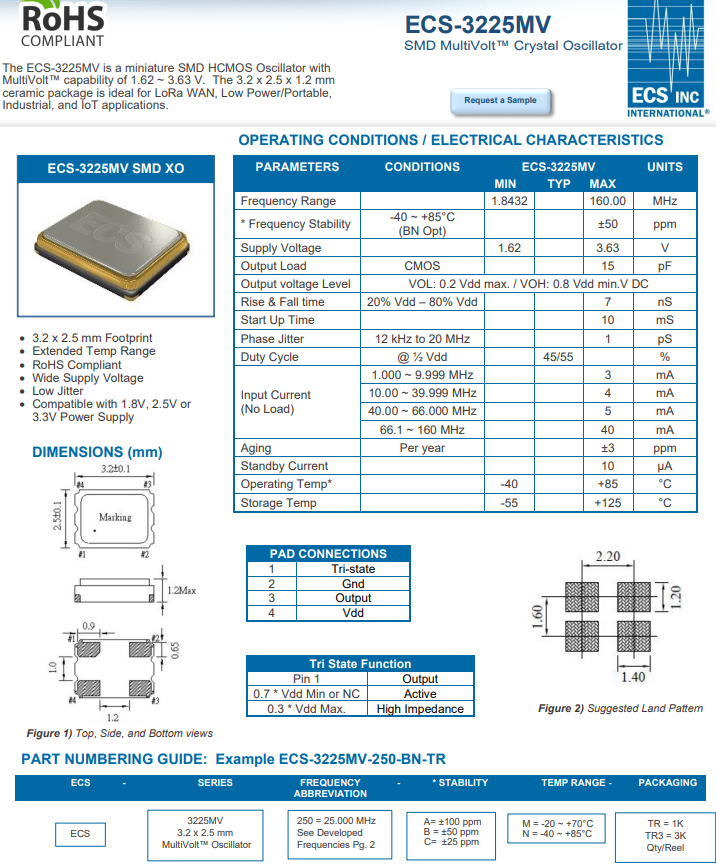

ECS晶振ECS-3225MV系列是一款微型SMD HCMOS振蕩器，具有MultiVolt容量為1.62V至3.63V，低功耗、固定頻率、低抖動、MultiVolt表面貼裝石英晶體振蕩器。為節省電路板空間，采用小體積3.2x2.5x1.2mm (LWH)封裝四角貼片晶振。MultiVolt特性允許客戶將同一器件用于多種設計，從而降低認證要求并減少庫存。ECS的表面貼裝MultiVolt晶體振蕩器非常適合低功耗、便攜式、工業和物聯網應用。ECS-3225MV-250-BN-TR晶體振蕩器是LoRa WAN的理想選擇

貼片石英晶振	品牌	型號	頻率	工作溫度
ECS-3225S33-250-FN-TR	ECS Crystal	ECS-3225S	25MHz	-40°C ~ 85°C
ECS-3225S33-250-FN-TR	ECS Crystal	ECS-3225S	25MHz	-40°C ~ 85°C
ECS-3225S33-250-FN-TR	ECS Crystal	ECS-3225S	25MHz	-40°C ~ 85°C
ECS-3225S33-260-FN-TR	ECS Crystal	ECS-3225S	26MHz	-40°C ~ 85°C
ECS-3225S33-260-FN-TR	ECS Crystal	ECS-3225S	26MHz	-40°C ~ 85°C
ECS-3225S33-260-FN-TR	ECS Crystal	ECS-3225S	26MHz	-40°C ~ 85°C
ECS-3225S33-400-FN-TR	ECS Crystal	ECS-3225S	40MHz	-40°C ~ 85°C
ECS-3225S33-400-FN-TR	ECS Crystal	ECS-3225S	40MHz	-40°C ~ 85°C
ECS-3225S33-400-FN-TR	ECS Crystal	ECS-3225S	40MHz	-40°C ~ 85°C
ECS-3225S25-240-FN-TR	ECS Crystal	ECS-3225S	24MHz	-40°C ~ 85°C
ECS-3225S25-240-FN-TR	ECS Crystal	ECS-3225S	24MHz	-40°C ~ 85°C
ECS-3225S25-240-FN-TR	ECS Crystal	ECS-3225S	24MHz	-40°C ~ 85°C
ECS-3225S25-250-FN-TR	ECS Crystal	ECS-3225S	25MHz	-40°C ~ 85°C
ECS-3225S25-250-FN-TR	ECS Crystal	ECS-3225S	25MHz	-40°C ~ 85°C
ECS-3225S25-250-FN-TR	ECS晶振	ECS-3225S	25MHz	-40°C ~ 85°C
ECS-3225S18-160-FN-TR	ECS Crystal	ECS-3225S	16MHz	-40°C ~ 85°C
ECS-3225S18-160-FN-TR	ECS Crystal	ECS-3225S	16MHz	-40°C ~ 85°C
ECS-3225S18-160-FN-TR	ECS Crystal	ECS-3225S	16MHz	-40°C ~ 85°C
ECS-3225S18-200-FN-TR	ECS Crystal	ECS-3225S	20MHz	-40°C ~ 85°C
ECS-3225S18-200-FN-TR	ECS Crystal	ECS-3225S	20MHz	-40°C ~ 85°C
ECS-3225S18-200-FN-TR	ECS Crystal	ECS-3225S	20MHz	-40°C ~ 85°C
ECS-3225S18-240-FN-TR	ECS Crystal	ECS-3225S	24MHz	-40°C ~ 85°C
ECS-3225S18-240-FN-TR	ECS Crystal	ECS-3225S	24MHz	-40°C ~ 85°C
ECS-3225S18-240-FN-TR	ECS Crystal	ECS-3225S	24MHz	-40°C ~ 85°C
ECS-3225S18-270-FN-TR	ECS Crystal	ECS-3225S	27MHz	-40°C ~ 85°C
ECS-3225S18-270-FN-TR	ECS Crystal	ECS-3225S	27MHz	-40°C ~ 85°C
ECS-3225S18-270-FN-TR	ECS Crystal	ECS-3225S	27MHz	-40°C ~ 85°C
ECS-3225S18-320-FN-TR	ECS Crystal	ECS-3225S	32MHz	-40°C ~ 85°C

ECS-3225MV-250-BN-TR晶體振蕩器是LoRa WAN的理想選擇

特點:
小體積尺寸：3.2x2.5毫米的尺寸
4焊盤配置有源晶振
多伏特1.6V至3.63V
兼容1.8V、2.5V或3.3V電源
低抖動:1 pS
-BN選項:50 ppm，-40℃至+85℃
-CN選項:25 ppm，-40℃至+85℃
符合RoHS 2和REACH標準
MSL 1號
鉛飾面金
應用：物聯網，存儲設備，商業現貨(COTS)，航行，醫療(非維持生命)，移動設備，產業的，無線設備，測試設備，通用微處理器，IP攝像機

ECS-3225MV

圖片	晶振系列	頻率	頻率穩定性	工作溫度
	ECS-3225MV-120-BN-TR	12 MHz	±50ppm	-40°C ~ +85°C
	ECS-3225MV-160-CN-TR	16 MHz	±25ppm	-40°C ~ +85°C
	ECS-3225MV-250-BN-TR	25 MHz	±50ppm	-40°C ~ +85°C
	ECS-3225MV-250-CN-TR	25 MHz	±25ppm	-40°C ~ +85°C
	ECS-3225MV-260-CN-TR	26 MHz	±25ppm	-40°C ~ +85°C
	ECS-3225MV-320-BN-TR	32 MHz	±50ppm	-40°C ~ +85°C
