X1G004171028000是一款用于物聯網應用的晶體振蕩器

來源：億金電子查看手機網址

掃一掃!

X1G004171028000是一款用于物聯網應用的晶體振蕩器

掃一掃!

瀏覽：- 發布日期：2022-10-13 09:41:44【大中小】

分享到：

愛普生晶振是國內外都比較出名使用又多的晶振品牌，無論是從晶振品牌的知名度以及石英晶振的產品質量來講都是得到廣大使用，該產品的群體所認可的。無論是KHZ晶振，還是MHZ晶振愛普生晶振公司都會涉及到，小到1610尺寸晶振，大到8045貼片晶振。它們正隨著市場的需求從而改進產品的封裝尺寸。

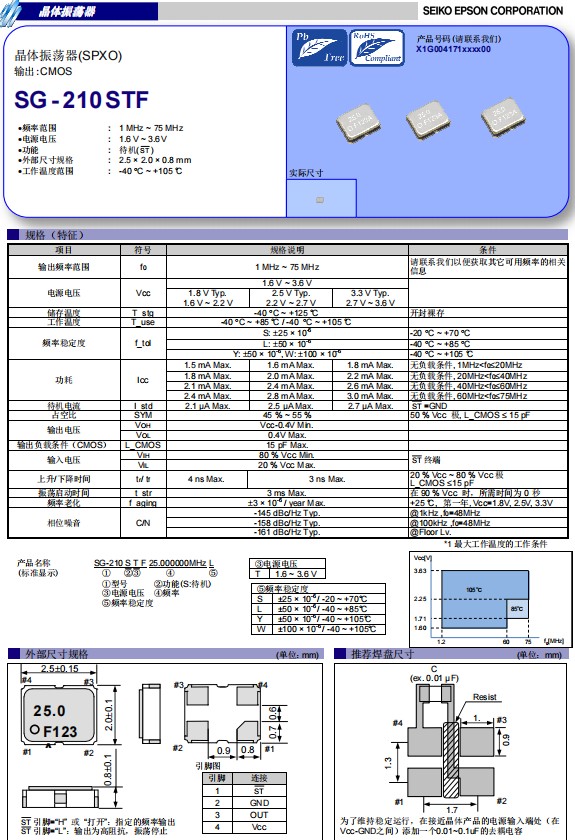

愛普生晶振SG-210STF是一款CMOS輸出石英晶體振蕩器(SPXO)系列。小體積尺寸2.5x2.0mm四腳貼片晶振，有源晶振，1.6V至3.63V的寬工作電壓和-40℃至+105℃的寬工作溫度范圍，頻率范圍1MHz至75MHz，具有超小型，輕薄型，低抖動，低功耗，耐熱及耐環境特性，非常適合物聯網，可穿戴設備，醫療，數據中心，存儲，工業自動化等各種應用。

X1G004171028000是一款用于物聯網應用的晶體振蕩器

產品編碼	型號	頻率	尺寸	輸出波	電源電壓	工作溫度
X1G004171016300	SG-210STF	12.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-20 to 70°C
X1G004171019700	SG-210STF	24.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G004171020600	SG-210STF	40.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G004171021800	SG-210STF	20.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-20 to 70°C
X1G004171023800	SG-210STF	20.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G004171024400	SG-210STF	26.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G004171025000	SG-210STF	27.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G004171028000	SG-210STF	12.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G004171029900	SG-210STF	4.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G004171030000	SG-210STF	33.330000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G004171036500	SG-210STF	10.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G004171036600	SG-210STF	12.288000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G004171036700	SG-210STF	14.745600MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G004171036800	SG-210STF	24.576000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G004171036900	SG-210STF	48.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G004171037000	SG-210STF	72.000000MHz	2.50x2.00x0.80mm	CMOS	1.710 to 3.630V	-20 to 70°C
X1G004171037100	SG-210STF	72.000000MHz	2.50x2.00x0.80mm	CMOS	2.250 to 3.630V	-40 to 105°C

產品編碼	型號	進口晶振	尺寸	輸出波	電源電壓	工作溫度
X1G004171000900	SG-210STF	4.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171001500	SG-210STF	8.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171001600	SG-210STF	10.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171001800	SG-210STF	12.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171001900	SG-210STF	12.288000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171002500	SG-210STF	14.745600MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171002700	SG-210STF	16.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171002900	SG-210STF	20.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171003100	SG-210STF	24.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171003200	SG-210STF	24.576000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171003300	SG-210STF	25.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171003400	SG-210STF	26.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171003500	SG-210STF	27.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171004000	SG-210STF	32.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171004500	SG-210STF	40.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C

X1G004171028000是一款用于物聯網應用的晶體振蕩器

石英晶體振蕩器優點：
1、石英鐘走時準、耗電省、經久耐用為其最大優點。不論是老式石英鐘或是新式多功能石英鐘都是以石英晶體振蕩器為核心電路，其頻率精度決定了電子鐘表的走時精度。
2、隨著電視技術的發展，近來彩電多采用500kHz或503kHz的晶體振蕩器作為行、場電路的振蕩源，經1/3的分頻得到15625Hz的行頻，其穩定性和可靠性大為提高。而且晶振價格便宜，更換容易。
3、在通信系統產品中，石英晶體振蕩器的價值得到了更廣泛的體現，同時也得到了更快的發展。許多高性能的石英晶振主要應用于通信網絡、無線數據傳輸、高速數字數據傳輸?shù)取?/span>
