科技發展對差分晶振的使用日益增多,各大晶振品牌紛紛推出差分晶體振蕩器,比如我們所熟悉的KDS晶振,京瓷晶振,NDK晶振,愛普生晶振,IDT晶振等知名品牌.我們都知道差分晶振除了有普通晶振有的功能外,最大的不同就是輸出的方式是差分信號.

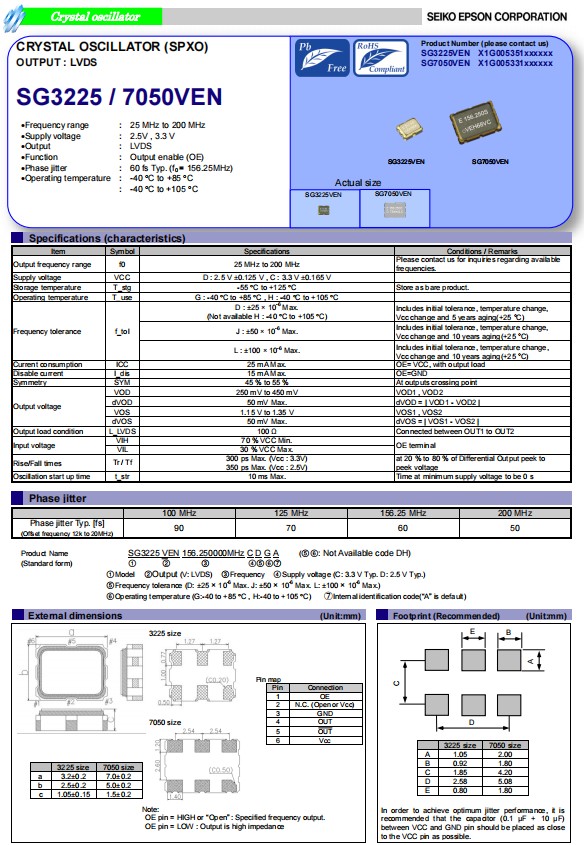

日本愛普生晶振SG3225VEN，是一款LVDS輸出差分晶振，小體積晶振尺寸3.2x2.5mm有源晶振，石英晶體振蕩器，六腳貼片晶振，電源電壓:2.5V，3.3V，頻率范圍:25MHz至200MHz，工作溫度可達到-40℃至+85℃以及-40℃至+105℃，該產品具有超小型，輕薄型，低電源電壓，低抖動，低耗能，低損耗，低功耗等特點，被廣泛用于通訊設備，機頂盒，光端機，安防設備及各種頻率控制設備上.

安防設備應用晶振SG3225VEN差分晶振X1G005351007600

產品編碼	型號	頻率	貼片晶振	輸出波	電源電壓	工作溫度
X1G005521000100	SG3225VEN	212.500000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005521000200	SG3225VEN	312.500000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005521000500	SG3225VEN	322.265600MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005521000900	SG3225VEN	333.330000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005521001100	SG3225VEN	245.760000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005521100700	SG3225VEN	322.265625MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005351007600	SG3225VEN	26.000000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005351007700	SG3225VEN	148.500000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005351007800	SG3225VEN	50.000000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005351007900	SG3225VEN	155.520000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005351100200	SG3225VEN	125.000000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005351100400	SG3225VEN	100.000000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005351100600	SG3225VEN	156.250000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005351100700	SG3225VEN	125.000000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 105°C
X1G005351100800	SG3225VEN	100.000000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C

X1G005351100900	SG3225VEN	125.000000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005351101000	SG3225VEN	25.000000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005351101100	SG3225VEN	72.000000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005351101200	SG3225VEN	156.250000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 105°C
X1G005351101300	SG3225VEN	133.333000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005351101400	SG3225VEN	50.000000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005351101500	SG3225VEN	50.000000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 105°C
X1G005351101600	SG3225VEN	100.000000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 105°C
X1G005351101800	SG3225VEN	156.242187MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005351101900	SG3225VEN	200.000000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005351102000	SG3225VEN	148.351648MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005351102100	SG3225VEN	148.500000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C

安防設備應用晶振SG3225VEN差分晶振X1G005351007600

常用的差分石英晶體振蕩器輸出均屬于方波，輸出功率比較大，驅動能力較強，但諧波分量非常多。這兩種輸出模式是差分晶振的輸出邏輯，兩者的相位剛好相反，因此它們能夠組成更高性能的系統，同時還能消除共模噪聲。差分輸出（例如PECL，LVDS，HCSL) 可以滿足高速數據傳輸，應用于高速計算機，數字通信系統，雷達，測量儀器，頻率合成器等。
