低功耗手機對講機專用晶振X1G005591001900

來源：億金電子查看手機網址

掃一掃!

掃一掃!

瀏覽：- 發布日期：2022-09-21 10:19:11【大中小】

分享到：

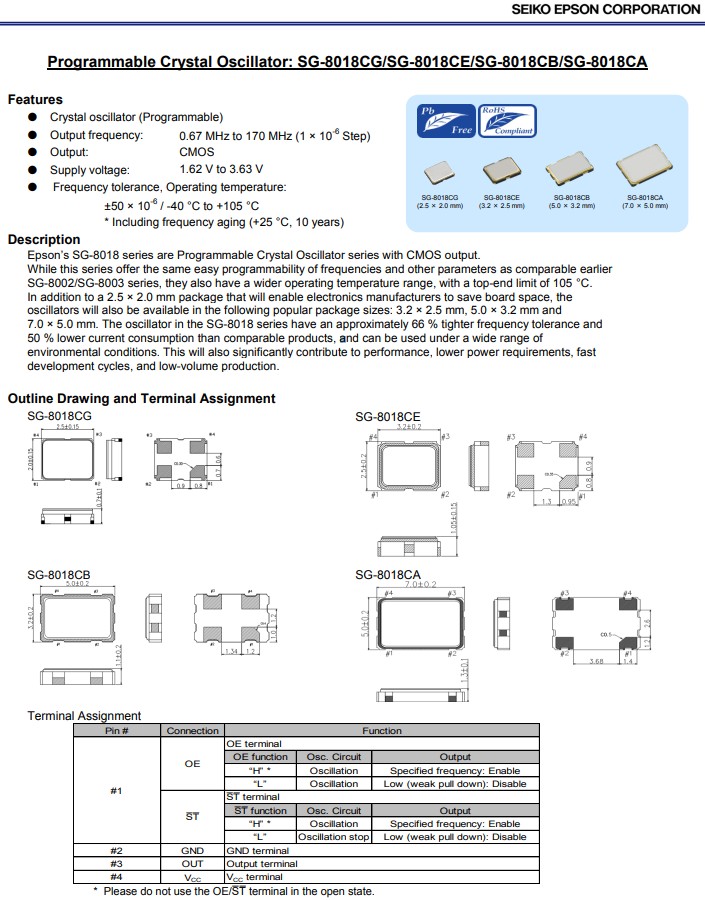

日本愛普生晶振SG-8018系列，是一款CMOS輸出愛普生可編程晶體振蕩器，提供以下常見封裝尺寸:3.2x2.5mm、5.0x3.2mm和7.0x5.0mm四腳貼片晶振，有源晶振，輸出頻率范圍:0.67MHz至170MHz，電源電壓:1.62V至3.63V，頻率容差、工作溫度: 50x10-6/-40℃至+105℃，*包括頻率老化(+25℃，10年)，其中SG8018CE型號編碼X1G005591001900，頻率為24.000MHz，± 50 ppm，小體積尺寸3.2x2.5mm有源晶振，工作溫度范圍-40℃至+105℃，可編程時鐘OSC。具有超小型，輕薄型，低電源電壓，低抖動，低功耗，低損耗，低耗能等特點，該產品應用于鐘表、數碼產品、車載數碼、手機對講機、數碼相機、MID平板電腦，光電技術等通訊設備及各種頻率控制設備。

低功耗手機對講機專用晶振X1G005591001900

貼片晶振	頻率	型號	尺寸(長寬高)	輸出波	電源電壓	工作溫度
X1G005591001100	25.000000MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591001200	25.000000MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591001300	20.000000MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591001400	20.000000MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591001500	50.000000MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591001600	50.000000MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591001700	48.000000MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591001800	48.000000MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591001900	24.000000MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591002000	24.000000MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591002100	40.000000MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591002200	40.000000MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591002300	16.000000MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591002400	16.000000MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591002500	12.000000MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591002600	12.000000MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591002700	10.000000MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591002800	10.000000MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591002900	27.000000MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591003000	27.000000MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C

X1G005591006700	6.000000MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591006800	7.680000MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591006900	74.250000MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591007000	88.888000MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591007100	88.888000MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591007200	12.500000MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591007300	148.500000MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591007400	74.250000MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591007500	57.272720MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591007600	37.125000MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591007700	19.200000MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591007800	6.005284MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591007900	57.209760MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591008000	10.000000MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591008100	133.000000MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591008200	32.400000MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591008300	22.579200MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591008400	44.236800MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591008500	1.000000MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591008600	4.915200MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591008700	1.843200MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591008800	33.333000MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591008900	56.602205MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591009000	36.810000MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591009200	16.384000MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005591009300	19.922944MHz	SG-8018CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630V	-40 to 105°C

低功耗手機對講機專用晶振X1G005591001900

愛普生可編程振蕩器的優勢特點自然是其本身參數可以接受定制，既然是可編程的晶體振蕩器就意味著其頻點參數是可以根據客戶的需求定制，從頻點、工作電壓到頻率穩定度等參數都可以定制。

在購買和選擇具體品牌的可編程晶振之前自然應該了解下其特性，其中不可忽視的就是很多晶振都要面對的氣密性問題，因為可編程晶振是采用全自動化的半導體工藝打造的，所以完全不存在氣密性問題而且還具備永不停振的優勢。很多人容易把可編程晶振和溫補晶振弄混淆，其實就是因為可編程晶振本身也具備溫度自動補償功能，除此之外低抖動和低功耗以及耐高溫高壓等特點讓其成為手機對講機以及數碼相機等各種精密設備中不可缺少的。
