小體積晶振X1G005321002100支持CMOS輸出晶體振蕩器

來源：億金電子查看手機網址

掃一掃!

掃一掃!

瀏覽：- 發布日期：2022-09-22 10:13:00【大中小】

分享到：

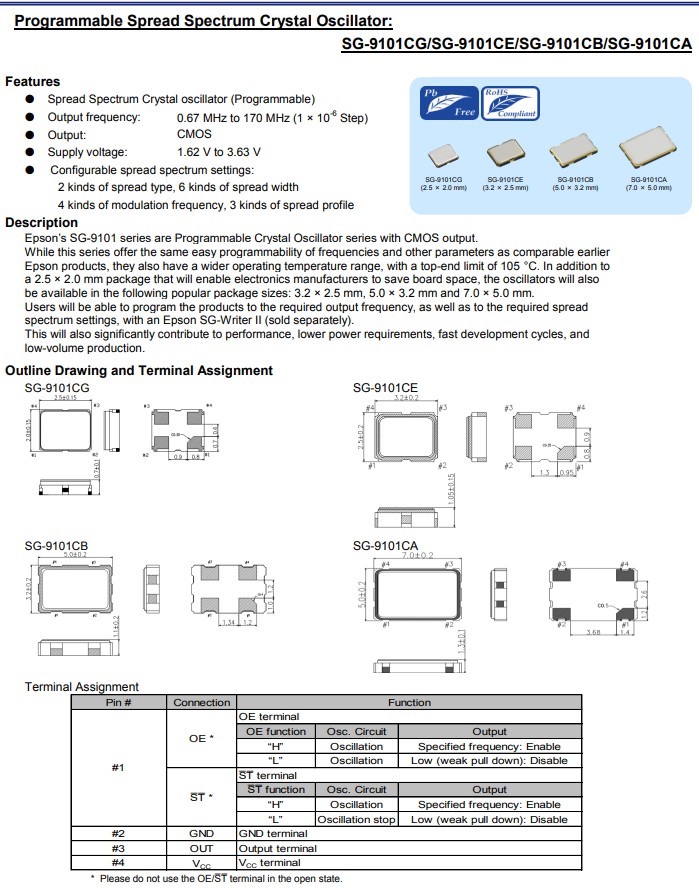

愛普生晶振公司為市場提供了小巧，精確的可編程振蕩器，開發新產品系列晶振SG-9101，具有更寬的工作溫度范圍和50％的電流消耗，該系列有四個型號SG-9101CG，SG-9101CE，SG-9101CB，SG-9101CA四腳貼片晶振，封裝尺寸分別為:2.5x2.0mm，3.2x2.5mm、5.0x3.2mm和7.0x5.0mm有源晶振，支持CMOS輸出，電源電壓:1.62V至3.63V，輸出頻率:0.67MHz至170MHz，用戶可以使用SG-Writer II*1編程工具對SG-9101系列和擴頻振蕩器進行編程，從而降低SG-9101系列中的光譜EMI輻射。愛普生可編程晶體振蕩器SG-9101系列具有小體積輕薄型，低電源電壓，低抖動，低功耗，低相位噪聲等特點，被廣泛用于物聯網通訊、鐘表、車載導航、智能手機、對講機、數碼產品，光電技術等通訊設備及各種頻率控制設備。

小體積晶振X1G005321002100支持CMOS輸出晶體振蕩器

產品編碼	石英晶振	型號	尺寸(長寬高)	輸出波	電源電壓	工作溫度
X1G005321001100	27.000000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005321001200	12.000000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005321001300	40.000000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005321001400	25.000000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005321001500	25.000000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005321001600	66.666000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005321001700	66.666000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005321001800	40.000000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005321001900	74.250000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005321002000	12.000000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005321002100	12.000000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005321002200	12.000000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005321002300	12.000000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005321002400	12.000000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005321002500	12.000000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005321002600	20.000000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005321002700	12.000000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005321002800	40.000000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005321002900	80.000000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005321003000	25.000000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005321003100	25.000000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005321003200	15.728640MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005321003300	37.125000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005321003400	24.000000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005321003500	37.125000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 85 °C

X1G005321003600	25.000000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005321003700	33.333000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005321003800	33.333000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005321003900	26.000000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005321004000	24.000000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005321004100	10.000000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005321004200	25.000000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005321004300	24.000000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005321004600	100.000000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005321004700	49.152000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005321004800	12.288000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005321004900	48.000000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005321005000	32.000000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005321005100	25.000000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005321005200	25.000000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005321005300	25.000000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005321005600	12.000000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005321005700	15.000000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005321005800	34.000000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005321005900	148.500000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005321006000	34.000000MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005321006100	11.289600MHz	SG-9101CE	3.20x2.50x1.20mm	CMOS	1.620 to 3.630 V	-40 to 85 °C

小體積晶振X1G005321002100支持CMOS輸出晶體振蕩器

可編程晶振，很多人依然陌生的一頭霧水，其實在各種精密的電子儀器上，可編程晶振已得到廣泛的應用了。在普及可編程晶振的時候，也有人對這款‘新型產品’有不少的知識盲區，例如可編程晶振無源和有源晶振都會燒錄嗎？可編程現在被普及且廣泛使用的只有有源晶振，因?yàn)榭删幊叹д窨啥ㄖ扑灾С址庋b標準也較多，從國際封裝QFN封裝到7050、5032、3225、2520甚至更小的2016，客戶都可以按需選擇，同理也支持1.8V、 2.5V、2.8V、3.0V、3.3V等多種工作電壓匹配。還有客戶會把可編程晶振和溫補晶振混淆，其實可編程晶振內部集成了溫度補償電路，本身也具備溫度自動補償功能。
