溫補石英晶體振蕩器X1G005391001900為通訊模塊專用晶振
愛普生是日本有名的頻率元件制造商,專業生產銷售石英晶振,石英晶體振蕩器,貼片晶振,晶體濾波器等.發展至今已是國際有名的晶體元件制造商,致力于為客戶提供高性能,高可靠,高品質晶振產品。

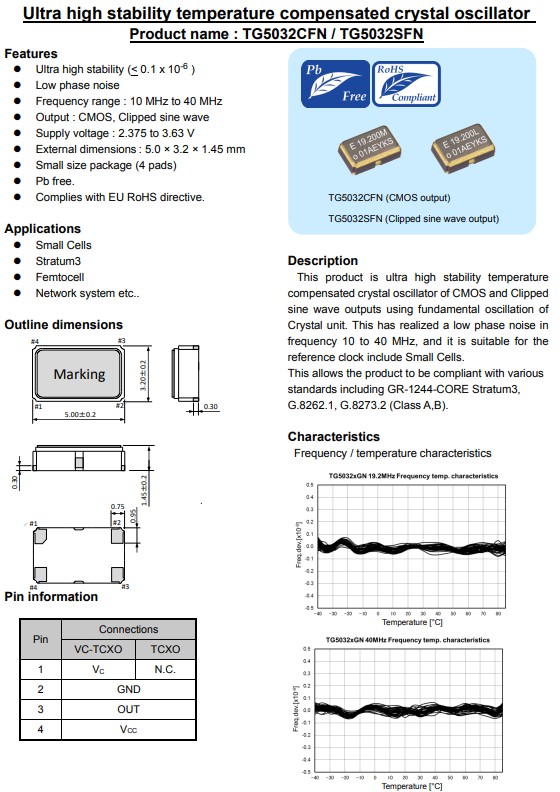

日本進口愛普生晶振TG5032CFN，是一款超高穩定性溫補晶振(TCXO)，支持CMOS輸出電平，四腳貼片晶振，小體積晶振尺寸5.0x3.2mm有源晶振，頻率范圍10MHz至40MHz，電源電壓2.375V至3.63V，具有小體積輕薄型，低電源電壓，低功耗，低抖動，低損耗，低耗能，低相位噪聲等特點，被廣泛用于移動通信，汽車電子，智能家居，智能手機，網絡設備，消費電子，可穿戴設備等。
溫補石英晶體振蕩器X1G005391001900為通訊模塊專用晶振
| 產品編碼 |
  型號
|
  頻率
|
  尺寸
|
  輸出波
|
  電源電壓
|
  精度
|
  工作溫度
|
| X1G005391000600 | TG5032CFN | 19.200000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391000700 | TG5032CFN | 40.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391000800 | TG5032CFN | 25.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391000900 | TG5032CFN | 10.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391001000 | TG5032CFN | 10.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391001100 | TG5032CFN | 26.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391001500 | TG5032CFN | 20.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391001600 | TG5032CFN | 25.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391001700 | TG5032CFN | 19.200000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391001800 | TG5032CFN | 26.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391001900 | TG5032CFN | 25.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391002000 | TG5032CFN | 26.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391002100 | TG5032CFN | 10.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391002200 | TG5032CFN | 40.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391002300 | TG5032CFN | 24.576000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391002500 | TG5032CFN | 10.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391002600 | TG5032CFN | 20.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391002700 | TG5032CFN | 40.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391003000 | TG5032CFN | 19.440000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391003100 | TG5032CFN | 40.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391003200 | TG5032CFN | 40.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391003300 | TG5032CFN | 30.720000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391003400 | TG5032CFN | 20.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391003500 | TG5032CFN | 25.600000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to +85°C |
| X1G005391003600 | TG5032CFN | 30.720000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to +85°C |
| X1G005391003700 | TG5032CFN | 15.360000MHz | 5.00x3.20x1.50mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to +85°C |
石英晶體振蕩器（以下簡稱晶振）是利用石英晶體壓電效應而制成的器件，它的作用是輸出高精度和高穩定度的脈沖信號，為整個電路提供時序基準。我們知道，現在電路中有越來越多的時序電路，它們之間的協同運行必須要有一個時間基準，才能統一一致的行動，就像電視劇里特種行動小隊在出發前都要對下表一樣，晶振在系統中起的作用就如同隊長的手表，它如果穩定性或準確性不好的話，那整個系統就會錯誤頻出，故障率很高。所以又把晶振稱為單板的“心臟”。 石英晶體振蕩器是由品質因數Q極高的石英晶體諧振器和振蕩電路組成。晶體的品質因數、切割取向、晶體振子的結構及電路形式等，共同決定振蕩器的性能。國際電工委員會（IEC）將石英晶體振蕩器分為4類：普通晶體振蕩器（SPXO），電壓控制式晶體振蕩器（VCXO），溫度補償式晶體振蕩器（TCXO），恒溫控制式晶體振蕩器（OCXO）。目前發展中的還有數字補償式晶體振蕩器（DCXO）以及混合式的VOCXO振蕩等。
