無源貼片晶振Q22FA23V0008600適用于平板電腦應用
無源晶振就是石英晶體諧振器的別稱，英文名（crystal），無源晶振沒有電壓的問題，信號電平是可變的，主要用在各種電子線路中起產生頻率的作用。是有2個引腳的無極性元件，需要借助于時鐘電路才能產生振蕩信號，自身無法振蕩起來，分為直插式與貼片式。

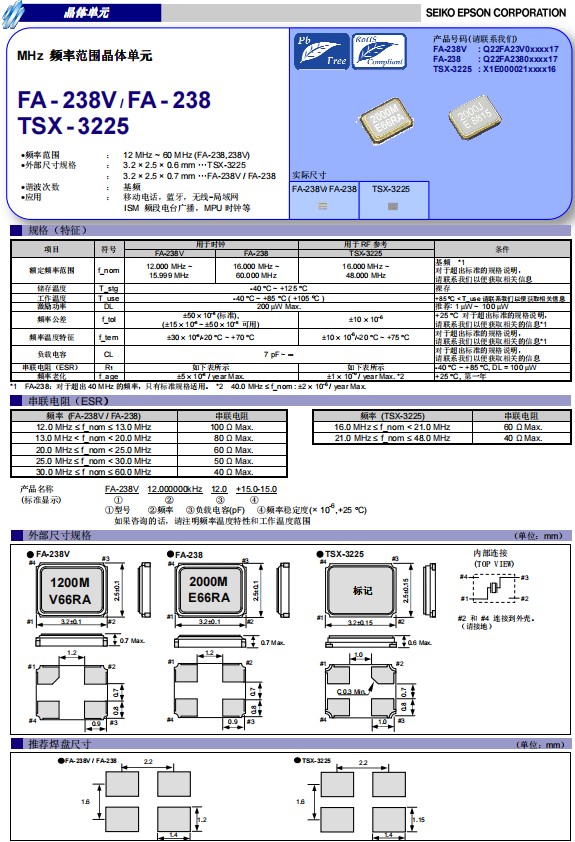

日本愛普生晶振FA-238V是一款小體積尺寸3.2x2.5mm四腳貼片晶振，無源晶振，石英晶體諧振器，FA-238V頻率范圍12MHz至15.9999MHz之間，可以在-40℃至+85℃（+105℃）溫度內穩定工作，該產品具有小體積輕薄型，耐熱、耐振、耐沖擊等優良的耐環境特性，被廣泛用于移動通訊，智能手機，平板電腦，汽車電子，移動電話，無線藍牙，ISM頻段電臺廣播，MPU時鐘等.
無源貼片晶振Q22FA23V0008600適用于平板電腦應用
| 愛普生晶振 |
 尺寸
|
 型號
|
 頻率
|
 負載電容
|
 精度
|
       頻率公差
|
 工作溫度
|
| Q22FA23V0001200 | 3.2x2.5x0.7mm | FA-238V | 13.560000MHz | 12pF | +/-50ppm | +/-30ppm | -40to+80°C |
| Q22FA23V0001800 | 3.2x2.5x0.7mm | FA-238V | 12.288000MHz | 12pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0002200 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 10pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0002600 | 3.2x2.5x0.7mm | FA-238V | 13.000000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0002700 | 3.2x2.5x0.7mm | FA-238V | 14.745600MHz | 20pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0002800 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 15pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0002900 | 3.2x2.5x0.7mm | FA-238V | 13.000000MHz | 20pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0003000 | 3.2x2.5x0.7mm | FA-238V | 13.000000MHz | 20pF | +/-30ppm | +/-50ppm | -20to+60°C |
| Q22FA23V0003300 | 3.2x2.5x0.7mm | FA-238V | 12.288000MHz | 12pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0003700 | 3.2x2.5x0.7mm | FA-238V | 14.318180MHz | 20pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0004400 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 20pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0004800 | 3.2x2.5x0.7mm | FA-238V | 13.000000MHz | 7pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0005200 | 3.2x2.5x0.7mm | FA-238V | 13.560000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0006800 | 3.2x2.5x0.7mm | FA-238V | 14.318000MHz | 12pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0006900 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 10pF | +/-15ppm | +/-15ppm | -20to+70°C |
| Q22FA23V0008200 | 3.2x2.5x0.7mm | FA-238V | 14.318180MHz | 16pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0008500 | 3.2x2.5x0.7mm | FA-238V | 12.288000MHz | 8pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0008600 | 3.2x2.5x0.7mm | FA-238V | 14.745600MHz | 12pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0009500 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 16pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0010300 | 3.2x2.5x0.7mm | FA-238V | 14.318180MHz | 12.5pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0010600 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 11pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0010700 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 10pF | +/-50ppm | +/-50ppm | -40to+85°C |
| Q22FA23V0011400 | 3.2x2.5x0.7mm | FA-238V | 14.318180MHz | 18pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0011900 | 3.2x2.5x0.7mm | FA-238V | 12.500000MHz | 16pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0012300 | 3.2x2.5x0.7mm | FA-238V | 13.560000MHz | 12pF | +/-20ppm | +/-30ppm | -40to+85°C |
| Q22FA23V0013100 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 18pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0013600 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 8pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0014400 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 10pF | +/-15ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0014900 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 20pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0015000 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 10pF | +/-10ppm | +/-10ppm | -20to+70°C |
| Q22FA23V0016000 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 16pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0016200 | 3.2x2.5x0.7mm | FA-238V | 12.288000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0016400 | 3.2x2.5x0.7mm | FA-238V | 14.318180MHz | 9pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0017000 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 12pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0017800 | 3.2x2.5x0.7mm | FA-238V | 13.560000MHz | 18pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0017900 | 3.2x2.5x0.7mm | FA-238V | 12.500000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0018000 | 3.2x2.5x0.7mm | FA-238V | 14.745600MHz | 16pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0019200 | 3.2x2.5x0.7mm | FA-238V | 12.288000MHz | 10pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0019300 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 12.5pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0019500 | 3.2x2.5x0.7mm | FA-238V | 13.000000MHz | 9pF | +/-20ppm | +/-50ppm | -40to+85°C |
| Q22FA23V0019700 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 8pF | +/-15ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0020500 | 3.2x2.5x0.7mm | FA-238V | 14.745600MHz | 8pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0021000 | 3.2x2.5x0.7mm | FA-238V | 14.745600MHz | 18pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0023300 | 3.2x2.5x0.7mm | FA-238V | 14.318180MHz | 10pF | +/-20ppm | +/-20ppm | -20to+70°C |
| Q22FA23V0023500 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 9pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0023900 | 3.2x2.5x0.7mm | FA-238V | 14.318000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0024100 | 3.2x2.5x0.7mm | FA-238V | 14.318180MHz | 10pF | +/-50ppm | +/-30ppm | -40to+85°C |
| Q22FA23V0024500 | 3.2x2.5x0.7mm | FA-238V | 14.318000MHz | 16pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0024700 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 10pF | +/-20ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0025500 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 12pF | +/-20ppm | +/-20ppm | -20to+70°C |
| Q22FA23V0026600 | 3.2x2.5x0.7mm | FA-238V | 13.560000MHz | 16pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0026800 | 3.2x2.5x0.7mm | FA-238V | 12.288000MHz | 16pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0027900 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 18pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0029100 | 3.2x2.5x0.7mm | FA-238V | 14.318180MHz | 12pF | +/-15ppm | +/-30ppm | -40to+85°C |
| Q22FA23V0030700 | 3.2x2.5x0.7mm | FA-238V | 14.318180MHz | 8pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0031000 | 3.2x2.5x0.7mm | FA-238V | 14.318000MHz | 20pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0031400 | 3.2x2.5x0.7mm | FA-238V | 14.318180MHz | 10pF | +/-50ppm | +/-50ppm | -40to+85°C |
| Q22FA23V0032600 | 3.2x2.5x0.7mm | FA-238V | 14.318180MHz | 12pF | +/-10ppm | +/-23ppm | -40to+85°C |
| Q22FA23V0032700 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 12pF | +/-20ppm | +/-23ppm | -40to+85°C |
| Q22FA23V0033200 | 3.2x2.5x0.7mm | FA-238V | 14.745600MHz | 18pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0035800 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 7pF | +/-30ppm | +/-20ppm | -20to+70°C |
| Q22FA23V0036700 | 3.2x2.5x0.7mm | FA-238V | 14.318000MHz | 9pF | +/-50ppm | +/-30ppm | -20to+75°C |
| Q22FA23V0037200 | 3.2x2.5x0.7mm | FA-238V | 12.288000MHz | 18pF | +/-20ppm | +/-30ppm | -40to+85°C |
| Q22FA23V0037300 | 3.2x2.5x0.7mm | FA-238V | 14.745600MHz | 16pF | +/-50ppm | +/-30ppm | -40to+85°C |
無源貼片晶振Q22FA23V0008600適用于平板電腦應用
石英晶體諧振器是一種生活中隨處可見的電子器件，誕生于20世紀20年代初，因具有較高的品質因數及良好的頻率穩定性，被廣泛應用于航天、通信、軍事等工業領域。顧名思義，制造石英晶體諧振器的原材料就是石英，一種非常重要的壓電材料。其主要特征是其原子或分子有規律排列，反映在宏觀上是外形的對稱性，在電場的作用下，晶體內部產生應力而形變，從而產生機械振動，獲得特定的頻率。
