低相位抖動差分晶振X1G005221003400滿足產品低消耗電流的特點

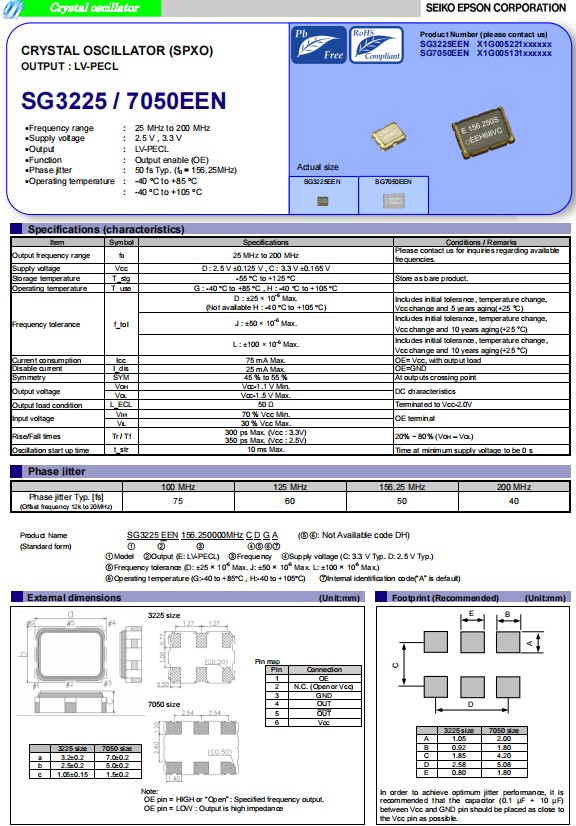

日本愛普生晶振SG3225EEN是一款小體積尺寸3.2x2.5mm六腳貼片晶振，頻率范圍可提供25M至200MHZ任意一頻點，具有低電源電壓，滿足產品低消耗電流的特點。差分晶振分為LVDS，LV-PECL，HCSL三態輸出模式，愛普生SG3225EEN晶振則是LV-PECL輸出差分晶振，愛普生SG3225EEN差分晶體振蕩器，高品質，滿足不同產品需求可提供頻率穩定偏差+-20PPM，+-50PPM，+-100PPM多種選擇。低消耗電流，工作溫度可達到-40℃至+85℃以及-40℃至+105℃，具有低相位抖動。在電源電壓最低時，震蕩啟動時間所需時間僅0秒。
低相位抖動差分晶振X1G005221003400滿足產品低消耗電流的特點
| 產品編碼 |
 型號
|
 頻率
|
 石英晶振
|
 輸出波
|
 電源電壓
|
 工作溫度
|
| X1G005221000100 | SG3225EEN | 100.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221000200 | SG3225EEN | 125.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221000300 | SG3225EEN | 125.003125MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221000400 | SG3225EEN | 155.520000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221000500 | SG3225EEN | 156.250000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221000700 | SG3225EEN | 156.253906MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221000800 | SG3225EEN | 156.250000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221001300 | SG3225EEN | 100.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221001400 | SG3225EEN | 200.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221001800 | SG3225EEN | 100.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221001900 | SG3225EEN | 50.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221002100 | SG3225EEN | 125.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 105°C |
| X1G005221002300 | SG3225EEN | 25.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221002400 | SG3225EEN | 166.015625MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221002800 | SG3225EEN | 156.250000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 105°C |
| X1G005221003000 | SG3225EEN | 25.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221003100 | SG3225EEN | 50.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221003200 | SG3225EEN | 160.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221003300 | SG3225EEN | 200.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221003400 | SG3225EEN | 125.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221003600 | SG3225EEN | 54.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 105°C |
| X1G005221003700 | SG3225EEN | 100.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 105°C |
| X1G005221003800 | SG3225EEN | 25.000625MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221003900 | SG3225EEN | 170.016000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221004200 | SG3225EEN | 163.387607MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221004300 | SG3225EEN | 25.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 105°C |
| X1G005221004400 | SG3225EEN | 100.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221004800 | SG3225EEN | 156.250000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 105°C |
| X1G005221005100 | SG3225EEN | 100.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 105°C |
| X1G005221005400 | SG3225EEN | 146.370000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221005500 | SG3225EEN | 150.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221005600 | SG3225EEN | 155.520000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 105°C |
| X1G005221100100 | SG3225EEN | 100.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.375 to 2.625V | -40 to 85°C |
| X1G005221100200 | SG3225EEN | 125.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.375 to 2.625V | -40 to 85°C |
| X1G005221100300 | SG3225EEN | 156.250000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.375 to 2.625V | -40 to 85°C |
| X1G005221100500 | SG3225EEN | 156.250000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.375 to 2.625V | -40 to 105°C |
| X1G005221100700 | SG3225EEN | 156.250000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.375 to 2.625V | -40 to 85°C |
| X1G005221100800 | SG3225EEN | 156.253906MHz | 3.20x2.50x1.20mm | LV-PECL | 2.375 to 2.625V | -40 to 85°C |
| X1G005221101000 | SG3225EEN | 50.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.375 to 2.625V | -40 to 85°C |
低相位抖動差分晶振X1G005221003400滿足產品低消耗電流的特點
差分晶振具有低電平,低抖動，低功耗等特性。差分晶振作為目前行業中高要求、高技術石英晶體振蕩器，具有相位低、損耗低的特點。因此也被稱之為“低抖動振蕩器，低抖動石英晶振，低相位晶振，低損耗晶振”。
