愛普生FA-128晶振編碼Q22FA1280001100具有小體積輕薄型穩定性能高

來源：億金電子查看手機網址

掃一掃!

愛普生FA-128晶振編碼Q22FA1280001100具有小體積輕薄型穩定性能高

掃一掃!

瀏覽：- 發布日期：2022-08-23 11:19:20【大中小】

分享到：

愛普生品牌系列MHz的石英貼片晶振,目前占據了中國市場進口晶25％的份額,品牌質量,貨期,品種,品質是廣大用戶有目共睹,最早期從MP3，MP4,收音機模塊啟用開始,在到國內外各大知名品牌手機,最后應用到國內山寨手機市場,幾乎占據80％的手機行業晶振類別,產品本身特點是體積小,耐高溫,穩定性能高,排帶包裝,應用自動貼片方便.

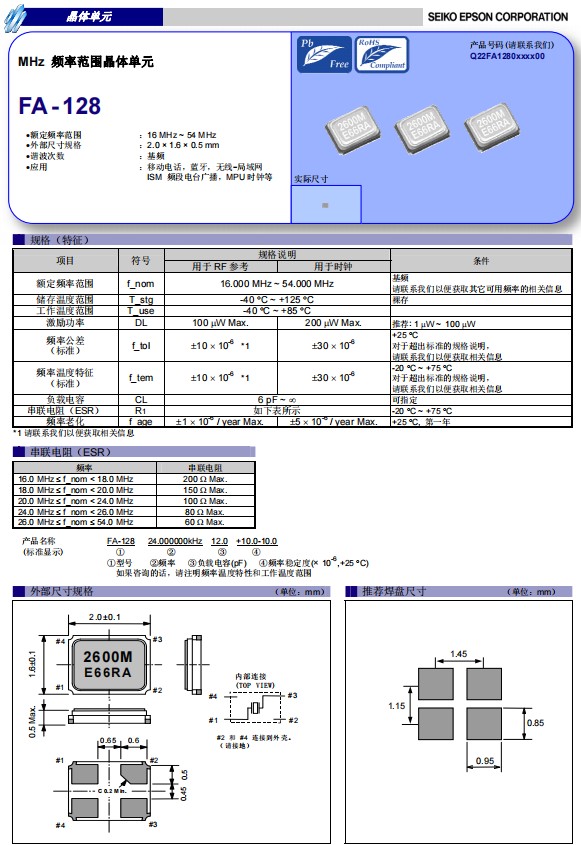

愛普生晶振FA-128，小體積尺寸:2.0x1.6mm無源晶振，頻率范圍:16MHz至54MHz，四腳貼片晶振，石英晶體諧振器，頻率容差(標準):±10x10-6/±30x10-6(@+25℃)，作為要求高精度的通信模塊的參考時鐘，以及作為要求小型化的應用(TWS(真正的無線立體聲)、智能手表等)的無線通信和微型計算機的時鐘。).

愛普生FA-128晶振編碼Q22FA1280001100具有小體積輕薄型穩定性能高

Product Number	愛普生晶振	Model	Frequency	CL Value	Freq.tol. @+25°C	Freq.tol./Temp.range	Temperature range
Q22FA1280000200	2 x 1.6 x 0.5mm	FA-128	48.000000 MHz	12 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C
Q22FA1280000700	2 x 1.6 x 0.5mm	FA-128	38.400000 MHz	10 pF	+/-15 ppm	+/-15 ppm	-20 to +85 °C
Q22FA1280000800	2 x 1.6 x 0.5mm	FA-128	27.000000 MHz	10 pF	+/-30 ppm	+/-30 ppm	-20 to +70 °C
Q22FA1280001000	2 x 1.6 x 0.5mm	FA-128	38.400000 MHz	10 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q22FA1280001100	2 x 1.6 x 0.5mm	FA-128	26.000000 MHz	10 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q22FA1280001300	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	16 pF	+/-30 ppm	+/-30 ppm	-25 to +70 °C
Q22FA1280001400	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	16 pF	+/-30 ppm	+/-30 ppm	-40 to +85 °C
Q22FA1280001800	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	12 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q22FA1280002000	2 x 1.6 x 0.5mm	FA-128	26.000000 MHz	9 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q22FA1280002100	2 x 1.6 x 0.5mm	FA-128	27.120000 MHz	10 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q22FA1280002200	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	10 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q22FA1280002400	2 x 1.6 x 0.5mm	FA-128	26.000000 MHz	12 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q22FA1280002500	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	8 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q22FA1280002600	2 x 1.6 x 0.5mm	FA-128	26.000000 MHz	8 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q22FA1280003000	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	12 pF	+/-30 ppm	+/-30 ppm	-20 to +70 °C
Q22FA1280003100	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	18 pF	+/-30 ppm	+/-30 ppm	-20 to +75 °C
Q22FA1280003400	2 x 1.6 x 0.5mm	FA-128	27.120000 MHz	8 pF	+/-15 ppm	+/-15 ppm	-30 to +70 °C
Q22FA1280003500	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	10 pF	+/-30 ppm	+/-30 ppm	-20 to +75 °C
Q22FA1280003700	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	12 pF	+/-50 ppm	+/-30 ppm	-20 to +75 °C
Q22FA1280003800	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	10 pF	+/-50 ppm	+/-30 ppm	-20 to +75 °C
Q22FA1280004300	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	8 pF	+/-10 ppm	+/-20 ppm	-40 to +85 °C
Q22FA1280004400	2 x 1.6 x 0.5mm	FA-128	48.000000 MHz	16 pF	+/-15 ppm	+/-18 ppm	-40 to +85 °C
Q22FA1280004500	2 x 1.6 x 0.5mm	FA-128	38.400000 MHz	8.5 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C

愛普生晶振面向消費和工業應用的小型通信模塊，可穿戴設備，MCU時鐘，智能手機,全球定位系統,因產品本身體積小,SMD編帶型,可應用于高性能自動貼片焊接,被廣泛應用到各種小巧的便攜式消費電子數碼時間產品,環保性能符合ROHS/無鉛標準.

愛普生FA-128晶振編碼Q22FA1280001100具有小體積輕薄型穩定性能高

Q22FA1280004700	2 x 1.6 x 0.5mm	FA-128	26.000000 MHz	12 pF	+/-10 ppm	+/-10 ppm	-20 to +85 °C
Q22FA1280005300	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	12 pF	+/-10 ppm	+/-10 ppm	-20 to +70 °C
Q22FA1280005400	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	8 pF	+/-10 ppm	+/-10 ppm	-20 to +70 °C
Q22FA1280006100	2 x 1.6 x 0.5mm	FA-128	44.000000 MHz	12 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q22FA1280006200	2 x 1.6 x 0.5mm	FA-128	48.000000 MHz	8 pF	+/-30 ppm	+/-30 ppm	-20 to +70 °C
Q22FA1280006400	2 x 1.6 x 0.5mm	FA-128	37.400000 MHz	18 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q22FA1280006700	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	7 pF	+/-30 ppm	+/-30 ppm	-20 to +75 °C
Q22FA1280007000	2 x 1.6 x 0.5mm	FA-128	27.000000 MHz	7 pF	+/-10 ppm	+/-15 ppm	-20 to +70 °C
Q22FA1280008500	2 x 1.6 x 0.5mm	FA-128	27.120000 MHz	10 pF	+/-30 ppm	+/-30 ppm	-20 to +75 °C
Q22FA1280008900	2 x 1.6 x 0.5mm	FA-128	48.000000 MHz	8 pF	+/-30 ppm	+/-50 ppm	-30 to +85 °C
Q22FA1280009000	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	12 pF	+/-10 ppm	+/-20 ppm	-40 to +85 °C
Q22FA1280009100	2 x 1.6 x 0.5mm	FA-128	27.120000 MHz	7 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C
Q22FA1280009200	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	10 pF	+/-10 ppm	+/-20 ppm	-40 to +85 °C
Q22FA1280009400	2 x 1.6 x 0.5mm	FA-128	40.000000 MHz	8 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q22FA1280009900	2 x 1.6 x 0.5mm	FA-128	40.000000 MHz	8 pF	+/-10 ppm	-11/+13 ppm	-30 to +85 °C
Q22FA1280010000	2 x 1.6 x 0.5mm	FA-128	38.400000 MHz	8 pF	+/-10 ppm	-11/+13 ppm	-30 to +85 °C
Q22FA1280010100	2 x 1.6 x 0.5mm	FA-128	40.000000 MHz	10 pF	+/-10 ppm	+/-20 ppm	-40 to +85 °C
Q22FA1280010500	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	12.5 pF	+/-30 ppm	+/-30 ppm	-20 to +75 °C
Q22FA1280010700	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	10 pF	+/-50 ppm	+/-30 ppm	-20 to +75 °C
Q22FA1280010800	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	12 pF	+/-30 ppm	+/-30 ppm	-20 to +75 °C
Q22FA1280011200	2 x 1.6 x 0.5mm	FA-128	27.120000 MHz	10 pF	+/-15 ppm	+/-15 ppm	-20 to +75 °C
Q22FA1280011400	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	9 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q22FA1280011600	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	12 pF	+/-15 ppm	+/-20 ppm	-20 to +70 °C
Q22FA1280011900	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	10 pF	+/-20 ppm	+/-20 ppm	-20 to +75 °C
Q22FA1280012000	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	8 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C

愛普生FA-128晶振編碼Q22FA1280001100具有小體積輕薄型穩定性能高

小型貼片石英晶振主要采用了，先進的晶片的拋光工藝技術，是晶體行業中石英晶片研磨技術中表面處理的最高技術，最終使晶片表面更光潔，平行度及平面度更好，大大的降低諧振電阻，使精度得到了很大的提升。改變了傳統的生產工藝，使產品在各項參數得到了很大的改良,外觀尺寸具有薄型表面貼片型石英晶體諧振器,特別適用于有小型化要求的市場領域,比如智能手機,無線藍牙,平板電腦等電子數碼產品。
