LVDS差分晶振X1G004241000100用于GPS定位器專用晶振

來源：億金電子查看手機網址

掃一掃!

掃一掃!

瀏覽：- 發布日期：2022-09-27 09:42:08【大中小】

分享到：

科技發展對差分晶振的使用日益增多,各大晶振品牌紛紛推出差分晶體振蕩器,比如我們所熟悉的KDS晶振,京瓷晶振,NDK晶振,愛普生晶振,IDT晶振等知名品牌.我們都知道差分晶振除了有普通晶振有的功能外,最大的不同就是輸出的方式是差分信號.

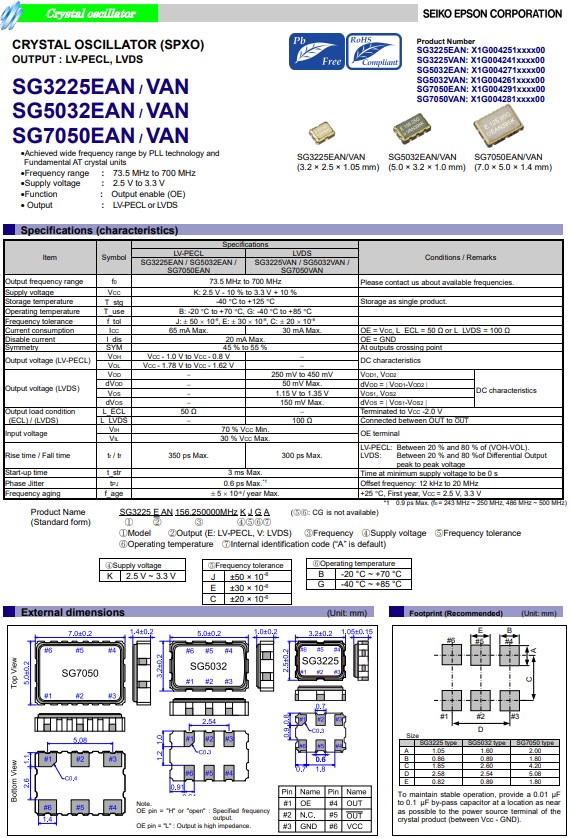

愛普生晶振SG3225VAN，是一款LVDS輸出有源差分晶體振蕩器，小體積尺寸3.2x2.5mm有源晶振，六腳貼片晶振，電源電壓:2.5V,3.3V，寬頻率范圍:73.5MHz至700MHz，具有超小型，輕薄型，低抖動，低功耗，低電源電壓，低相位噪聲，高性能，高穩定性等特點。廣泛應用于5G移動通訊設備，機頂盒，光端機，安防設備，GPS定位器，路由器/交換機，儀器儀表，光纖通信，10G以太網及各種頻率控制設備上。

LVDS差分晶振X1G004241000100用于GPS定位器專用晶振

產品編碼	型號	頻率	貼片晶振	輸出波	電源電壓	工作溫度
X1G004241000100	SG3225VAN	125.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241000400	SG3225VAN	100.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241000500	SG3225VAN	200.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241000600	SG3225VAN	400.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241000800	SG3225VAN	212.500000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241001000	SG3225VAN	148.500000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241001200	SG3225VAN	150.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241001400	SG3225VAN	156.250000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241002000	SG3225VAN	125.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241002300	SG3225VAN	100.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241002400	SG3225VAN	200.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241002500	SG3225VAN	400.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241002600	SG3225VAN	106.250000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241002800	SG3225VAN	74.250000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241002900	SG3225VAN	148.500000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241003100	SG3225VAN	150.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241003200	SG3225VAN	155.520000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241003300	SG3225VAN	156.250000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241003400	SG3225VAN	312.500000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241003900	SG3225VAN	125.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-20 to 70°C
X1G004241004200	SG3225VAN	100.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-20 to 70°C
X1G004241005200	SG3225VAN	156.250000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-20 to 70°C
X1G004241006100	SG3225VAN	100.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-20 to 70°C
X1G004241006200	SG3225VAN	200.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-20 to 70°C

X1G004241014900	SG3225VAN	322.265625MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241015000	SG3225VAN	133.333333MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241015100	SG3225VAN	108.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241015300	SG3225VAN	300.120000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241015400	SG3225VAN	160.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241015500	SG3225VAN	148.351648MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241015600	SG3225VAN	250.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241015800	SG3225VAN	243.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241016200	SG3225VAN	148.351648MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-20 to 70°C
X1G004241016300	SG3225VAN	108.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-20 to 70°C
X1G004241016400	SG3225VAN	148.351600MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-20 to 70°C
X1G004241016500	SG3225VAN	625.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241016700	SG3225VAN	144.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241016900	SG3225VAN	415.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241017100	SG3225VAN	128.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-20 to 70°C
X1G004241017200	SG3225VAN	128.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241017300	SG3225VAN	161.132812MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241017400	SG3225VAN	656.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241018000	SG3225VAN	657.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241018100	SG3225VAN	625.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241018400	SG3225VAN	148.350000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241018500	SG3225VAN	300.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-20 to 70°C
X1G004241018700	SG3225VAN	234.375000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-20 to 70°C
X1G004241018800	SG3225VAN	117.187500MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-20 to 70°C
X1G004241018900	SG3225VAN	120.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241019200	SG3225VAN	124.320000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241019300	SG3225VAN	300.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C

LVDS差分晶振X1G004241000100用于GPS定位器專用晶振

差分晶振近年來逐漸出現在我們的視線中，以及越來越多的電子工程師會更青睞差分晶振。隨著信息化的發展，差分晶振高性能、低功耗、低噪聲的優點，使其成為很多設計適合的方案。但仍有不少電子工程師對差分晶振選型上存在誤區以及盲點。差分晶振與常規晶振不同，差分晶振有不同的輸出信號，LVPECL，LVDS，HCSL是差分晶振通用的輸出信號。
